ASSEMBLY
ASSEMBLY
Parts Packed Separately In Carton
1 - Owner's Manual (not shown)
1 - Container Of Oil
1 - Hair Pin
1 - Container of Oil
1 - Hair Pin
WARNING: Always wear safety
glasses or eye shields while as,
sembling the Edger.

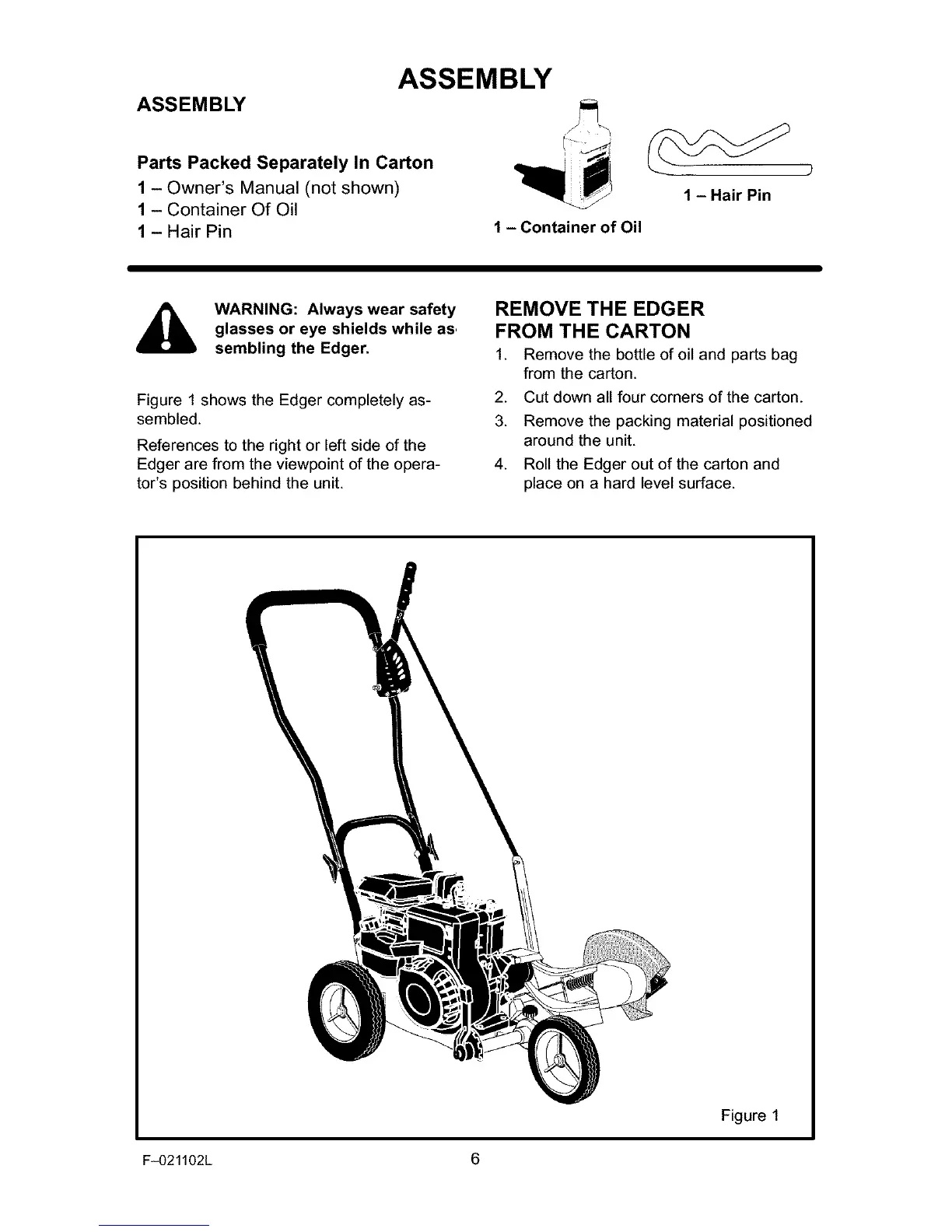

Figure 1 shows the Edger completely as-
sembled.
References to the right or left side of the
Edger are from the viewpoint of the opera-
tor's position behind the unit.
REMOVE THE EDGER
FROM THE CARTON
1. Remove the bottle of oil and parts bag
from the carton.
2. Cut down all four corners of the carton.
3. Remove the packing material positioned
around the unit.
4. Roll the Edger out of the carton and
place on a hard level surface.
Figure 1
F-021102L 6
