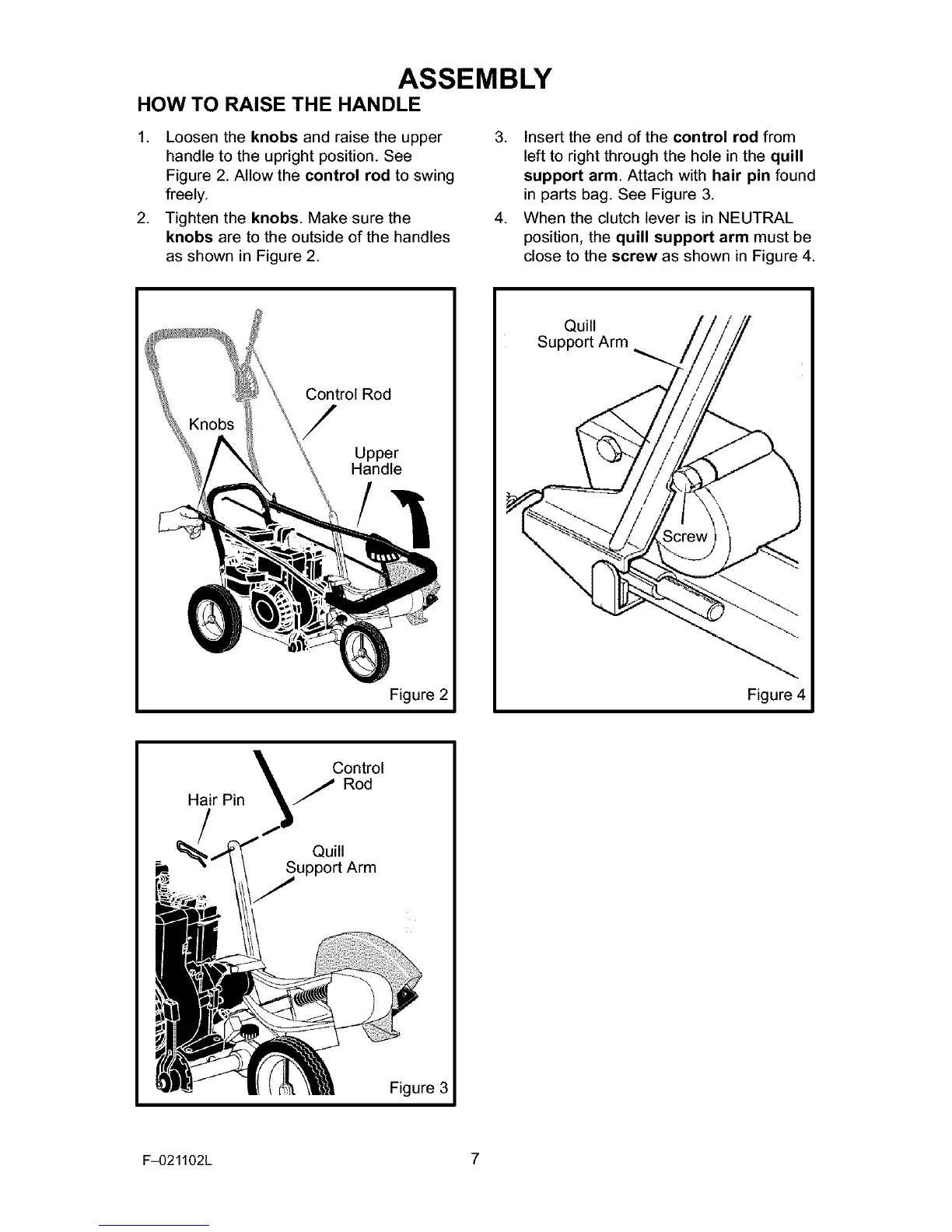

ASSEMBLY
HOW TO RAISE THE HANDLE
1. Loosen the knobs and raise the upper
handle to the upright position. See
Figure 2. Allow the control rod to swing
freely.
2. Tighten the knobs. Make sure the
knobs are to the outside of the handles
as shown in Figure 2.
3. Insert the end of the control rod from
left to right through the hole in the quill
support arm. Attach with hair pin found
in parts bag. See Figure 3.
4. When the clutch lever is in NEUTRAL
position, the quill support arm must be
close to the screw as shown in Figure 4.
Control Rod
Upper
Handle
Figure 2
Quill
Support Arm
Figure 4
_, Control
Hair Pin _J Rod
fv
Quill
t_upport Arm
Figure 3
F-021102L 7
