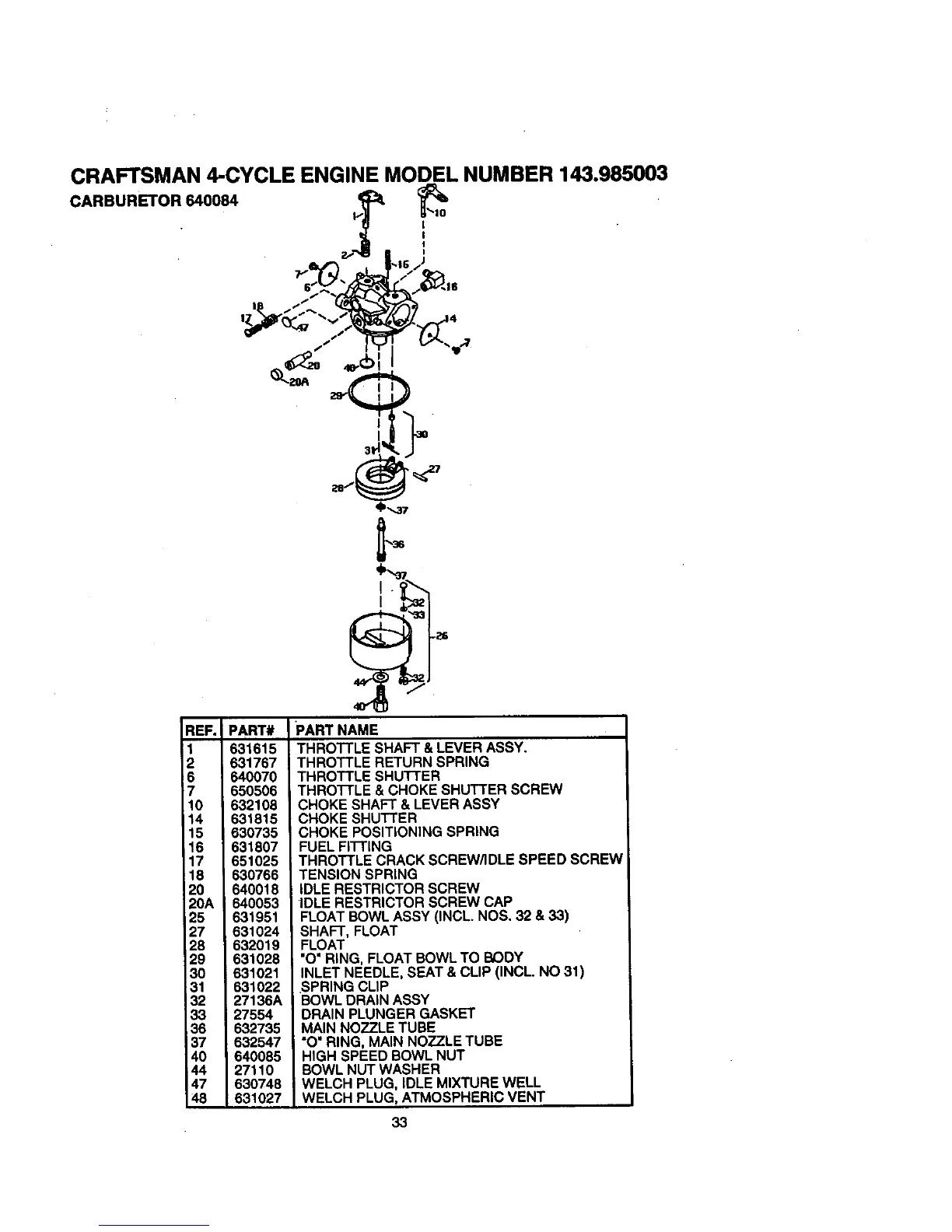

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.985003
CARBURETOR 640084 z_ _'''
REF.
1
2
_6
7
10
14
15
16
17
18
2O
20A
25
27
28
29
30
31
32
33
38
37
40
44
47
48
_D-,,,37
PART#
631615
331767
640070
650506
632108
631815
630735
631807
651025
630766
640018
640053
631951
631024
632019
631028
631021
631022
27136A
27554
632735
632547
640085
27110
630748
631027
PART NAME
THROTTLE SHAFT & LEVER ASSY.
THROTTLE RETURN SPRING
THROTTLE SHU'I-I'ER
THRO'I-I'LE & CHOKE SHUTTER SCREW
CHOKE SHAFT & LEVER ASSY
CHOKE SHUTTER
CHOKE POSITIONING SPRING
FUEL FITTING
THROTTLE CRACK SCREW/IDLE SPEED SCREW
TENSION SPRING
iDLE RESTRICTOR SCREW
IDLE RESTRICTOR SCREW CAP
FLOAT BOWL ASSY (INCL. NOS. 32 & 33)
SHAFT, FLOAT
FLOAT
"O' RING, FLOAT BOWL TO BODY
INLET NEEDLE, SEAT & CLIP (INCL. NO 31)
.SPRING CLIP
BOWL DRAIN ASSY
DRAIN PLUNGER GASKET
MAIN NOZZLE TUBE
"O' RING, MAIN NOZZLE TUBE
HIGH SPEED BOWL NUT
BOWL NUT WASHER
WELCH PLUG, IDLE MIXTURE WELL
WELCH PLUG, ATMOSPHERIC VENT
33
