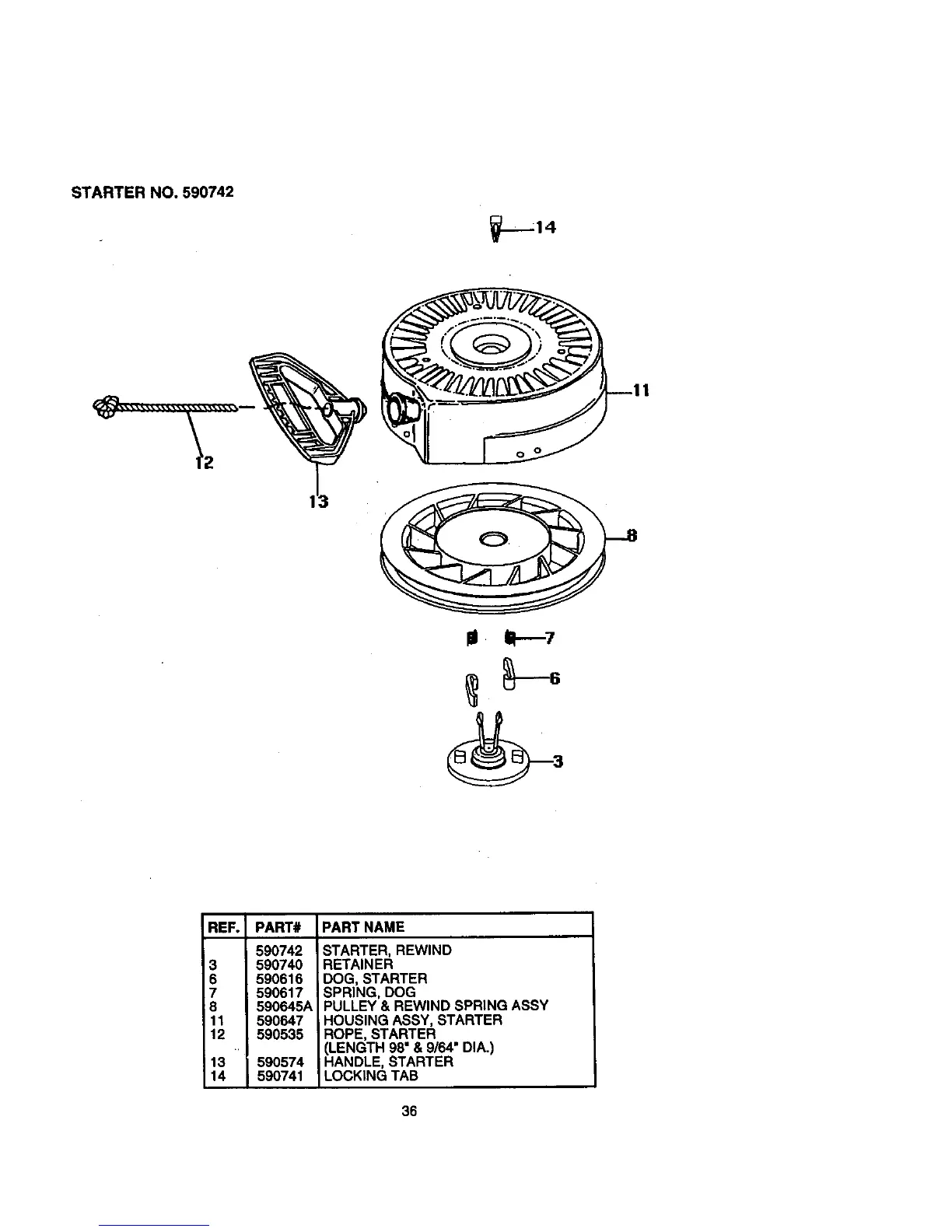

STARTER
NO.
590742
REF.
PART#
PART
NAME
590742
3
590740
6
590616
7
590617
:
8
590645A
11
590647
12
590535
13
590574
14
590741
STARTER,
REWIND
RETAINER
DOG,
STARTER
SPRING,
DOG
PULLEY
&
REWIND
SPRING
ASSY
IHOUSING
ASSY,
STARTER
ROPE,
STARTER
(LENGTH
98"&
9/64"DIA.)
HANDLE,
STARTER
LOCKING
TAB
36
35
37
Table of Contents
Table of Contents
2
Safety Rules
2
Operation
3
Contents of Parts Bag
4
Maintenance and Storage
4
Assembly
5
Tools Required for Assembly
5
To Remove Snow Tractor from Carton
6
To Install the Upper Handle and Crank Assembly
6
To Install Shifter Lever Knob
7
To Assembly Snow Chute
7
To Check/Adjust Clutch Control Cables
7
Controls List
8
How to Set up
8
Checklist
8
Components View
9
Symbols Meaning
9
Product View and Parts Identification
9
How to Use
10
To Use Wheel Lockout Pin
10
To Move Forward and Backward
10
To Throw Snow
10
Fill Oil
11
Fill Gas
11
To Stop Engine
12
To Start Engine
12
Frozen Recoil Starter
13
Snow Throwing Tips
13
Specifications
14
Maintenance Schedule
14
After First Use
15
Lubrication
15
Engine Lubrication
16
Oil Recommendation
16
Spark Plug
16
Service and Adjustments
17
To Adjust Skid Height
17
To Adjust Scraper Bar
17
To Adjust the Clutch Control Cables
17
Auger Drive Belt Adjustment
18
Traction Drive Belt Adjustment
18
To Replace Belts
18
To Adjust the Belt Guides
19
To Adjust the Friction Wheel
19
To Replace Friction Wheel
20
To Replace Auger Shear Bolt
20
To Adjust Carburetor
21
To Adjust or Replace the Spark Plug
21
Storage
22
Troubleshooting
23
Electric Start Assembly View and Parts List
24
Engine Assembly
24
Frame Assembly View and Parts List
25
Drive Assembly View and Parts List
26
Gear Case Assembly View and Parts List
27
Auger Housing Assembly View and Parts List
28
Discharge Chute Assembly View and Parts List
29
Handle Assembly View and Parts List
30
Wheel Assembly View and Parts List
31
Chute Control Rod Assembly View and Parts List
32
Decals
32
Engine View and Parts List
33
Starter View and Parts List
36
