[.,,."_o,,_ V_IZIB]P'_"_

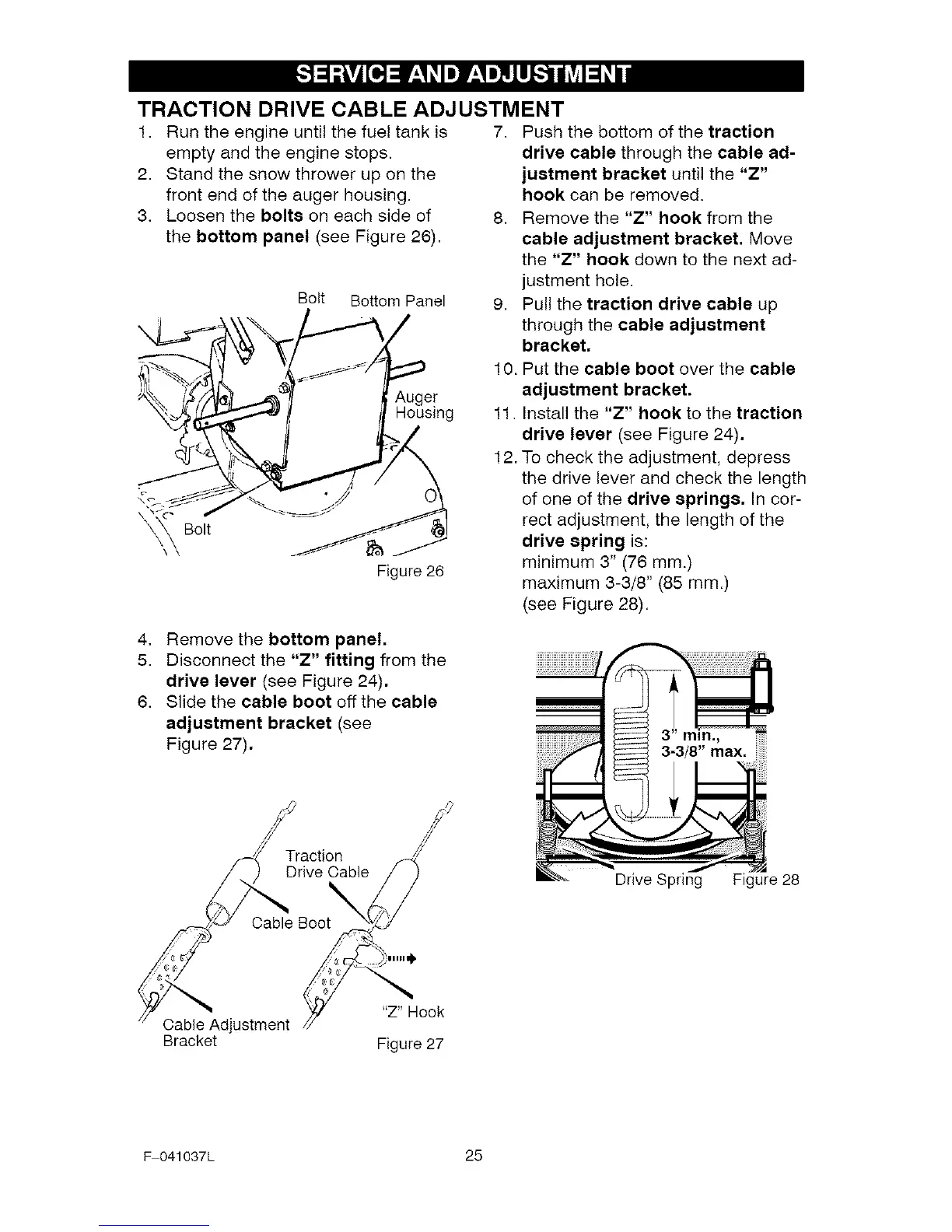

TRACTION DRIVE CABLE ADJUSTMENT
1. 7. Push the bottom of the traction
2.
3.
Run the engine until the fuel tank is
empty and the engine stops.
Stand the snow thrower up on the
front end of the auger housing.
Loosen the bolts on each side of
the bottom panel (see Figure 26).
Bolt Bottom Panel
N
Figure 26
drive cable through the cable ad-
justment bracket until the "Z"
hook can be removed.
8. Remove the "Z" hook from the
cable adjustment bracket. Move
the "Z" hook down to the next ad-
justment hole.
9. Pull the traction drive cable up
through the cable adjustment
bracket.
10. Put the cable boot over the cable
adjustment bracket.
11. Install the "Z" hook to the traction
drive lever (see Figure 24).
12. To check the adjustment, depress
the drive lever and check the length
of one of the drive springs. In cor-
rect adjustment, the length of the
drive spring is:
minimum 3" (76 mm.)
maximum 3-3/8" (85 mm.)
(see Figure 28),
4. Remove the bottom panel,
5. Disconnect the "Z" fitting from the
drive lever (see Figure 24).
6. Slide the cable boot off the cable
adjustment bracket (see
Figure 27).
3-3/8" max,
Traction r<
Drive _/
Cable Boot _/
Cable Adjustment Y "Z" Hook
Bracket Figure 27
Drive Spring Figure 28
F 041037L 25
