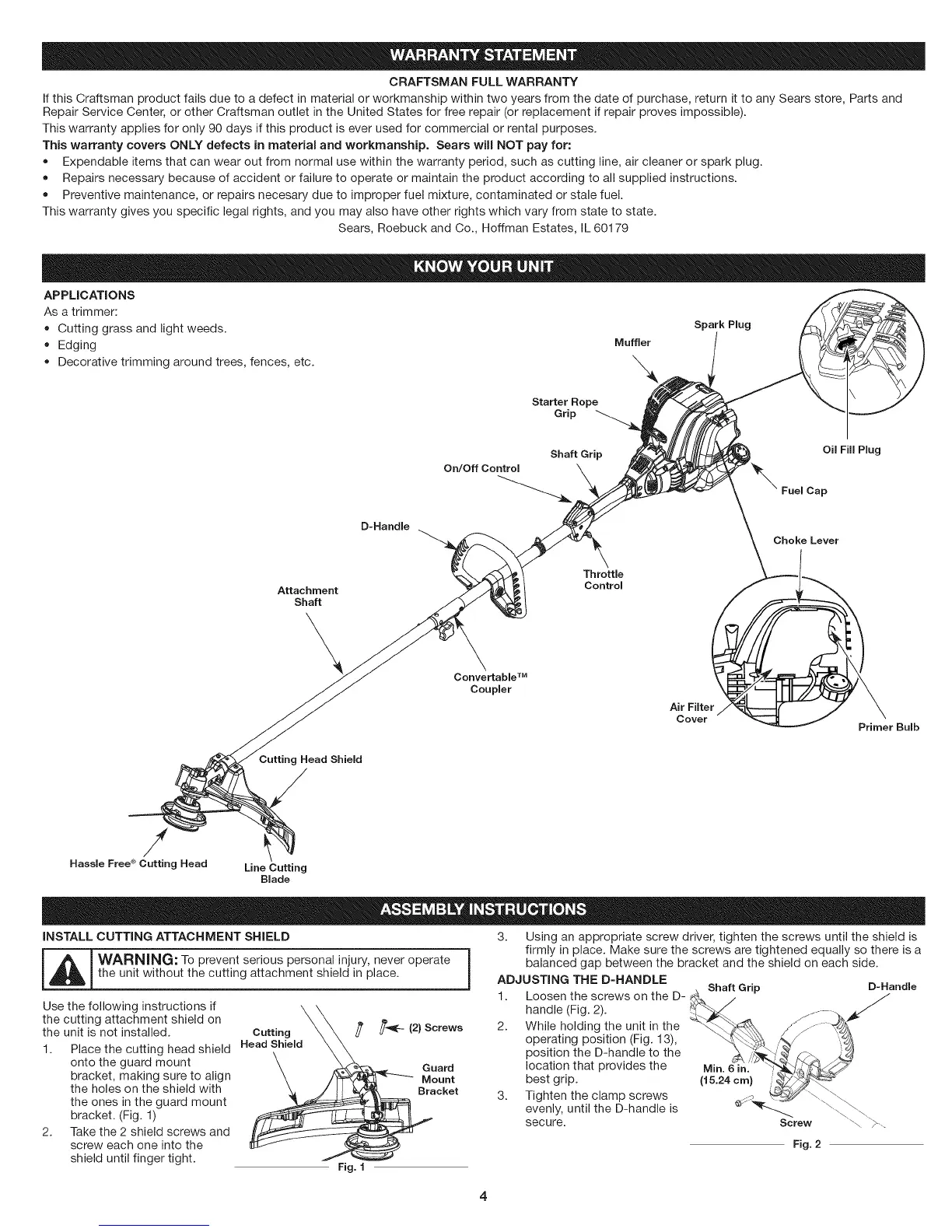

CRAFTSMAN FULL WARRANTY
If this Craftsman product fails due to a defect in material or workmanship within two years from the date of purchase, return it to any Sears store, Parts and
Repair Service Center, or other Craftsman outlet in the United States for free repair (or replacement if repair proves impossible).
This warranty applies for only 90 days if this product is ever used for commercial or rental purposes.
This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:
• Expendable items that can wear out from normal use within the warranty period, such as cutting line, air cleaner or spark plug.
Repairs necessary because of accident or failure to operate or maintain the product according to all supplied instructions.
Preventive maintenance, or repairs necesary due to improper fuel mixture, contaminated or stale fuel.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
APPLICATIONS
As a trimmer:
• Cutting grass and light weeds. Spark Plug
• Edging Muffler
• Decorative trimming around trees, fences, etc.
X
Starter Rope
Grip
On/Off Control
Shaft Grip
Oil Fill Plug
Fuel Cap
D-Handle
Choke Lever
Attachment
Shaft
Throttle
Control
Cutting Head Shield
Convertable TM
Coupler
Air Filter
Cover
Primer Bulb
/
Hassle Free ® Catting Head
Line Cutting
Blade
INSTALL CUTTING ATTACHMENT SHIELD 3. Using an appropriate screw driver, tighten the screws until the shield is
-- i_[_ WARNING: To prevent serious personal injury, never operate
the unit without the cutting attachment shield in place.
Use the following instructions if \
the cutting attachment shield on
the unit is not installed. /J
1.
2.
Cutting
Place the cutting head shield Head Shield
onto the guard mount \
bracket, making sure to align
\
the holes on the shield with
the ones in the guard mount
bracket. (Fig. 1)
Take the 2 shield screws and
screw each one into the
shield until finger tight.
Fig. I
(2) Screws
Guard
Mount
Bracket
firmly in place. Make sure the screws are tightened equally so there is a
balanced gap between the bracket and the shield on each side.
ADJUSTING THE D-HANDLE
Shaft Grip D-Handle
1. Loosen the screws on the D-
handle (Fig. 2).
2. While holding the unit in the
operating position (Fig. 13),
position the D-handle to the
location that provides the
best grip.
3. Tighten the clamp screws
evenly, until the D-handle is
secure.
Min. 5 in.
(15.24 cm)
Screw
Fig. 2
To Next Page
