SERVICE AND MAINTENANCE

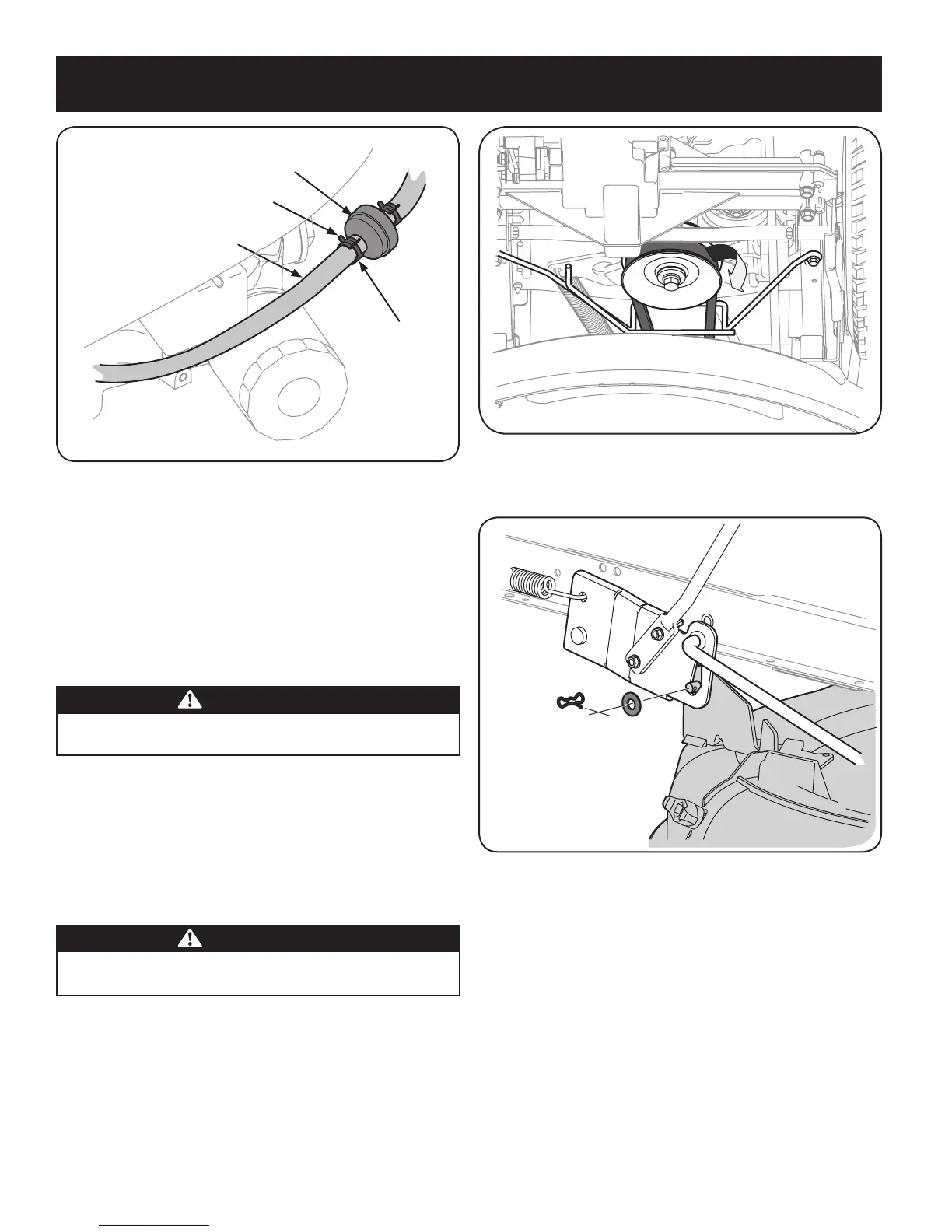

Figure 33
4. Remove the bow-tie cotter pin and flat washer from the deck lift assembly,
and retain for reinstallation later. See Figure 34.
Figure 34
Fuel Filter
Fuel Line
Tab
Clamp
Figure 32
Clean Engine
If the engine has been running, allow it to cool for at least half an hour before
cleaning. Periodically remove dirt build-up from engine. Clean the engine cooling
fins every 25 hours. Clean with a brush or compressed air.
IMPORTANT: Do not spray engine with water to clean because water could
contaminate fuel. Using a garden hose or pressure washing equipment can also
force water into the air cleaner or muffler opening. Water in the air cleaner will soak
the paper element, and water that passes through the element or muffler can enter
the cylinder, causing damage.
WARNING
Accumulation of debris around muffler could cause a fire. Inspect and clean
before every use.
Cutting Deck Removal
To remove the cutting deck, proceed as follows:
1. Place the PTO (Blade Engage) lever in the disengaged (OFF) position and
engage the parking brake.
2. Lower the deck by moving the deck lift lever into the bottom notch on the
right fender.
3. Remove the belt from around the tractor’s PTO pulley. See Figure 33.
WARNING
Avoid pinching injuries. Never place your fingers on the idler spring or
between the belt and a pulley while removing the belt.
