Creality CR-6 Max User Manual

4
Z1
Z2

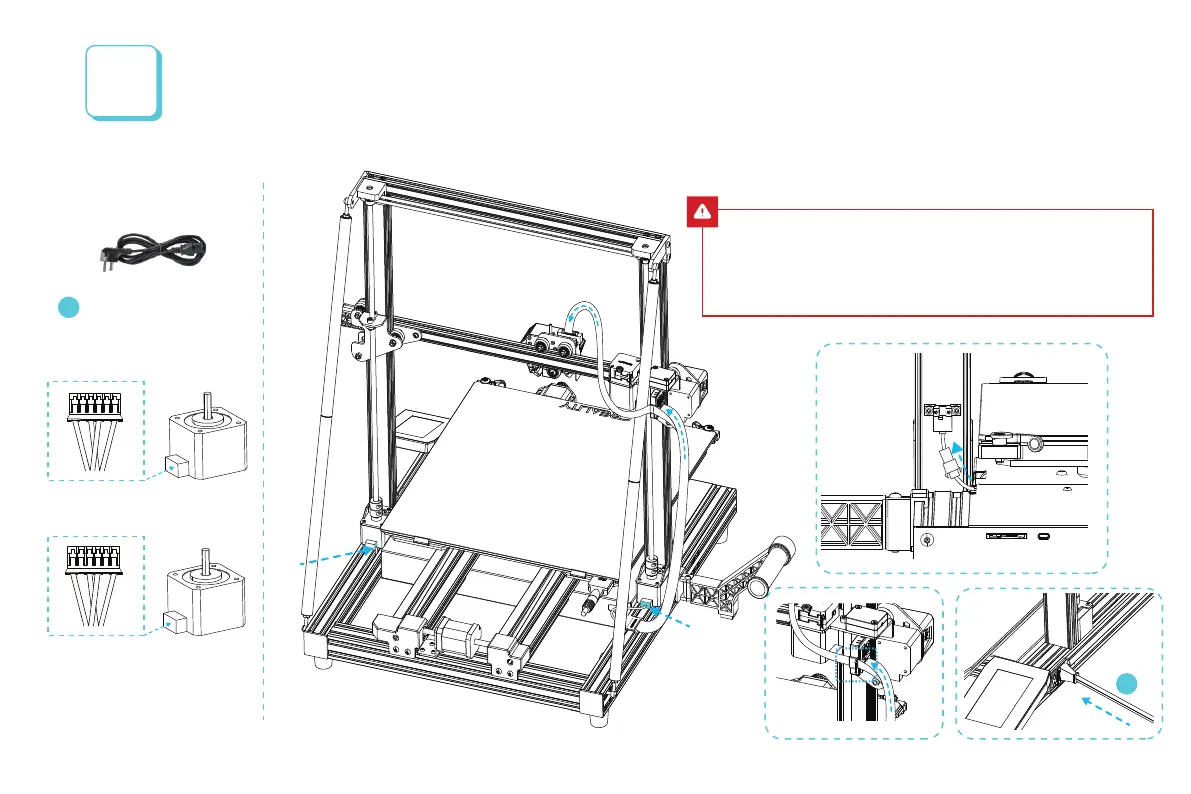

2 Connect the extruder adapter board with 14pin port as shown 按图示14pin端口连接挤出机转接板
3 Connect Z-axis motor cable 连接Z轴电机线 4 Connect the photoelectric switch wire 连接光电开关线 5 Connect the power cord 连接电源线
1 Connect the 16pin port to the nozzle adapter board as shown in the figure
按图示16pin端口连接喷头转接板
Cable Connection
设备接线
6
Caution
●Do not connect or disconnect the cables when the machine is powered on.
●当机器通电时，请勿连接或断开连接线。
4
5
1
Z2
1
Cable buckle
排线卡扣
3
Z1
2
x 1
4
Power Cord｜电源线
