DRAWBAR
Your tractor is equipped with a drawbar. Use the drawbar for connecting
all pull-behind implements.
The drawbar must be in the storage position when using the three-point hitch.
Try to balance the load primarily on the implement wheels –as in
loading a trailer or spreader. Avoid overloading the drawbar. Add
front end weights for improved stability. Engage the clutch smoothly,
avoid jerking and use the brakes cautiously to avoid jackknifing.
Rear upset can result if pulling from wrong location on tractor.
Hitch only to the drawbar. Use 3 point hitch only with the implements
designed for its use – not as a drawbar.
WITH MID PTO WITHOUT MID PTO

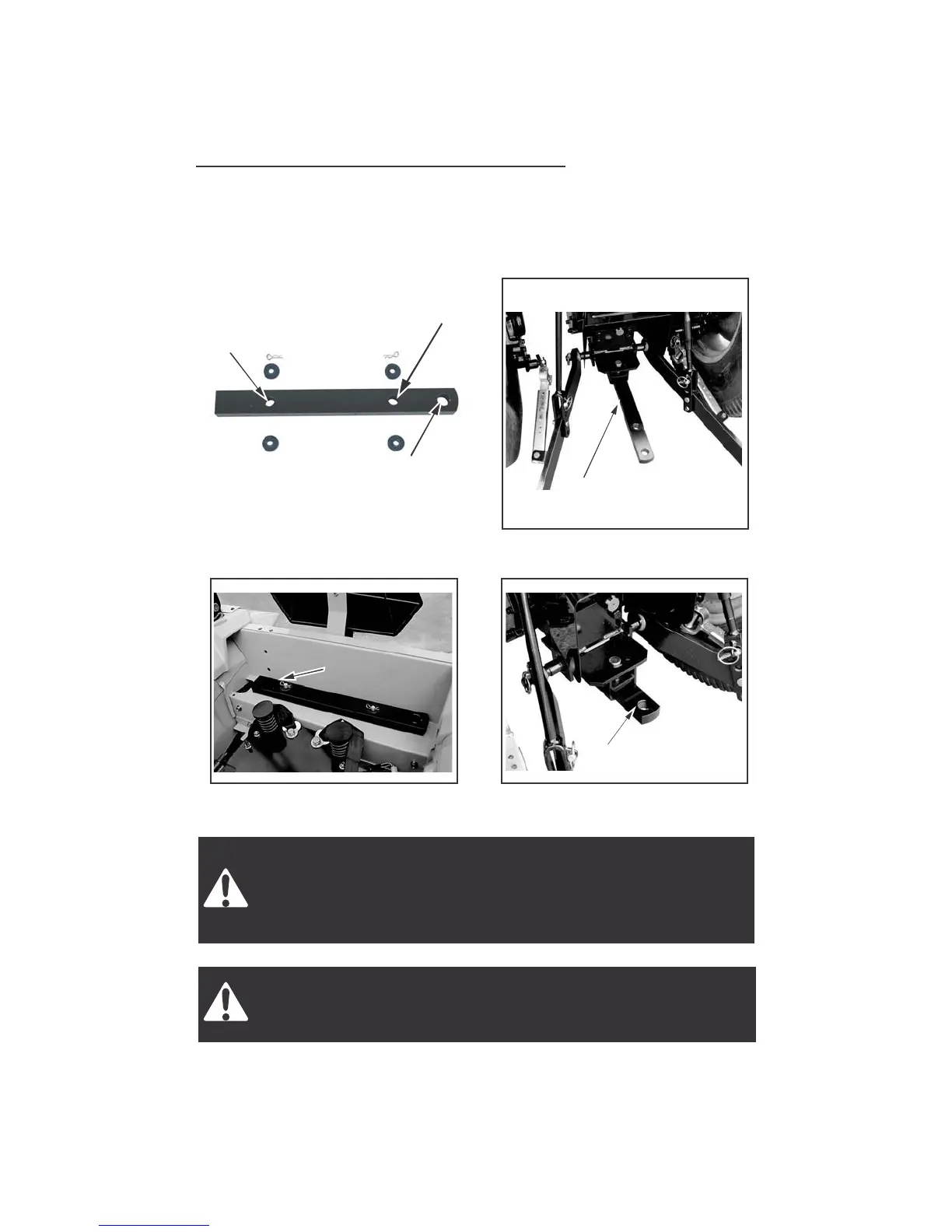

DRAWBAR
OPERATING
POSITION
IMPLEMENT CONNECTING
PIN HOLE
DRAWBAR HITCH
CONNECTING PIN HOLE
STORAGE PIN HOLE
WITHOUT MID PTO
STORAGE POSITION
(WITH MID PTO)
STORAGE POSITION
(WITH MID PTO)
STORAGE POSITION
(WITHOUT MID PTO)
