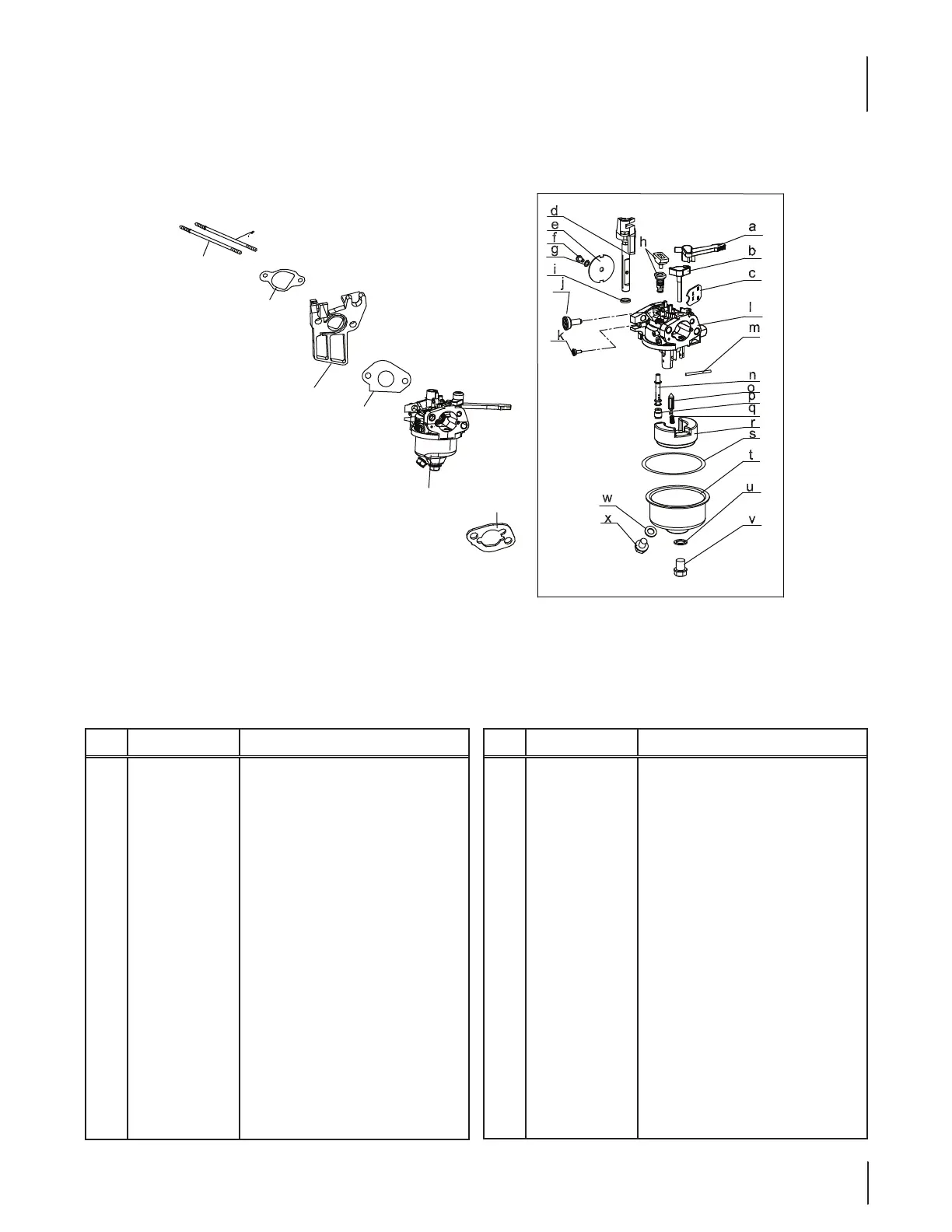

270-V0 Carburetor Assembly
Ref.
Part Number Description
24 710-05101 Carburetor Stud M6×110
25 951-11567 Carburetor Insulator Gskt
26 951-11568 Carburetor Insulator Plate
27 951-11569 Carburetor Gasket
28 951-10797 Carburetor Assembly
29 951-11571 Carburetor Gasket Plate
a N/A Control Lever,Choke
b N/A Choke Shaft
c N/A Choke Plate
d N/A Throttle Shaft
e N/A Throttle Plate
f N/A Screw M3×5
g N/A Lock Washer
h N/A Idle Jet Assembly
i N/A Gasket, Throttle Plate
j N/A Idle Speed Adjusting Screw
Ref.
Part Number Description
k N/A Mixture Screw
l N/A Carburetor Body
m N/A Float Pin
n N/A Emulsion Tube
o N/A Needle Valve
p N/A Main Jet
q N/A Needle Valve Spring
r N/A Float
s 951-11589 Fuel Bowl Gasket
t N/A Fuel Bowl
u 951-11348 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-11349 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
951-10800A Carburetor Kit - Major
(Incl. A,H-J,M-S.U,W)
