Cudy POE10 User Manual

4
Hardware Connection
Description
Cudy Gigabit PoE+Extender helps install PDs (such as IP Security Cameras, wireless
access points) at greater distances than 100 meters. By connecting PoE+Extender for
every extra 100 meters of cable, both Ethernet and PoE can be extended to up to a total
distance of 200 meters. It does not require any additional power supply, the connected
PDs are fed by a single PoE switch or mid-span, which simplifies the installation.
Features
• IEEE802.3at/IEEE802.3af-compliant
• 10/100/1000Mbps Ethernet ports
• Wall-mount design for any application scenario
• Easy plug-and-play installation
• No additional power supply required
• One PoE Extender extends additional 100 meters for PoE network
• Supports up to three PoE Extenders for a total extension of 400 meters

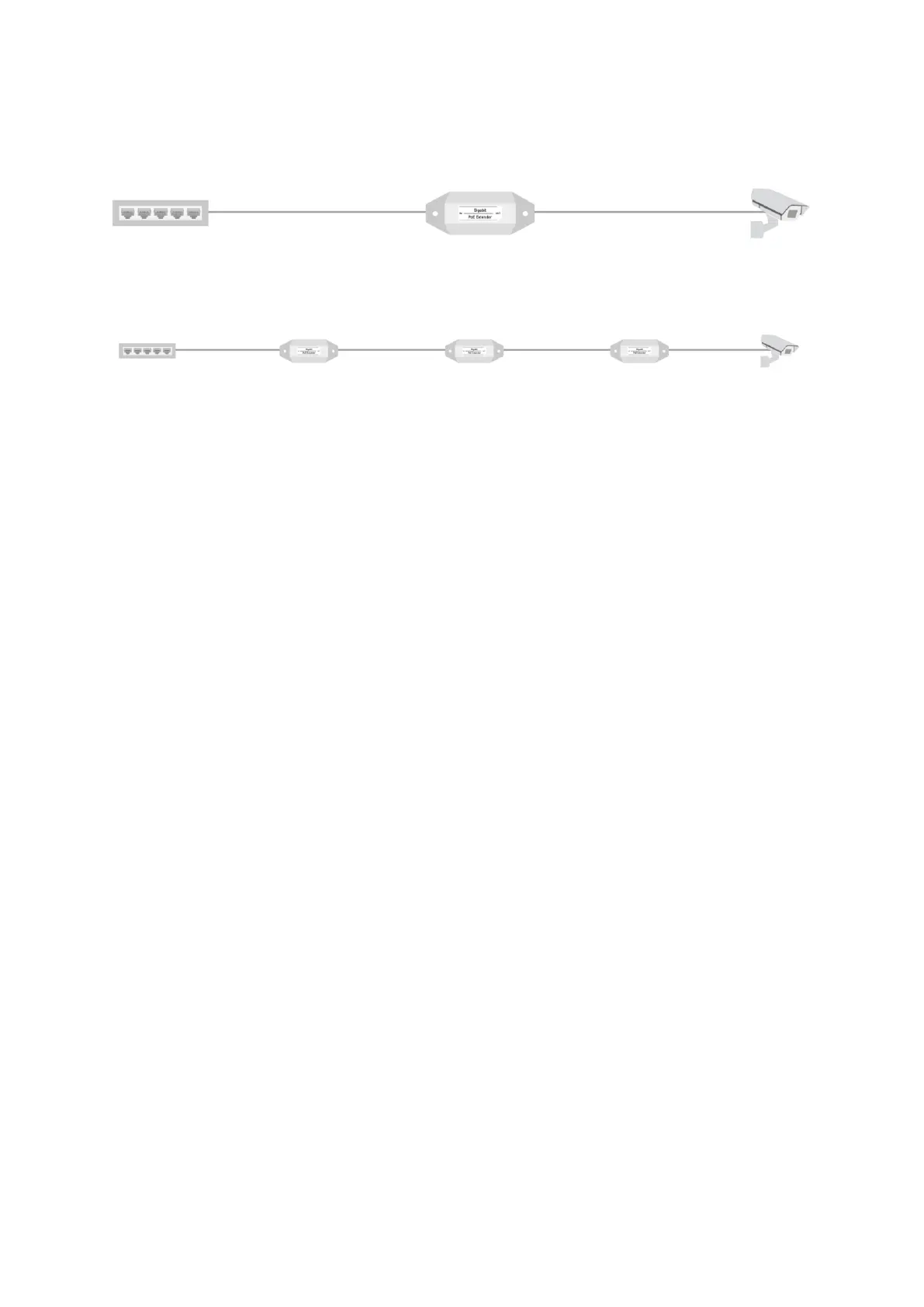

PoE+ Extender
100 m
100 m
100 m
100 m
Max. 100 m
Max. 100 m
PoE+ Switch
PoE+ Switch
PoE+ Extender
PoE+ Extender
PoE+ Extender
Camera
Camera
Supports up to three PoE+Extenders for 400 meters distance.

Cudy POE10 Specifications

General

Type	-
Duplex system	Full, Half
Plug and Play	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	100 m
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Product color	White
LED indicators	Activity, Link, PoE
Quantity per pack	1 pc(s)
Power over Ethernet (PoE) voltage	- V
Total Power over Ethernet (PoE) budget	22 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-40 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Pin assignment & polarity	1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)

Weight and Dimensions

Depth	60 mm
Width	145 mm
Height	40 mm
