Hardware Installation
Attach the Antenna (DCS-2121 only)
Screw the wireless antenna onto the antenna connector.

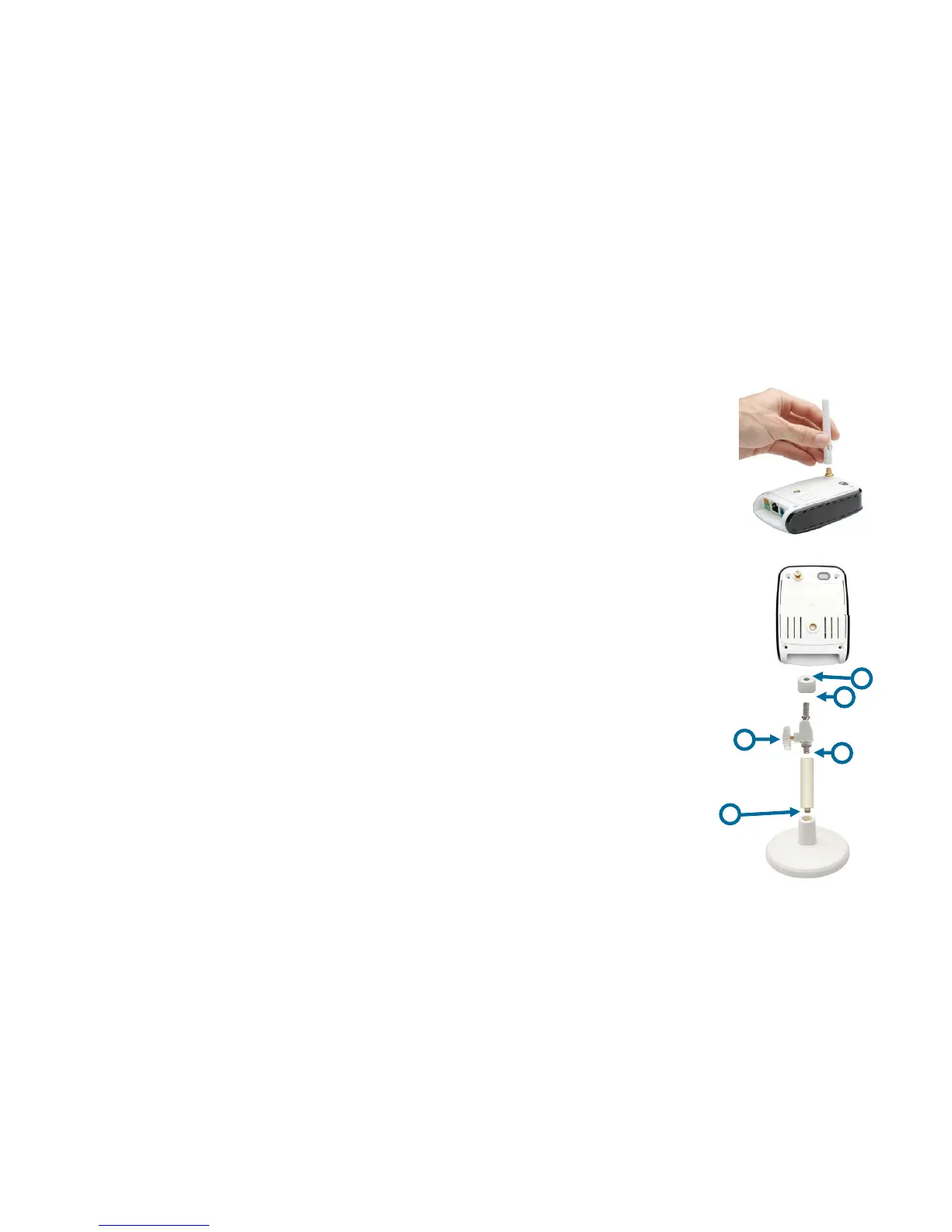

Connect the camera base
1. Screw the base stem into the base.
2. Take the hinge bracket and tighten the wheel.
3. Screw the hinge bracket into the base stem.
4. Screw the collar onto the hinge bracket.
5. Screw the camera onto the completed base and tighten the collar.
You can adjust the angle and pivot of the camera by loosening the wheel and retightening it after moving it to the desired position.
