Section 2: Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-2330L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-2330L.

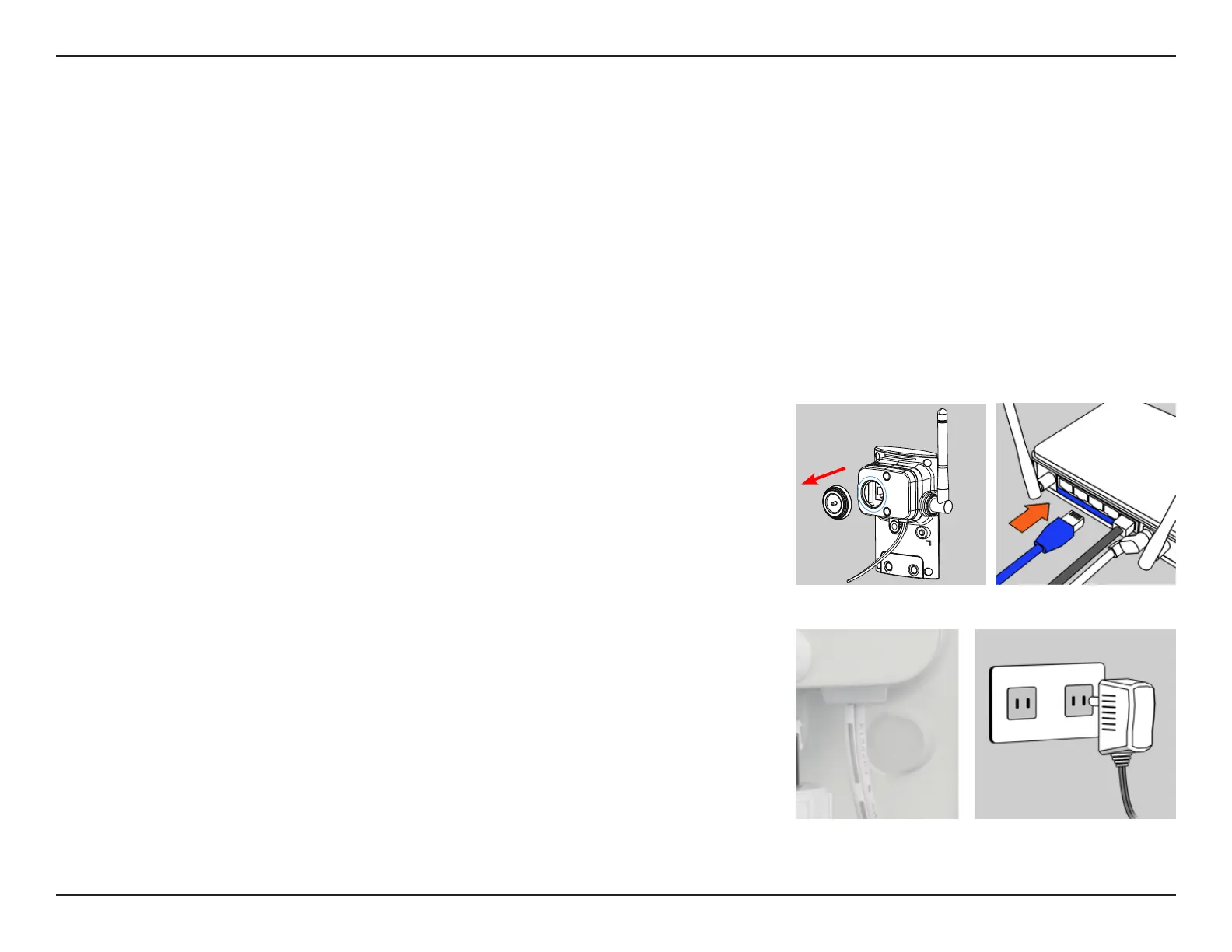

Connect the Ethernet Cable
Carefully remove the rubber seal on the back of the DCS-2330L and use the
included Ethernet cable to connect the DCS-2330L to your network.
Attach the External Power Supply
Attach the external power supply to your wall outlet or power strip.
Installation
Zero Conguration Setup

D-Link DCS-2330L Specifications

General

Type	IP security camera
PTZ control	-
Certification	FCC, CE, CE LV D, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
International Protection (IP) code	IP65
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	3.45 mm
Built-in HDD	No
LED type	IR
Night vision distance	5 m
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, QoS, CoS
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	-5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional

Weight and Dimensions

Depth	53.8 mm
Width	66 mm
Height	105 mm
Weight	134 g
