Section 3: Conguration

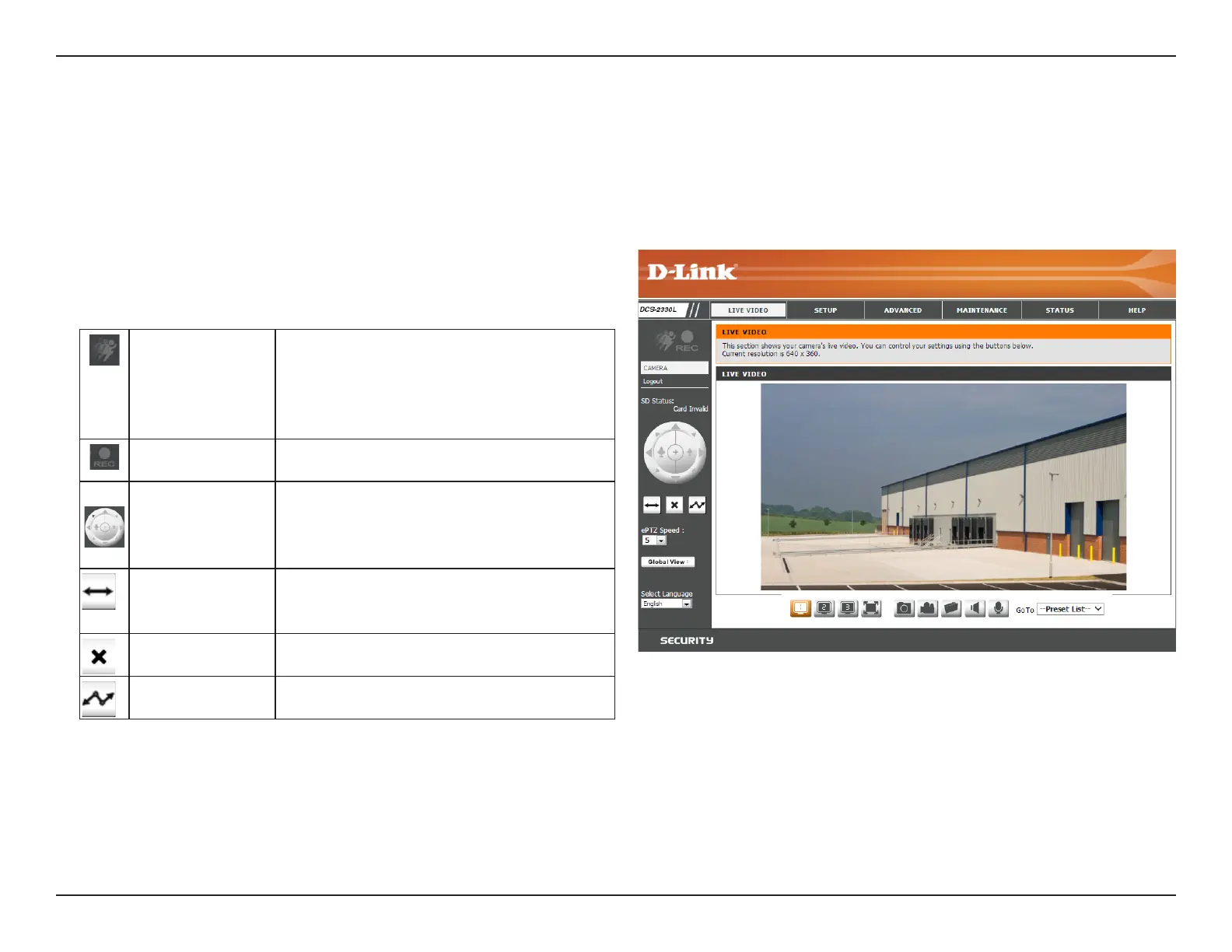

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Motion Trigger
Indicator
This indicator will change color when a
trigger event occurs.
Note: The video motion feature for your
camera must be enabled.
Recording
Indicator
When a recording is in progress, this
indicator will change color.
Control Pad
This control pad can be used to
electronically pan, tilt, and zoom (ePTZ)
within the camera's predened view area,
if one has been dened.
Auto Pan Starts the automatic panning function. The
ROI will pan from back and forth within the
FOV
Stop Stops the camera ePTZ motion
Preset Path Starts the camera's motion along the
predened path
You may select a value between 0 and 64. 0 is the
slowest and 64 is the fastest.
ePTZ Speed:
This option displays the status of the SD card. If no
SD card has been inserted, this screen will display
the message "Card Invalid."
SD Status:

D-Link DCS-2330L Specifications

General

Type	IP security camera
PTZ control	-
Certification	FCC, CE, CE LV D, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
International Protection (IP) code	IP65
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	3.45 mm
Built-in HDD	No
LED type	IR
Night vision distance	5 m
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, QoS, CoS
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	-5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional

Weight and Dimensions

Depth	53.8 mm
Width	66 mm
Height	105 mm
Weight	134 g
