D-Link DCS-933L User Manual

38D-Link DCS-933L User Manual 38
Section 3 - Conguration

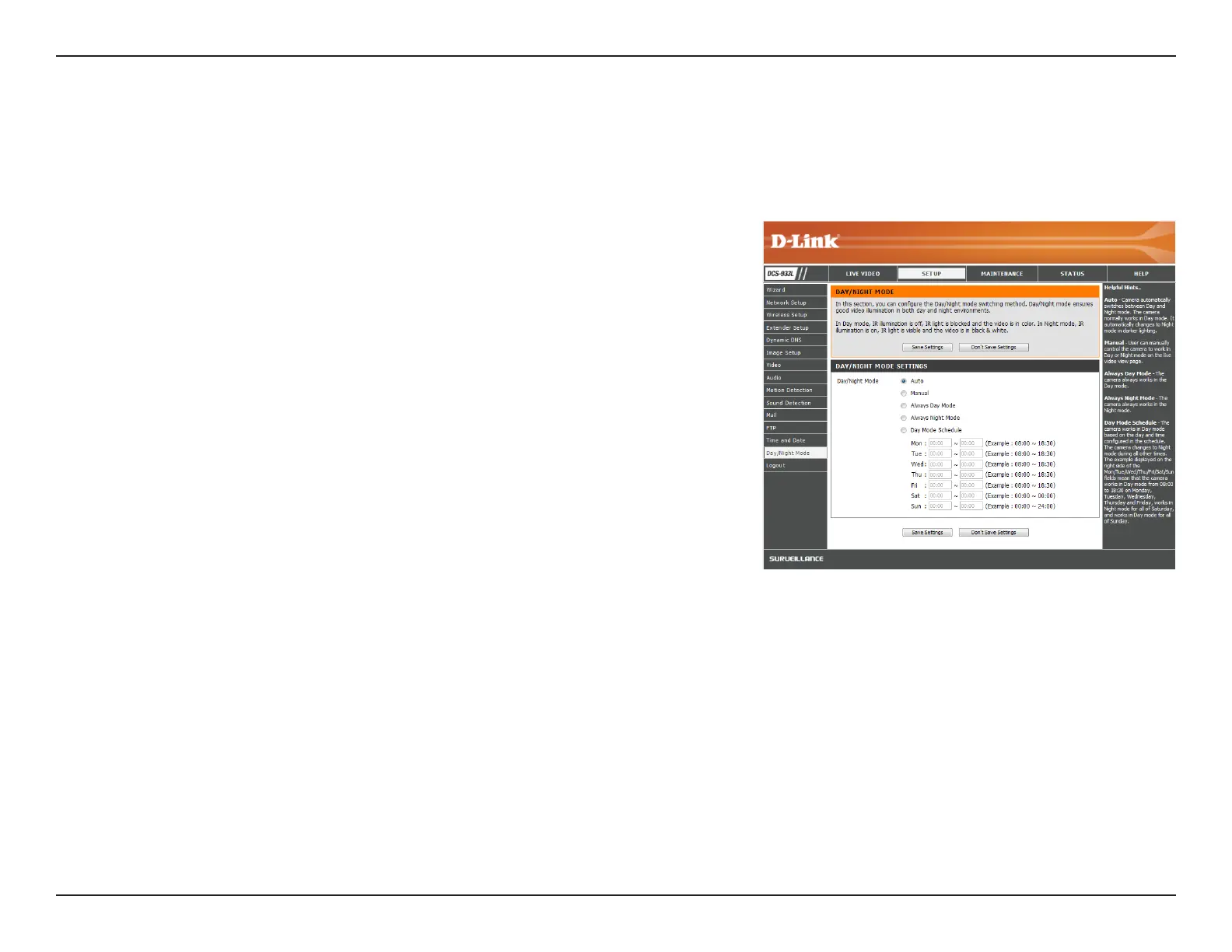

Day/Night Mode
This section allows you to congure the Day and Night mode settings. Day mode uses the infrared cut lter to provide a corrected color image for
timeswherethereisavailablelighting.Nightmodemovesthelteroutofthewaytouseallavailablelight,andturnsontheIRLEDilluminatorsto
allow for clear black and white video in dark areas with little to no light.
Auto:
Manual:
Always Day
Mode:
Always Night
Mode:
Day Mode
Schedule:
This mode will automatically switch between Day and Night mode based on
the amount of available lighting.
This mode allows you to manually switch between modes through the Live
Video page.
This sets the camera to always use Day mode.
This sets the camera to always use Night mode.
This sets the camera to use Day mode during the times you specify, and will
switch to Night mode outside the times you specify.

D-Link DCS-933L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	160 x 112, 320 x 240
Camera shutter type	Electronic
Camera shutter speed	1/15 - 1/15000 s
Minimum illumination	0 lx
Field of view (FOV) angle	54.9 °
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Optical zoom	0 x
Zoom capability	Yes
Fixed focal length	3.15 mm
Built-in HDD	No
LED type	IR
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Housing material	Plastic
Bundled software	D-ViewCam
Browser supported	Internet Explorer 7
Dimensions (WxDxH)	80 x 80 x 115 mm
F-number (relative aperture)	2.8
Minimum system requirements	- Microsoft Windows 7 / Vista / XP - Internet Explorer 7 or higher - standard TCP/IP
Interface	WLAN
RS-422 ports	0
Ethernet LAN (RJ-45) ports	1
Audio system	1-way
Audio formats supported	PCM
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP server, PPPoE, UPnP port forwarding, LLTD
DC output voltage	+5V
Power consumption (typical)	4 W
Storage temperature (T-T)	-20 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	2095 mm
Pallet gross weight (air)	317600 g
Quantity per pallet (air)	600 pc(s)
Shipping (inner) case width	173 mm
Shipping (inner) case height	196 mm
Shipping (inner) case length	509 mm
Shipping (inner) case weight	2500 g
Shipping (inner) case net weight	1050 g
Number of cartons per pallet (air)	120 pc(s)
Harmonized System (HS) code	85258900
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Width	80 mm
Height	115 mm
Weight	96.2 g
Package depth	160 mm
Package width	152 mm
Package height	95 mm
Package weight	290 g
