8

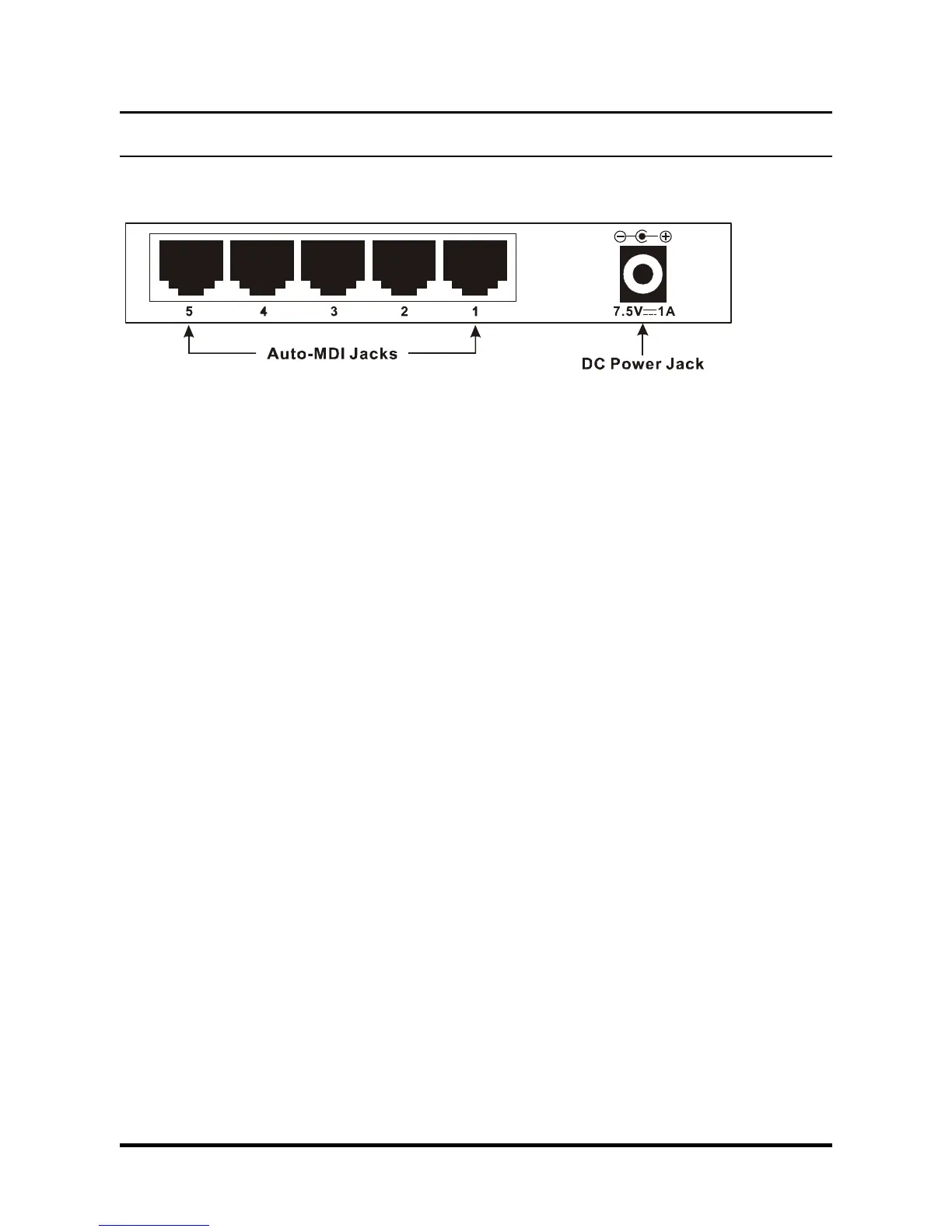

Rear Panel
Auto MDI/MDI-X Ports:
All ports support automatic MDI/MDI-X crossover detection. The Auto
MDI/MDI-X function makes it simple to connect to the switch—just plug
either a Crossover or Straight-Through CAT5 cable into any port.
DC Power Jack:
Power is supplied through an external AC power adapter. Check the
technical specification section for information about the DC power input
voltage.
Since the DES-1005D/ DSS-5+ does not require a power button, plugging
its power adapter into a power outlet will immediately power it on.
DES-1005D/ DSS-5+ 10/100Mb Fast Ethernet
Switch
