D-Link DGS-1005P User Manual

DGS-1005P
5
ENGLISH

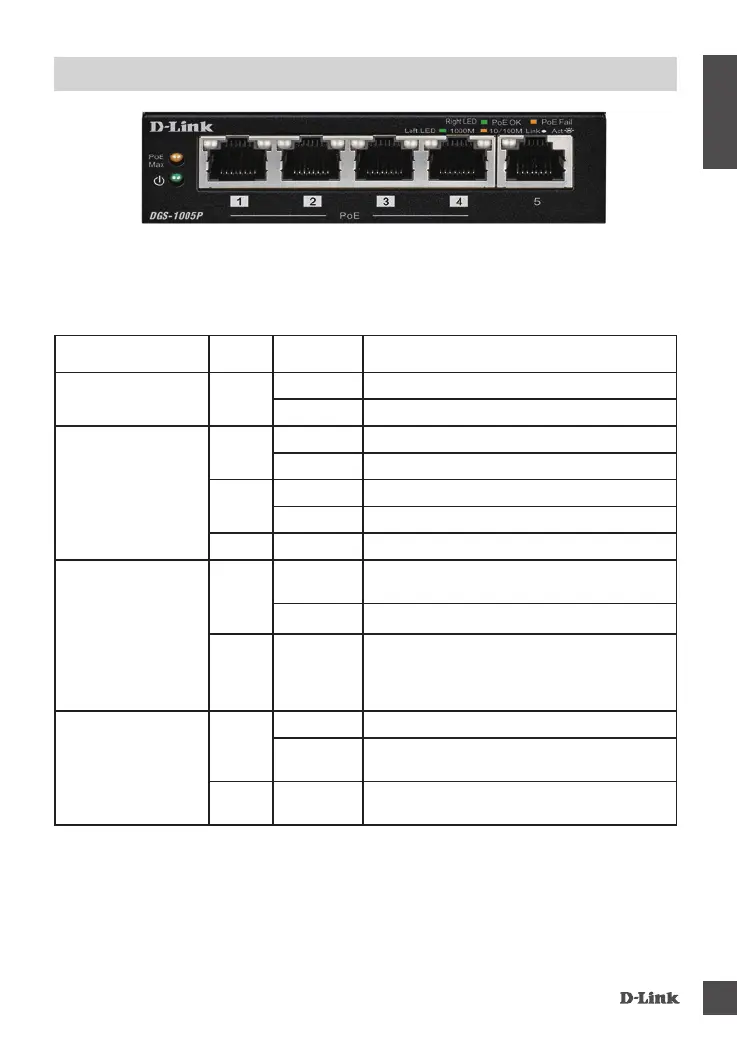

LED INDICATORS
The LED indicators allow you to monitor, diagnose, and troubleshoot any potential problem within the
switch, connection, or attached devices.
LED Color Status
Description
Power
Green Solid light Power on
Off Power off
Link/Act/Speed
Green Solid light Connection to a 1000 Mbps Ethernet device.
Blinking The port is receiving or transmitting data.
Amber Solid light Connection to a 10/100Mbps Ethernet device
Blinking The port is receiving or transmitting data.
Off Light off No link
PoE ( Ports1 to 4 )
Green Solid light The port is successfully connected to a PoE
device and is powering the device properly.
Off No connection to a PoE device
Amber Blinking A valid PoE load is connected to port output
lines, but the switch does not have sufcient
power for supplying the required load power.
Port power is not activated
PoE Max.
Amber Solid light Total power consumption is above 53W.
Blinking Output power to PoE devices has exceeded the
maximum power budget (60W).
Off Light off Total power consumption is below Power Guard
Band (53W).

D-Link DGS-1005P Specifications

General

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
10G support	No
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table	2000 entries
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Stackable	-
Certification	CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI
Product color	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status
Housing material	Metal
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Packet filtering	7.44 Mpps
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	98 mm
Width	100 mm
Height	28 mm
Weight	260 g
