D-Link DIR-636L User Manual

100D-Link DIR-636L User Manual
Section 3 - Conguration

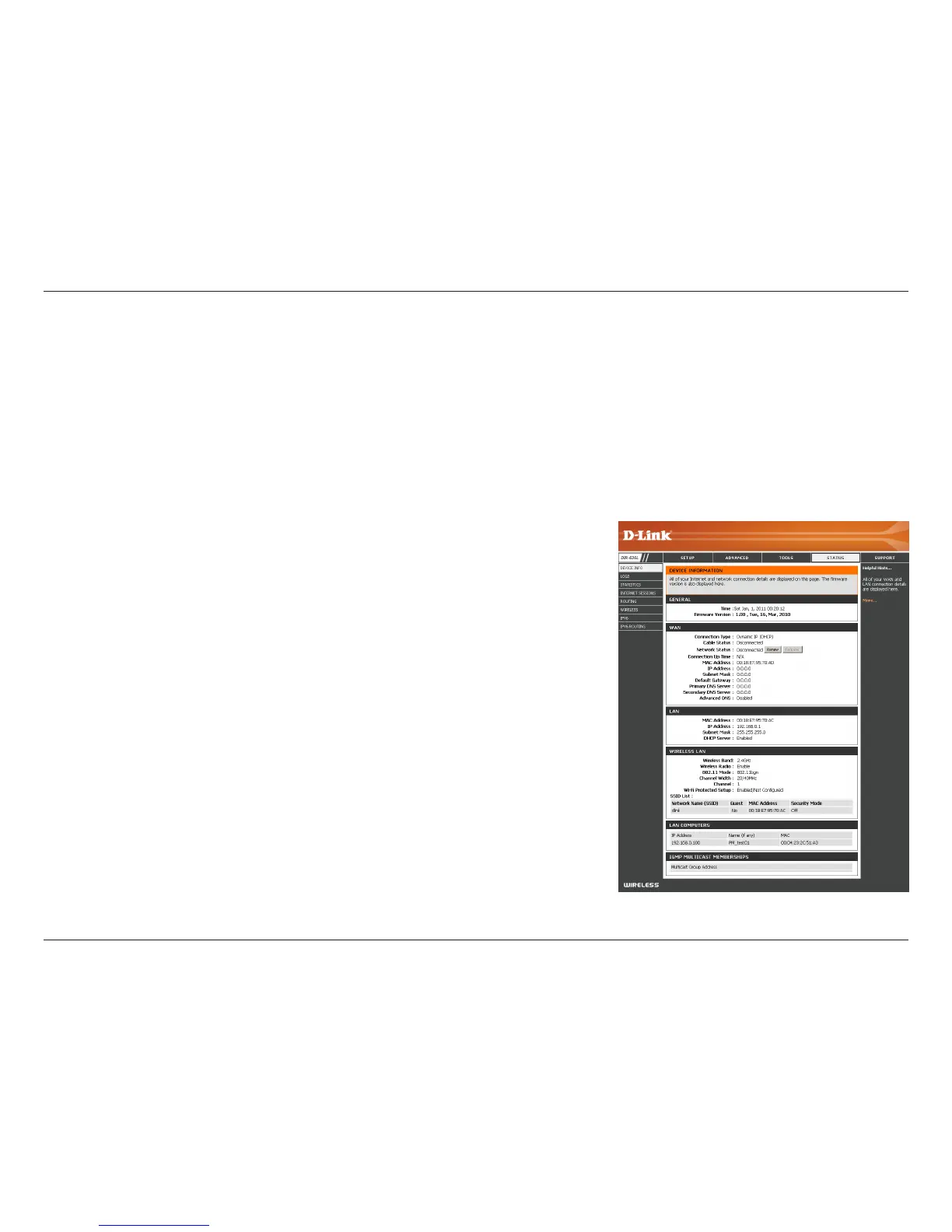

This page displays the current information for the DIR-636L. It will display the LAN, WAN (Internet), and Wireless information.
If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed.
Use Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect
to drop the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
Displays the MAC address and the private (local) IP settings for the router.
Displays the wireless MAC address and your wireless settings such as SSID and
Channel.
Displays computers and devices that are connected to the router via Ethernet
and that are receiving an IP address assigned by the router (DHCP).
General:
WAN:
LAN:
Wireless LAN:
LAN Computers:
Device Info
Status

D-Link DIR-636L Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Operating temperature (T-T)	30 - 104 °F
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	WPA, WPA2, WPS
Certification	FCC, IC, IPv6, Wi-Fi
Operating relative humidity (H-H)	10 - 95 %
Product color	Black

Weight and Dimensions

Depth	145 mm
Width	92.96 mm
Height	111 mm
Weight	- g
