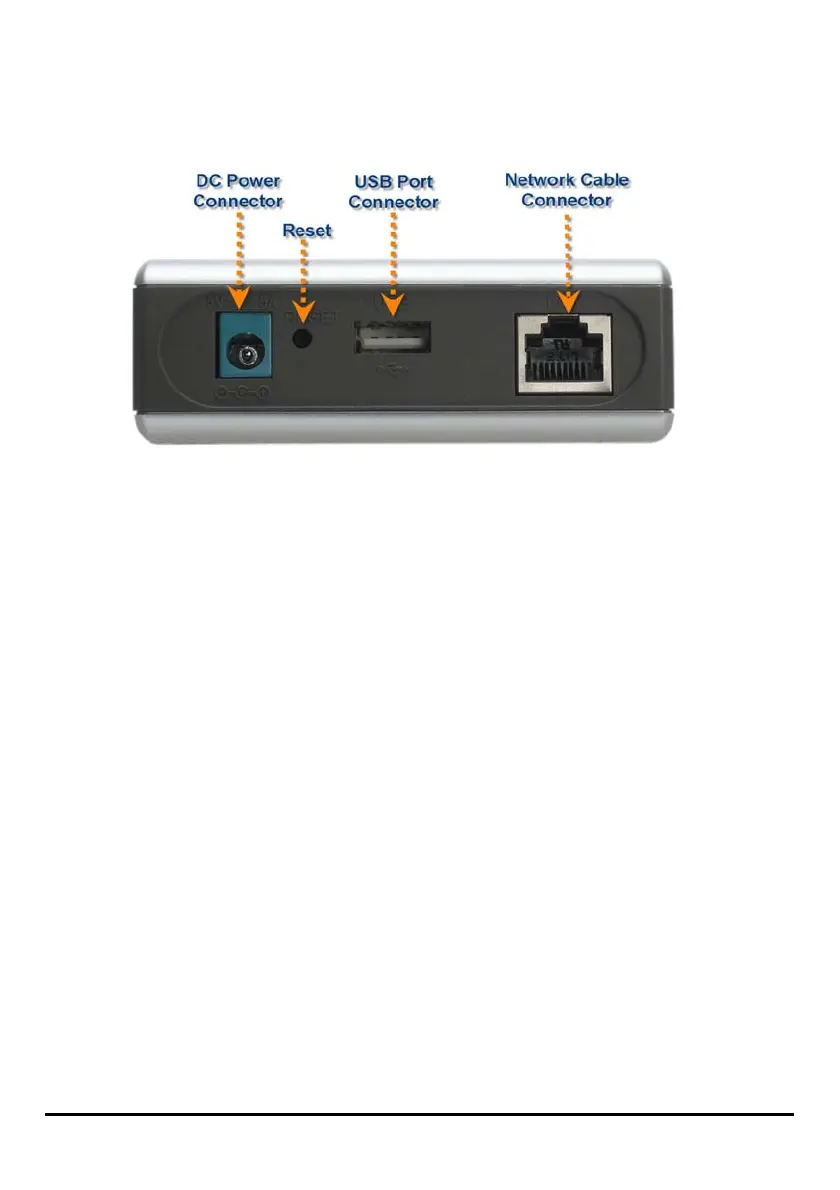

Rear Panel Connectors
Network Cable Connector
The Print Server’s rear panel features an RJ-45 connector for connection to
10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should
be Category 5 twisted-pair cable). The port supports the NWay protocol, allowing
the Print Server to automatically detect or negotiate the transmission speed of the
network.
USB Port Connector
The rear panel of the print server features the USB port connector. Plug this
connector directly into the USB port on your network printer via a USB cable.
Reset Button
Press and release this button to reset the Print Server; or press and hold this button
for three seconds until the USB LED on the front panel light up and then release the
button, the Print Server will resume the factory default settings.
DC Power Connector
The DC power input connector is located on the Print Server’s rear panel and is
labeled DC 5V.
