D-Link DSL-2640U User Manual

DSL-2640U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
You can finish the wizard earlier and go to the menu of the web-based interface. To do this, click the
ADVANCED SETTINGS button. On the opened page, change the default settings: specify the
administrator password in the Admin password field and the name of the wireless network in the
Network name (SSID) field. Then click the APPLY button.

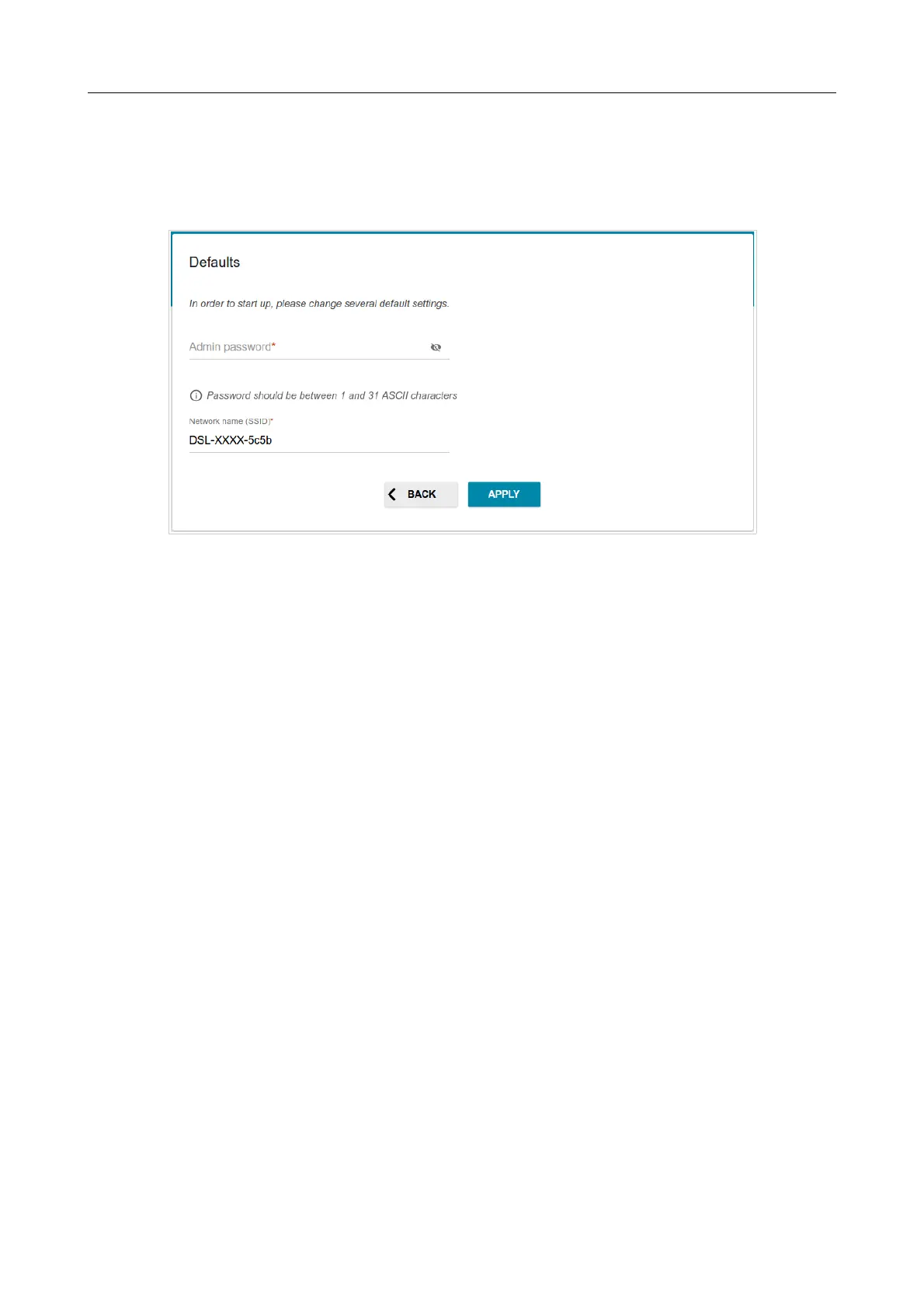

Figure 21. Changing the default settings.
To continue the configuration of the router via the Wizard, click the CONTINUE button.
Page 33 of 174

D-Link DSL-2640U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface connector	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface ports	four RJ-45 ports for 10/100BASE-T Ethernet connection
