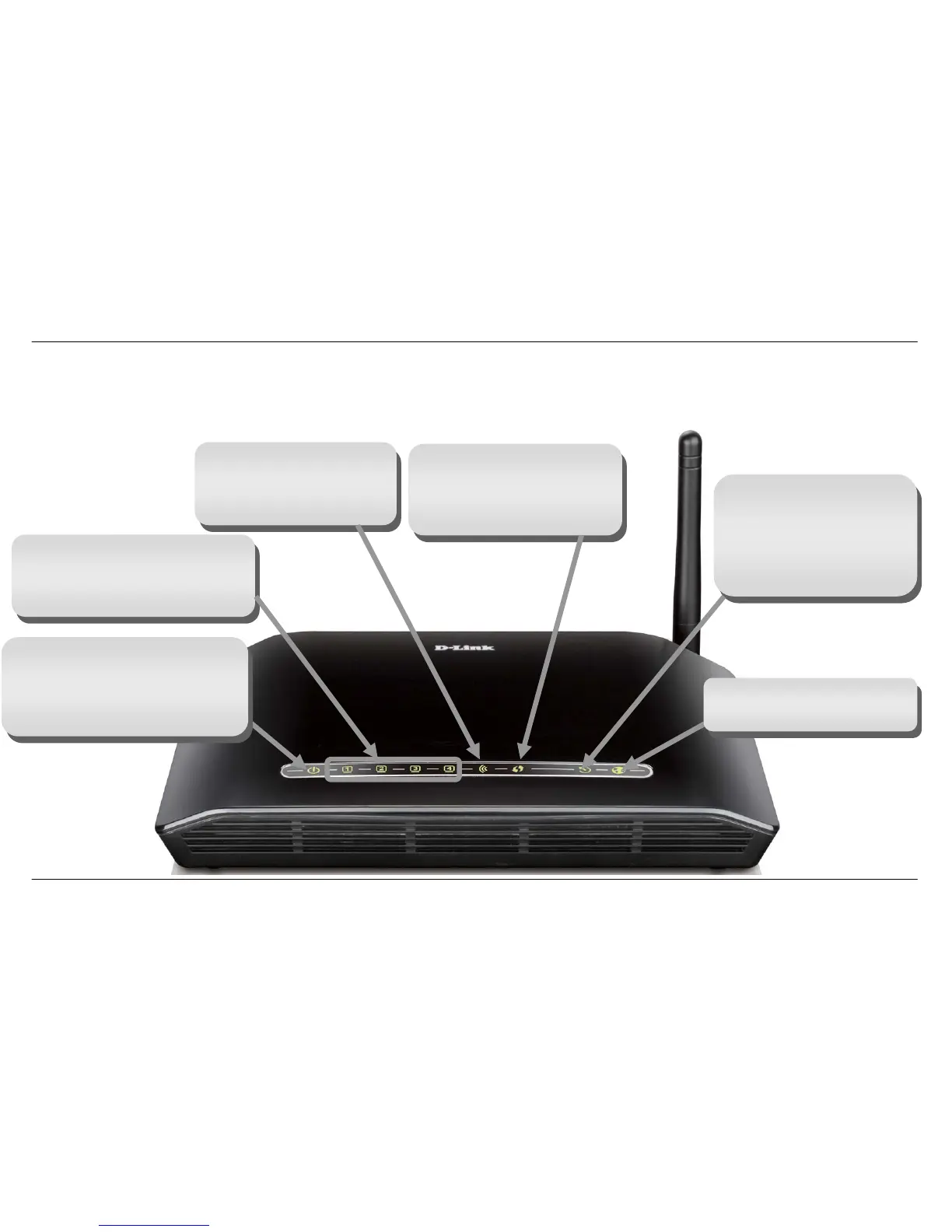

Hardware Overview
LEDs
Power
A steady green light indicates the unit is
powered on. When the device is powered
off it remains dark. Lights steady green
during power on self-test (POST) means
the power connection works properly.
DSL
A steady green light indicates a
valid ADSL connection. This will
light after the ADSL negotiation
process has been settled. A
blinking green light indicates that
ADLS is attempting to sync.
LAN
A solid green light indicates a valid link on
startup. This light will blink when there is
activity currently passing through the
Ethernet
p
ort.
WLAN
A steady green light indicates a
wireless connection. A blinking
green light indicates activity on
the WLAN interface.
Internet
A steady green light indicates a valid
internet connection.
WPS
A blinking green light indicates the
device
has connected the wireless
network card,
A blinking green
light indicates activity on WPS.

D-Link DSL-2730U Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface speed	10/100BASE-T Ethernet
