D-Link DSL-2750E User Manual

DSL-2750E User Manual
83
3.4 Management
In the main interface, click Management tab to enter the Management menu as
shown in the following figure. The submenus are Global IPv6, System
Management, Firmware Update, Access Controls, Diagnosis, Log
Configuration and Logout.

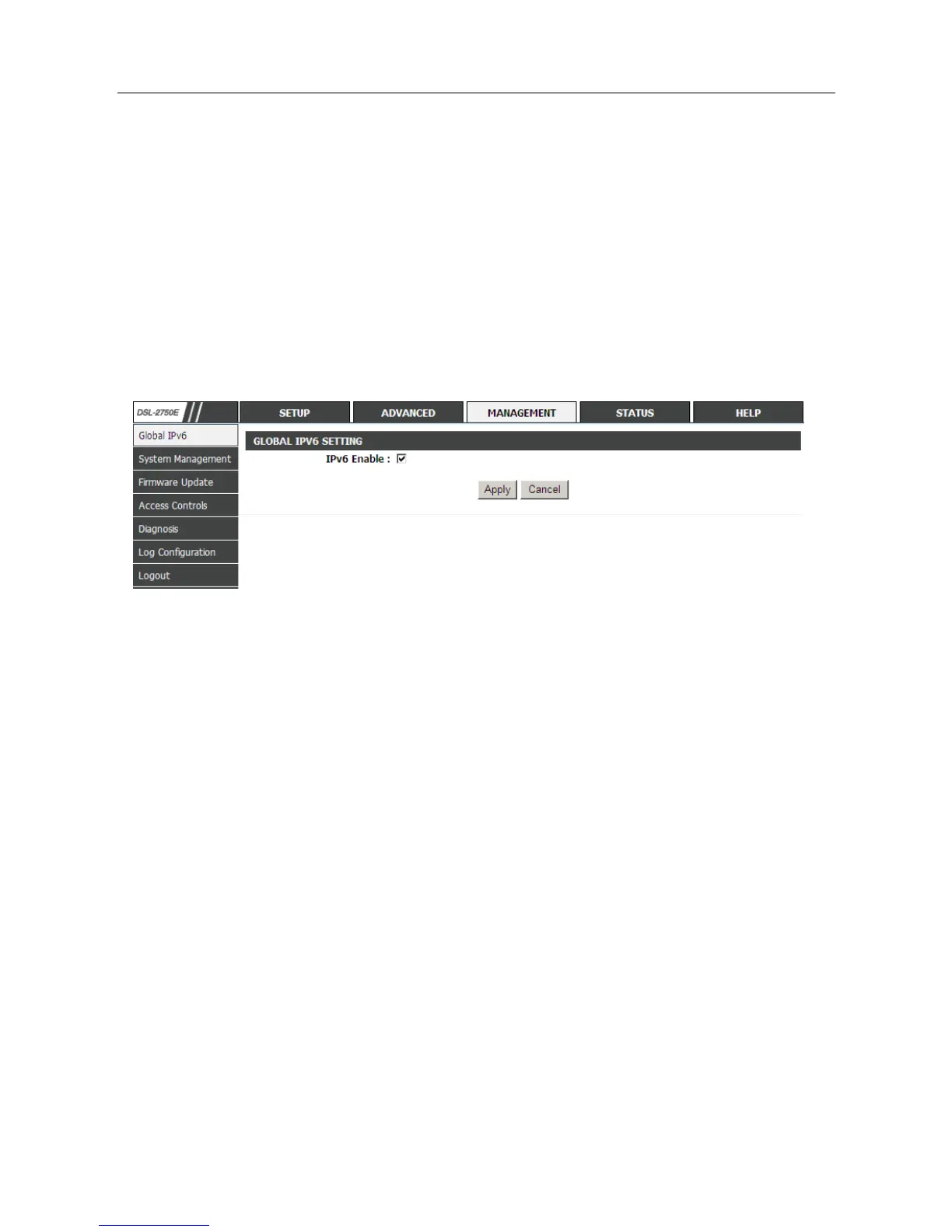

3.4.1 Global IPv6
Choose MANAGEMENT > Global IPv6. The page shown in the following figure
appears. In this page you can enable or disable IPv6 function.
3.4.2 System Management
Choose MANAGEMENT > System Management. The page shown in the
following figure appears.

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
