D-Link DWA-125 User Manual

32D-Link DWA-125 User Manual
Section 4 - Wireless Security
Configure WPA/WPA2 Passphrase
Using the D-Link Wireless Connection Manager
It is recommended to enable WPA-PSK on your wireless router or access point before configuring your wireless adapter.
If you are joining an existing network, you will need to know the WPA-PSK passphrase being used.

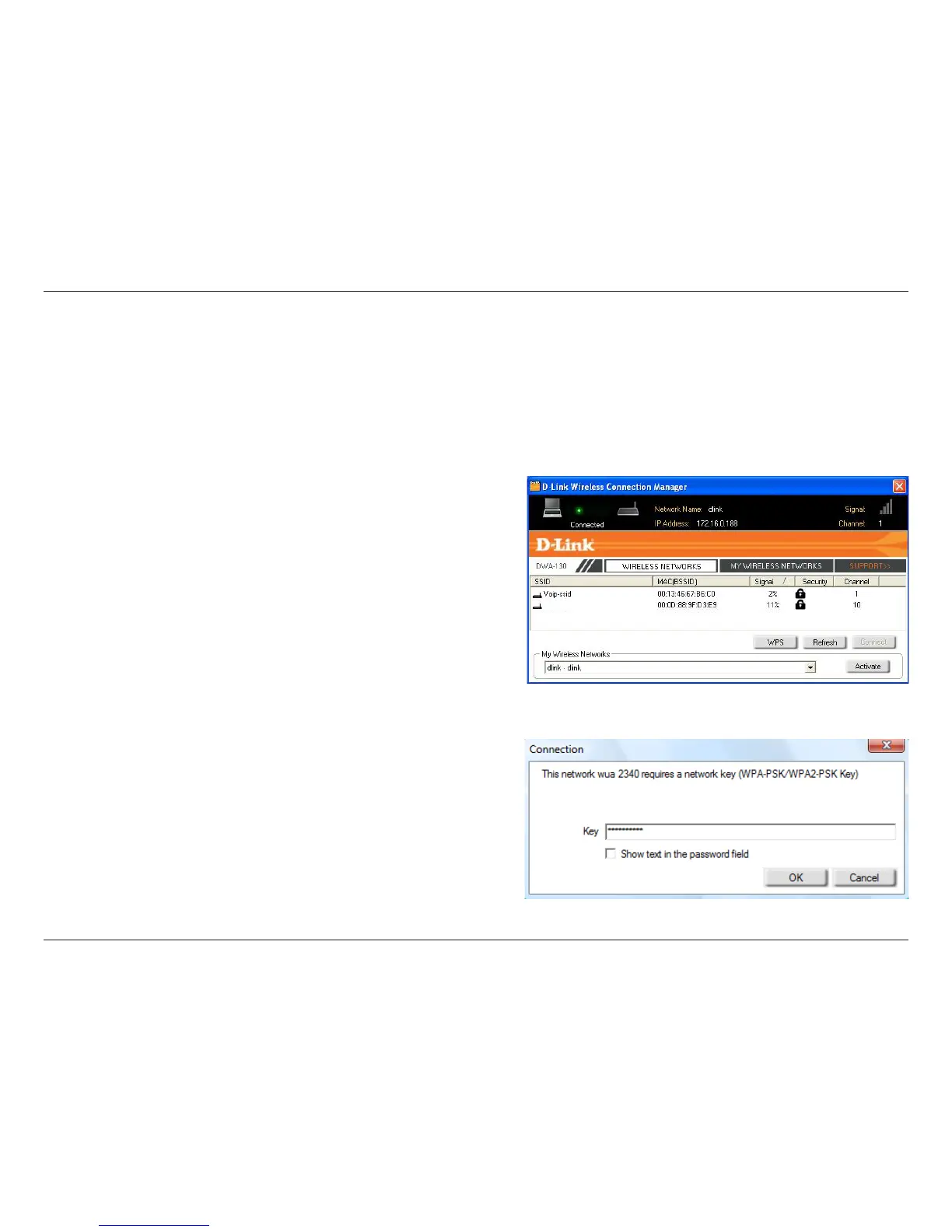

1. Open the Wireless Connection Manager by double-clicking on
the D-Link icon on your desktop.
2. Highlight the wireless network (SSID) you would like to connect
to and click Connect. If the network is using WPA-PSK, the
screen (as shown to the bottom-right) will appear.
3. Enter the WPA-PSK passphrase exactly as it is on your wireless
router or access point. Click the Show text in the password
field box to see the passphrase. Unchecking it will hide it.
4. Click OK to connect to the network. Allow up to 30 seconds to
connect.
If you would like to create a new network and enter the WPA-PSK
settings, refer to the next page.

D-Link DWA-125 Specifications

General

Security algorithms	WPA, WPA2, WPS
Maximum data transfer rate	125 Mbit/s
Weight (imperial)	0.1 lbs
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Supported data transfer rates	11/54/150 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
Certification	FCC Class B, Wi-Fi, IC
