D-Link DWA-171 User Manual

38D-Link DWA-171 User Manual
Section 5 - Wireless Security

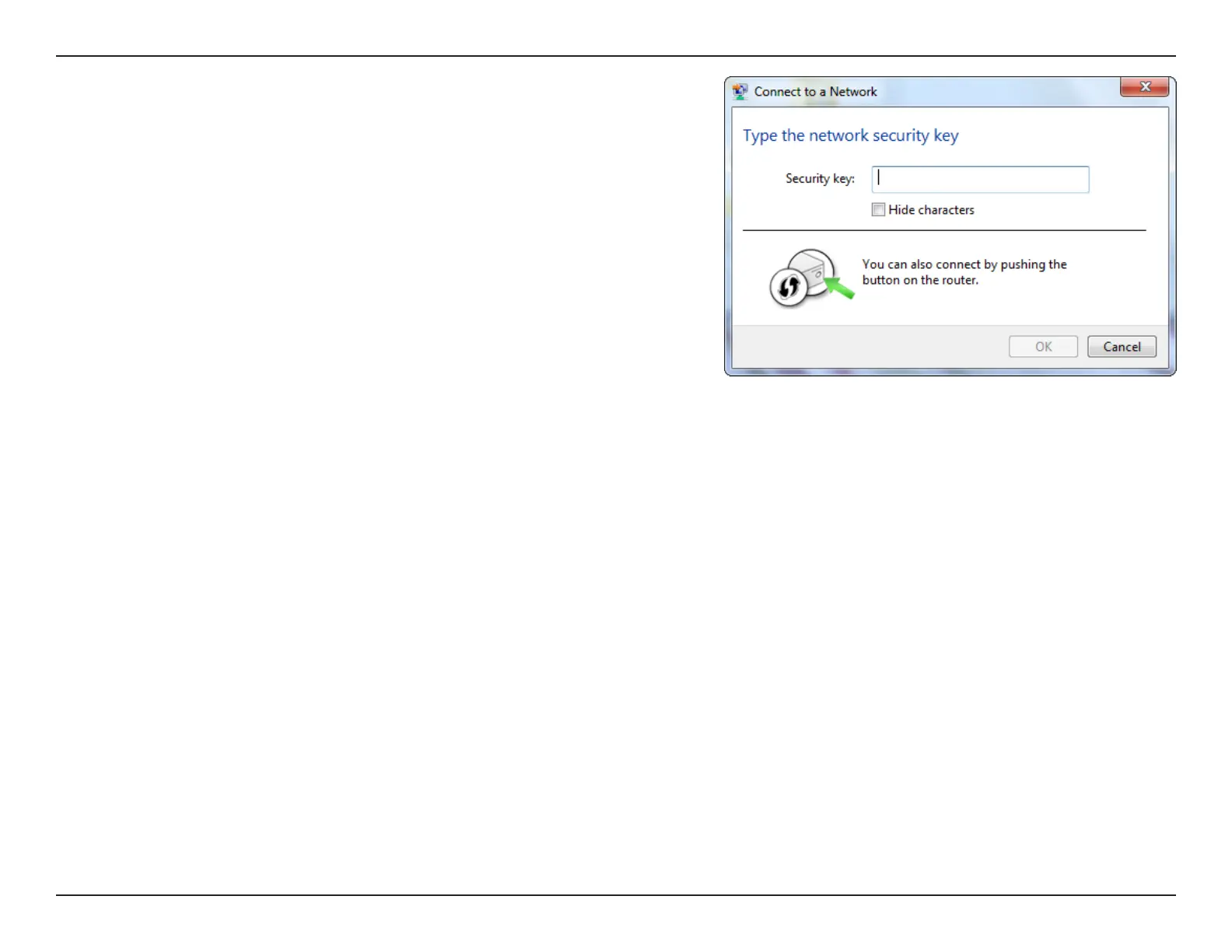

5. Enter the same security key or passphrase that is on your router and click
OK. You can also connect by pushing the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the security settings are correct. The key or passphrase
must be exactly the same as on the wireless router.

D-Link DWA-171 Specifications

General

Frequency Band	2.4 GHz / 5 GHz
Interface	USB 2.0
Antenna Type	Internal
Wireless Standard	802.11ac
Standards	IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Maximum Data Rate	433 Mbps
Security	WPA/WPA2
Operating Systems Supported	Windows 10, 8, 7, Vista, XP
