D-Link DWA-525 User Manual

39D-Link DWA-525 User Manual
Section 4 - Wireless Security
Configure WEP
Using the Windows
®
XP Utility
It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If
you are joining an existing network, you will need to know the WEP key being used.

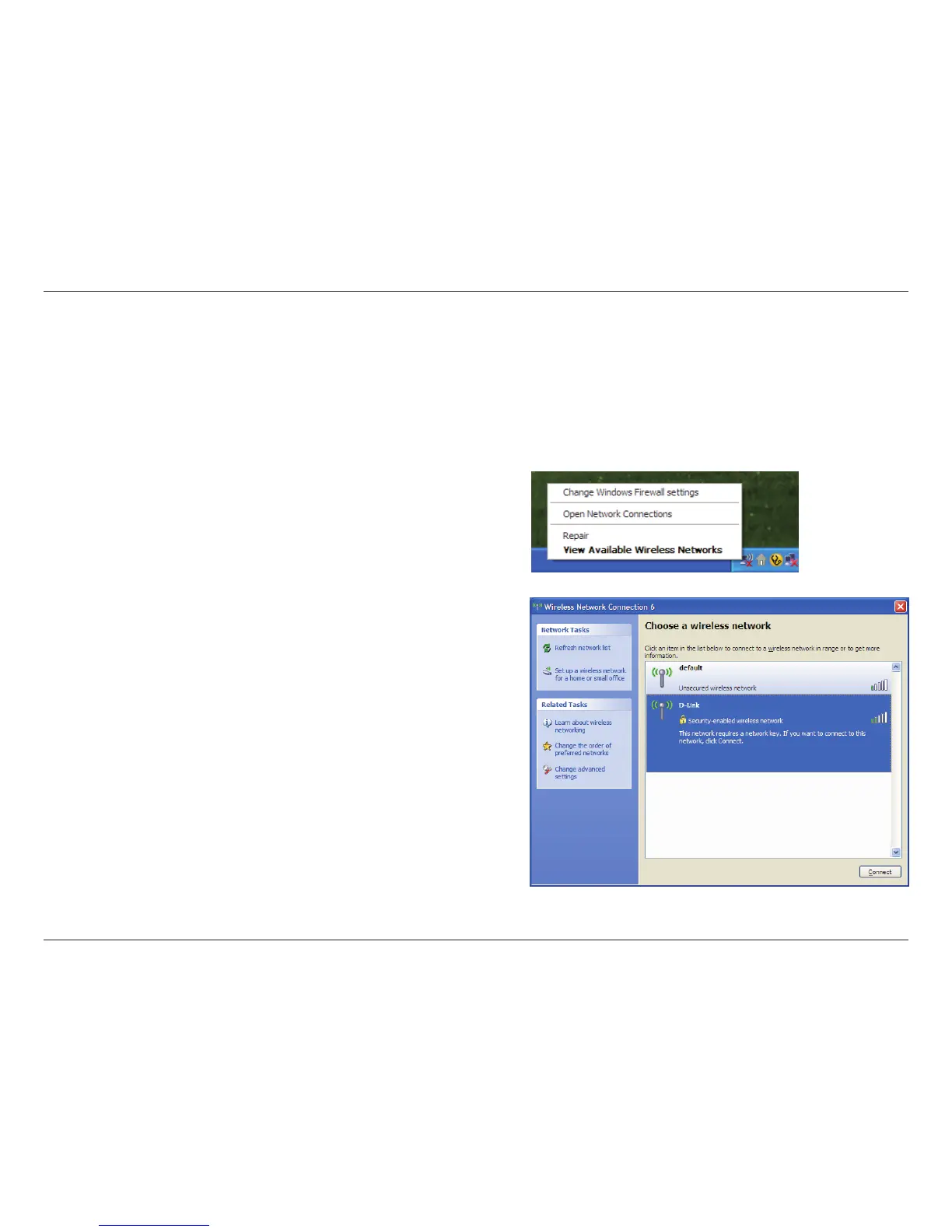

2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows
®
XP Wireless Utility by right-clicking
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available
Wireless Networks.

D-Link DWA-525 Specifications

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
operating humidity	10% to 90% maximum (non-condensing)
frequency range	2.4GHz to 2.483GHz

Weight and Dimensions

device dimensions	65x40x5mm
standard bracket weight	40.5g
short bracket weight	35.5g
