D-Link DWA-525 User Manual

41D-Link DWA-525 User Manual
Section 4 - Wireless Security
Configure WPA/WPA2 Passphrase
Using the D-Link Wireless Connection Manager
It is recommended to enable WPA-PSK on your wireless router or access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the WPA-PSK passphrase being used.
1. Open the Wireless Connection Manager by double-clicking on
the D-Link icon on your desktop.

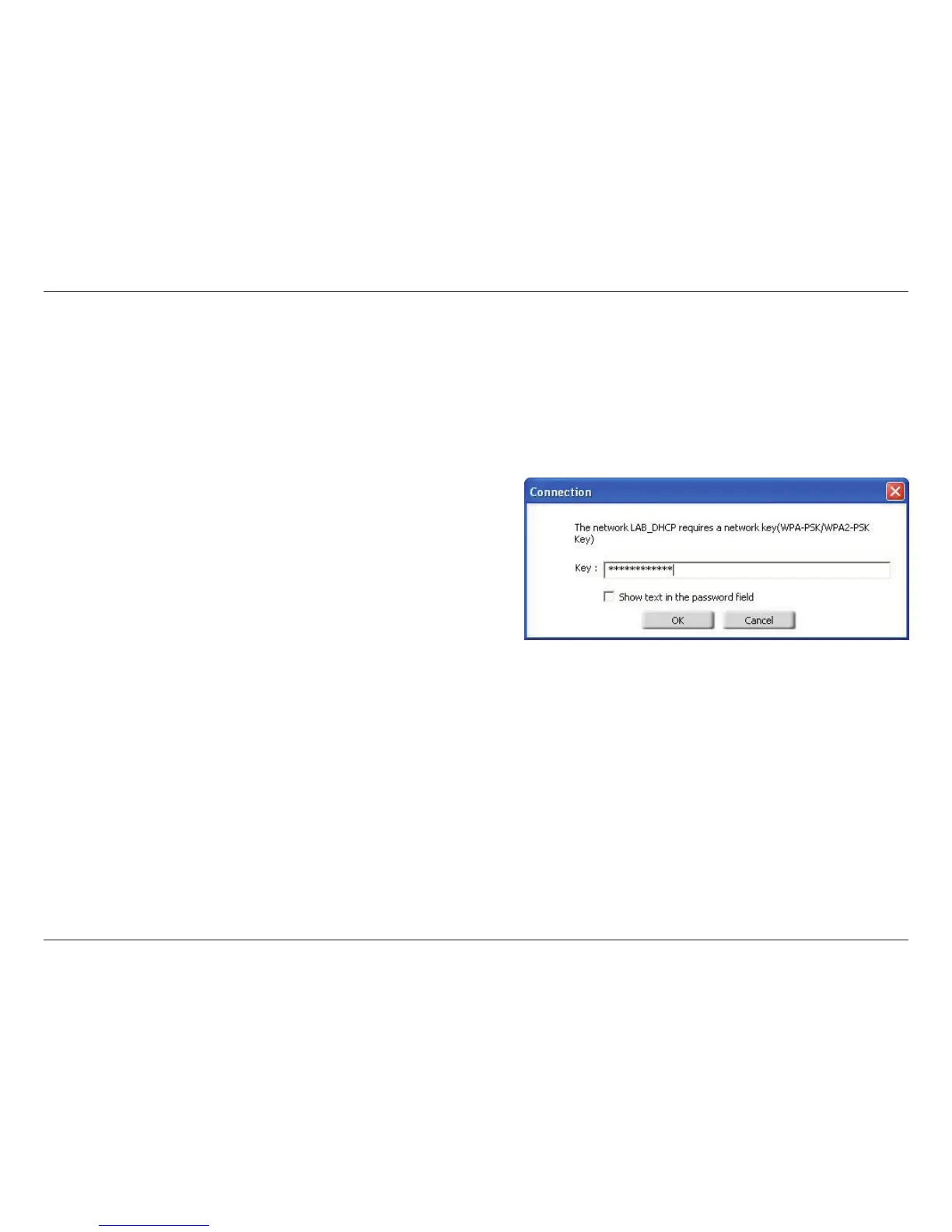

2. Highlight the wireless network (SSID) you would like to connect
to and click Connect. If the network is using WPA-PSK, the
screen (as shown to the right) will appear.
3. Enter the WPA-PSK passphrase exactly as it is on your wireless
router or access point. Click the Show text in the password
eld box to see the passphrase. Unchecking it will hide it.
4. Click OK to connect to the network. Allow up to 30 seconds to connect.
If you would like to create a new network and enter the WEP settings, refer to the next page.

D-Link DWA-525 Specifications

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
operating humidity	10% to 90% maximum (non-condensing)
frequency range	2.4GHz to 2.483GHz

Weight and Dimensions

device dimensions	65x40x5mm
standard bracket weight	40.5g
short bracket weight	35.5g
