Click Apply for the settings to take effect.
QoS > Bandwidth Control
The Bandwidth Control page allows network managers to define the bandwidth settings for a specified port’s
transmitting and receiving data rates.

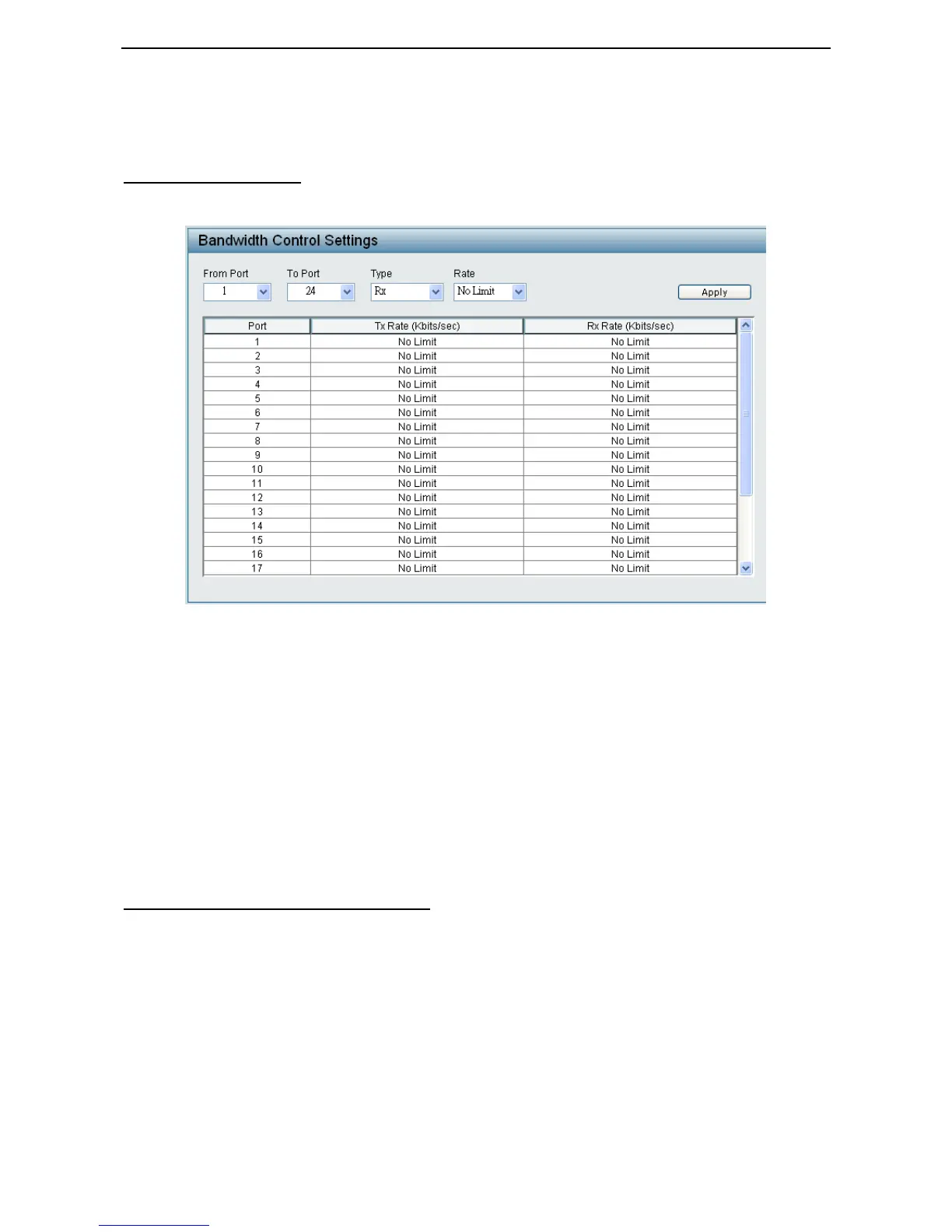

Figure 296– QoS > Bandwidth Control
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Type: This drop-down menu allows you to select between RX (receive), TX (transmit), and Both. This setting
will determine whether the bandwidth ceiling is applied to receiving, transmitting, or both receiving and
transmitting packets.
No Limit: This drop-down menu allows you to specify that the selected port will have no bandwidth limit.
Enabled disables the limit.
Rate: This drop-down menu allows you to select data rate from 64Kbps to 512Mbps.
Click Apply to set the bandwidth control for the selected ports.
Security > MAC Address Table > Static MAC
This feature provides two distinct functions. The Disable Auto Learning Excluding Uplink Port table allows
turning off the function of learning MAC address automatically, if a port isn't specified as an uplink port (for
example, connects to a DHCP Server or Gateway). By default, this feature is Off (disabled).
