77D-Link G415 User Manual
Section 3 - Conguration

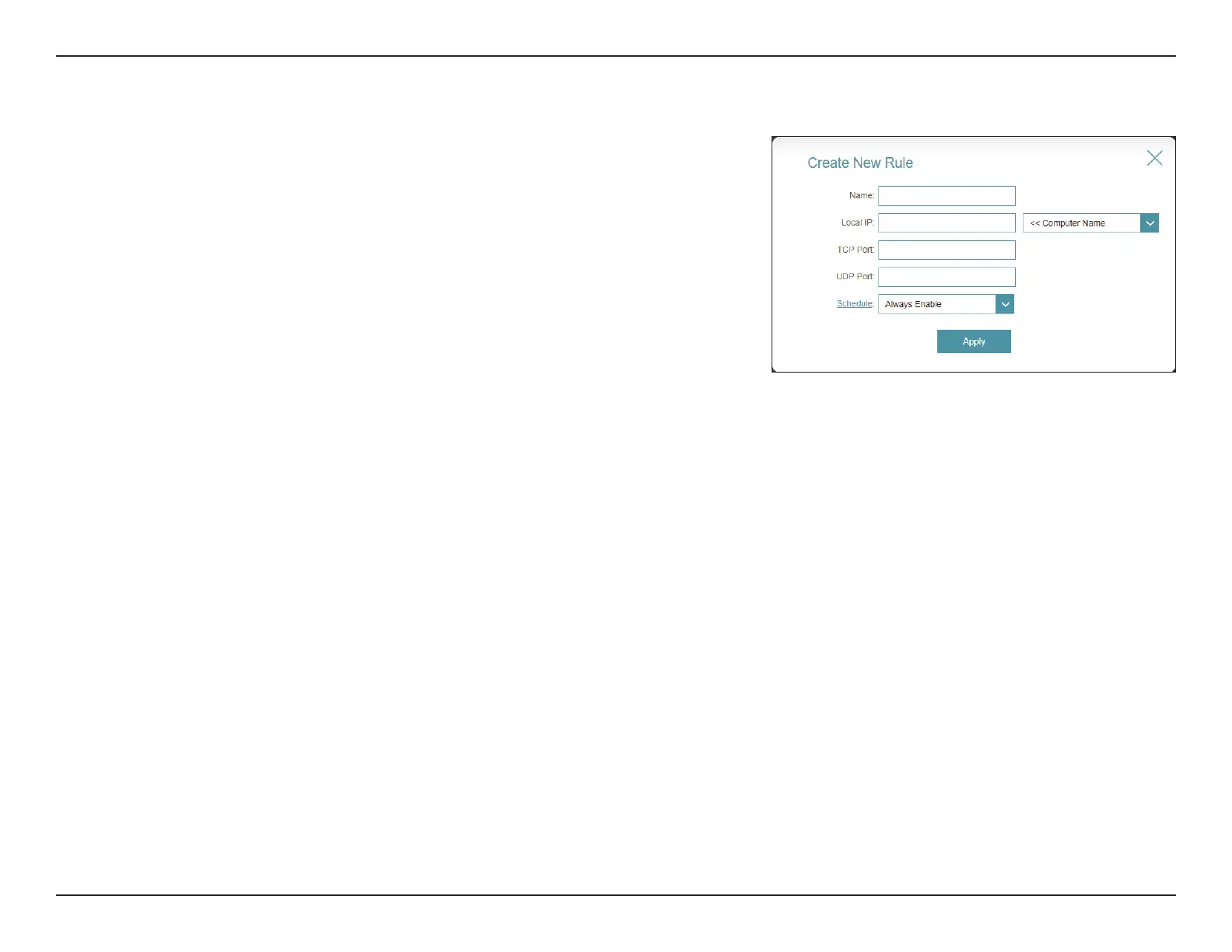

Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the computer on your local network to
which you want to direct the incoming service. Alternatively,
select the device from the drop-down menu.
TCP Port Enter the TCP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
UDP Port Enter the UDP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
Schedule Use the drop-down menu to select the time schedule during
which the rule will be active. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Management > Time & Schedule
- Schedule on page 86 for more information.
