Daewoo BC30S-2 User Manual

Power Train Disassembly & Assembly
Disassembly & Assembly
Brakes, Brake Adjuster And
Wheel Cylinder
Remove Brakes, Brake Adjuster
And Wheel Cylinder

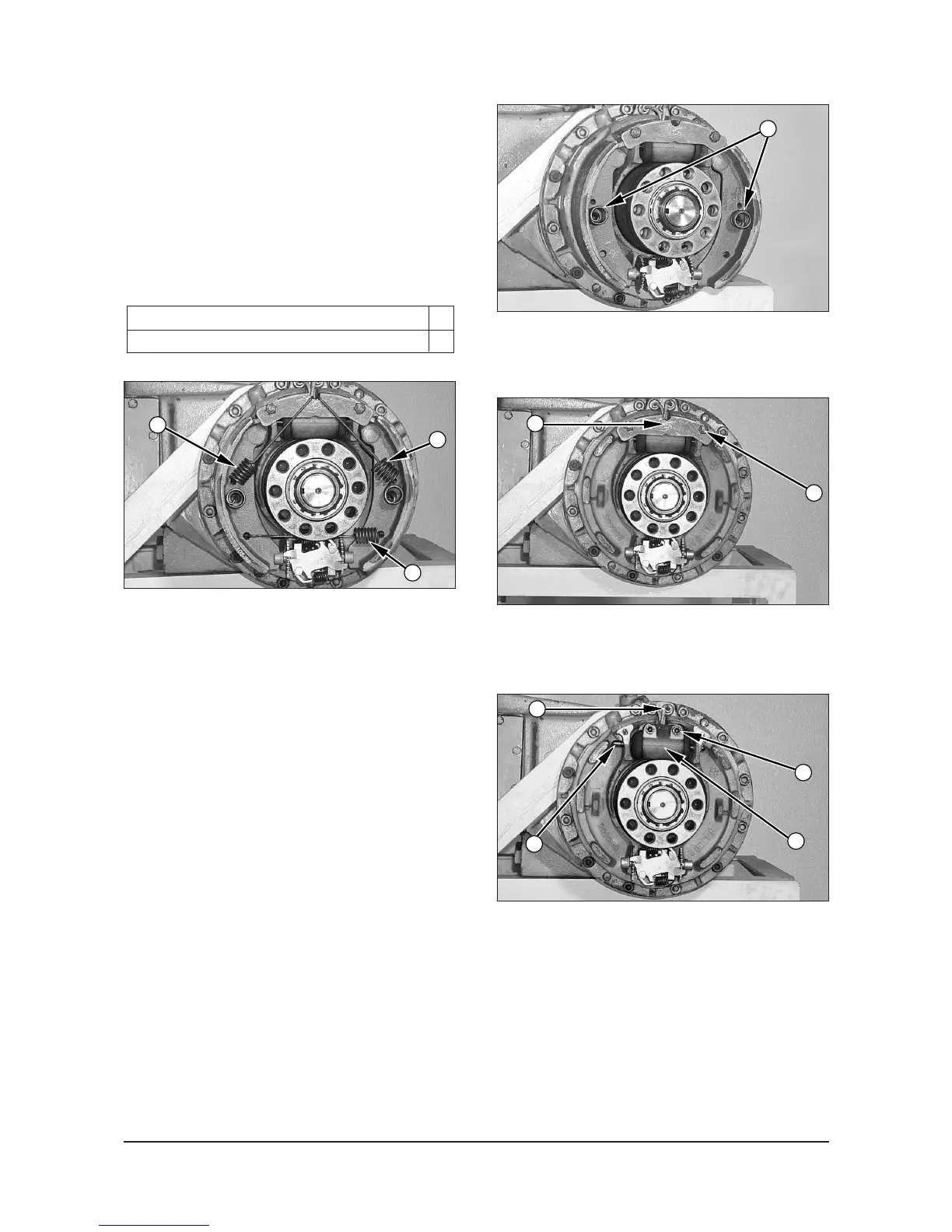

1. Put the lift truck in position on tooling (A), and
remove the drive wheels. On B20/25/30S models,
remove the brake drum also.
2. Remove brake return springs (1), (2) and (3) with
a suitable brake shoe spring tool.
3. Remove brake retainer springs (4). Remove the
brake shoes.
4. Remove bolts (6) to remove wheel cylinder cover
(5).
5. Disconnect brake lines (7). Remove plungers (8)
from the wheel cylinder.
6. Remove bolts (9) to remove wheel cylinder (10).
Tools Needed A
Jack Stand 1
36
2
3
1
4
5
6
7
9
10
8
