• If your antenna system has two sets of twin
300-ohm leads, purchase a combiner (available at
electronics stores). Place one set of twin leads
underneath the screws on the combiner and tighten
the screws. Do the same with the other set of twin
leads. Press the cable from the combiner onto the
ANT. IN terminal on the back of your VCR.
Connecting your VCR to your TV
1 Connect one end of a coaxial cable to the RF OUT
terminal on the back of the VCR.
2 Connect the other end of the coaxial cable to the
ANT. IN terminal on the back of the TV.
Connecting your VCR,
continued

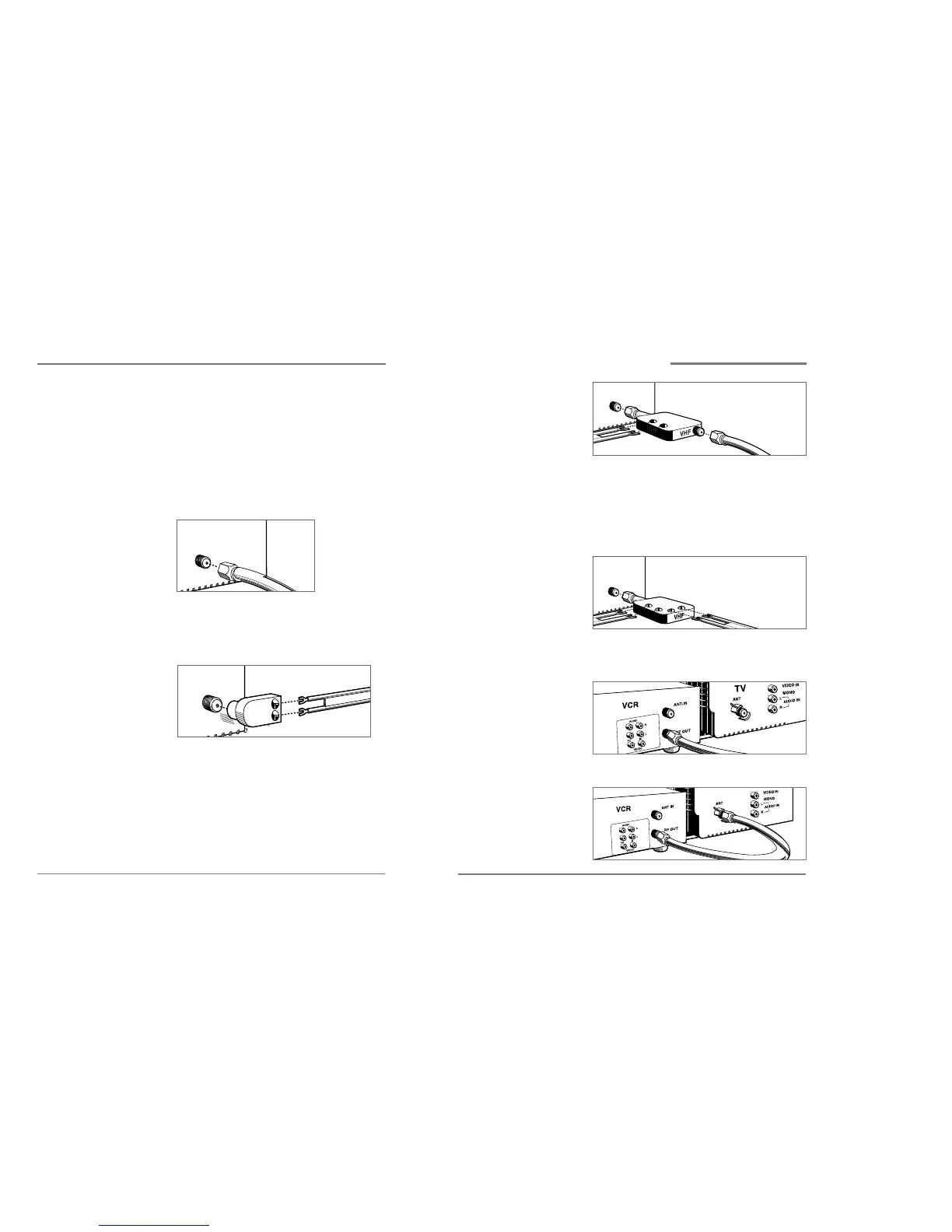

Connecting your VCR
You must connect your VCR to an external antenna or
cable system. Next you will connect the VCR to the
television. Follow the directions below to make these
connections. You will normally only make one of the
connections shown below, not all of them.
Connecting an antenna to the VCR
• If your antenna ends in a single coaxial lead,
press or screw the cable onto the ANT. IN terminal
on the back of your VCR.
• If your antenna ends in a pair of 300 ohm twin
leads, use a 300-ohm/75-ohm adapter
(Not Supplied). Place the leads underneath the
screws on the adapter, tighten the screws, then press
the adapter onto the VCR ANT. IN terminal.
Antennas with two sets of leads
You may have two sets of leads from your antenna system.
• If your antenna system has both a coaxial lead
and twin 300-ohm leads, purchase a combiner
(available at electronics stores). Press or screw the
coaxial lead onto the combiner; place the twin leads
underneath the screws on the combiner and tighten
the screws. Press the cable from the combiner onto
the ANT. IN terminal on the back of your VCR.
