3

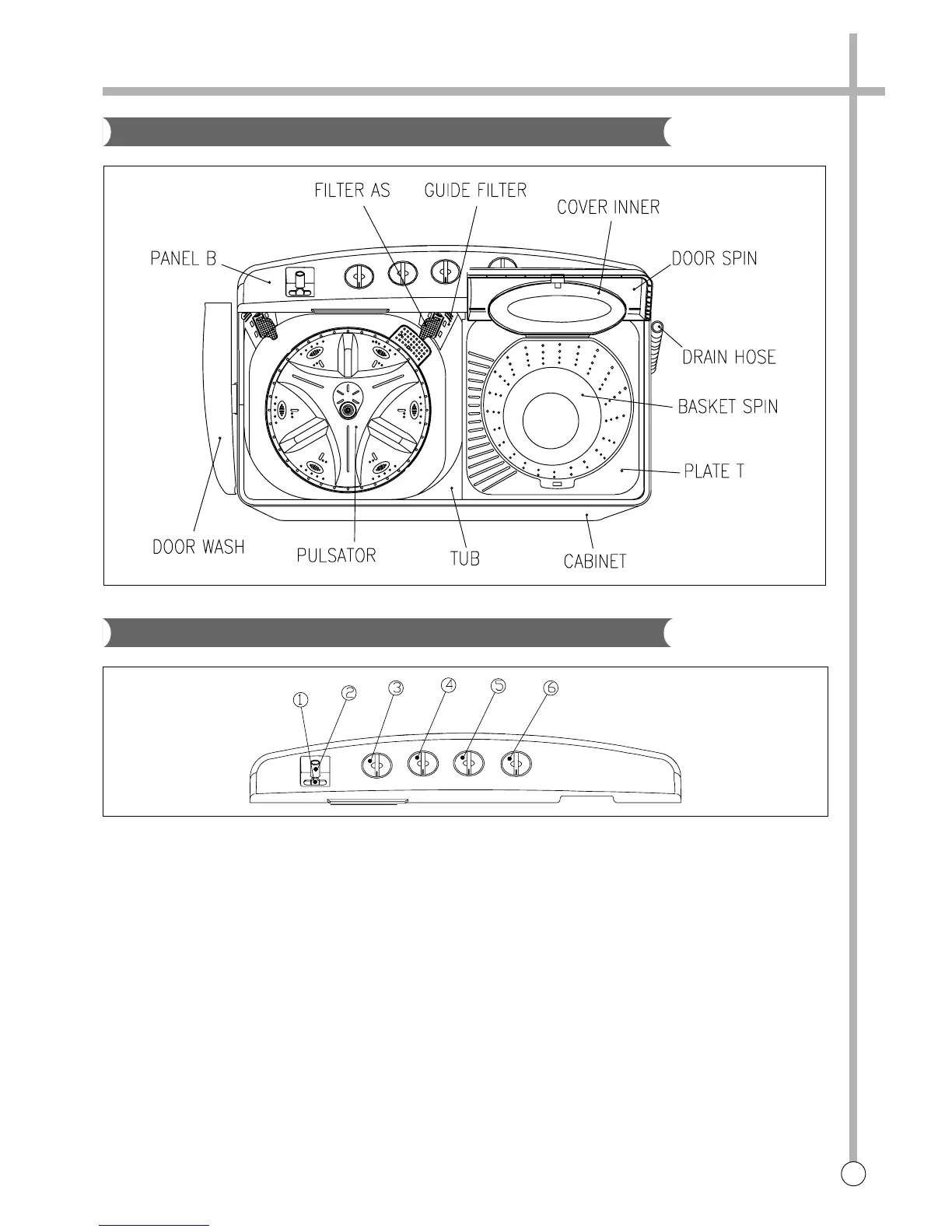

2. EXTERNAL VIEW
Structure Of The Washing Machine
Control Panel (Panel b Ass’y)
11
LEVER WATER SUPPLY SELECTOR
Left : water supply in the WASH TUB.
Right : water supply in the BASKET SPIN.
22
INLET WATER
Connect inlet hose to supply water in the WASH
TUB or BASKET SPIN.
33
WASH TIMER
Use to select the desired time for washing or rins-
ing.
44
WASH ACTION
Use to select wash action. (“STRONG”, “NORMAL”)
55
VALVE SELECTOR
Select “WASH, RINSE” for washing and rinsing, and
“DRAIN” to drain the water.
(In case PUMP MODEL turn on the drain pump)
“OFF” to turn off the drain pump. (Only PUMP
MODEL)
66
SPIN TIMER
Used to select the desired time for spinning.
To Next Page
