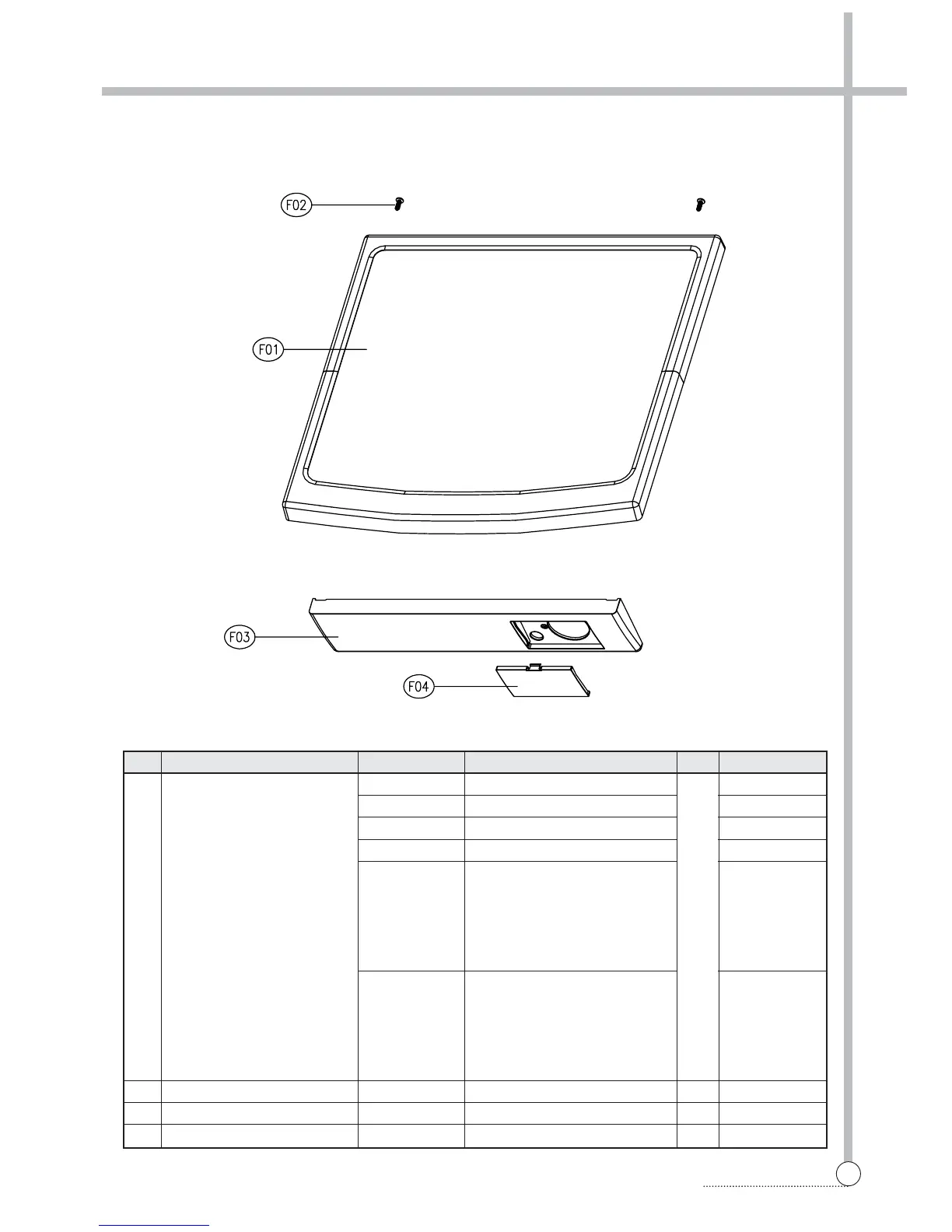

EXPLODE VIEW AND PARTS LIST
■ PLATE T AS + PANEL LOWER AS
3614532900 DWD-800W(HIPS, MFC, WH) DWD-F1411(2)
3614532910 ABS+UV SPRAY, MFC, SILVER DWD-F1413
3614532920 DWD-F142X(HIPS, MFC, WH) DWD-F1421(2)
3614532930 ABS+UV SPRAY, MFC, SILVER DWD-F1423
3614533300 FX1X31~2, 41~2(HIPS, MFC, WH) DWD-F1431(2)
DWD-F1441(2)
F01 PLATE TOP AS
DWD-F1451(2)
DWD-F1461(2)
DWD-F1471(2)
3614533310
F3~F4'S, SPRAY(ABS, MFC, SILVER)
DWD-F1433
DWD-F1443
DWD-F1453
DWD-F1463
DWD-F1473
F02 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 2
F03 PANEL LOWER 3614282801 HIPS 1
F04 COVER PUMP FILTER 3611425801 HIPS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
1
