14

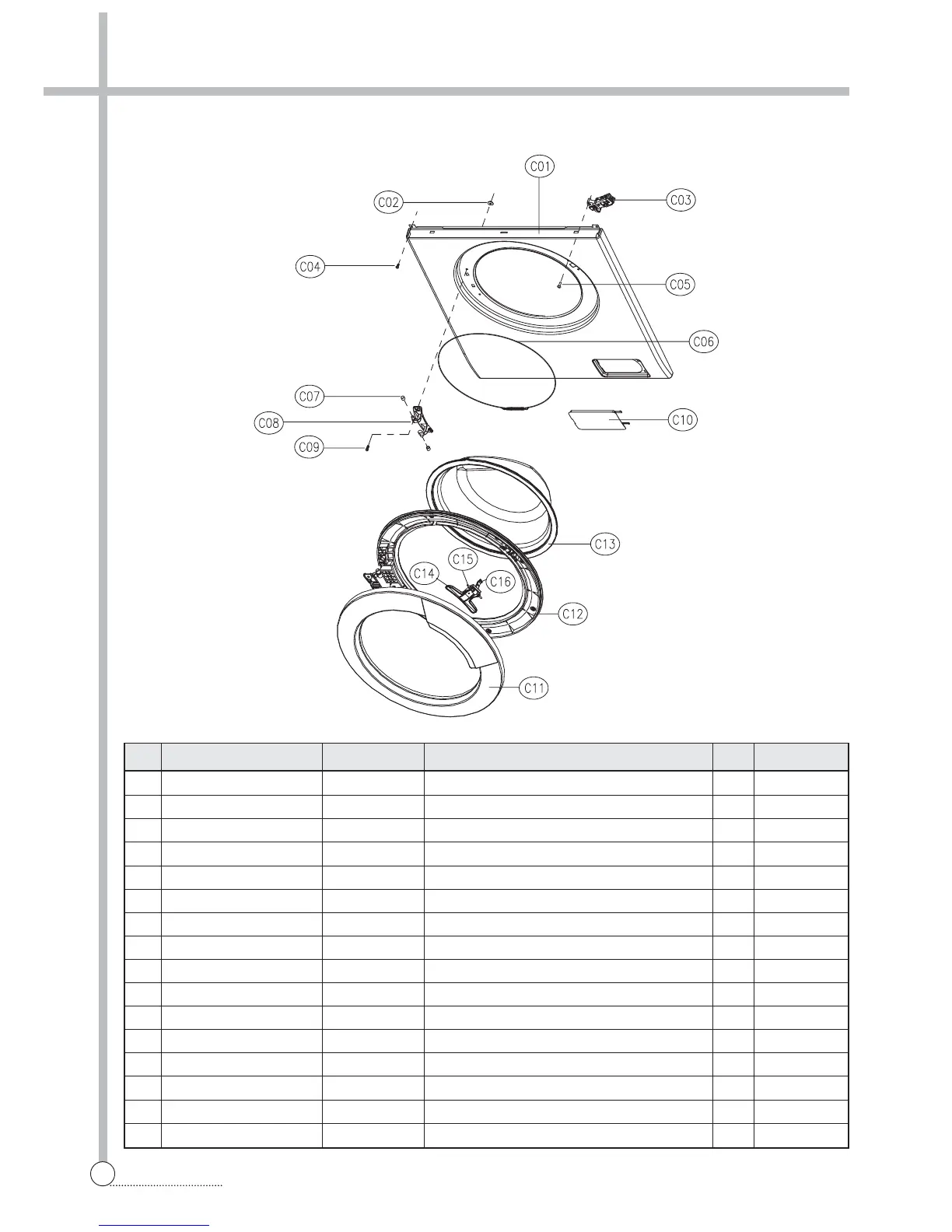

EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
C01 CABINET F 361081280T SECD T0.7 1
C02 NUR HEX 7S627W50X1 NUT FLANGE M5x0.8P MFZN 2
C03 SWITCH DOOR LOCK 3619047100 DL-LC BITRON-3P 250V16A 1
C04 SCREW TAPPING 3616029950 TTS " S" HEX F/L 4x8 5
C05 SCREW TAPPING 7122401408 T2S TRS 4x14 SUS 2
C06 CLAMP DOOR AS 3611204810 HSW3, D1.4 1
C07 CAP HINGE DOOR 3610916500 POM 4
C08 HINGE DOOR 361290370T ALDC 1
C09 SCREW TAPPING 3616051229 STS430 F/L BOLT(SE) 5x12 2
C10 COVER PUMP 3611428500 HIPS 1
C11 FRAME DOOR O 36122UDS00 ABS 1
C12 FRAME DOOR I 361220870T PP 1
C13 DOOR GLASS 361A11070T GLASS PI300 1
C14 HANDLE DOOR 3612613800 ABS 1
C15 PIN HANDLE 3618200200 SUS304, D3, L48 1
C16 HOOK DOOR 3613101210 ZNDC 5.5K 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
