THE REPAIR
ecitoNssecorP.oN
Disassemble 1
1
2
3
4

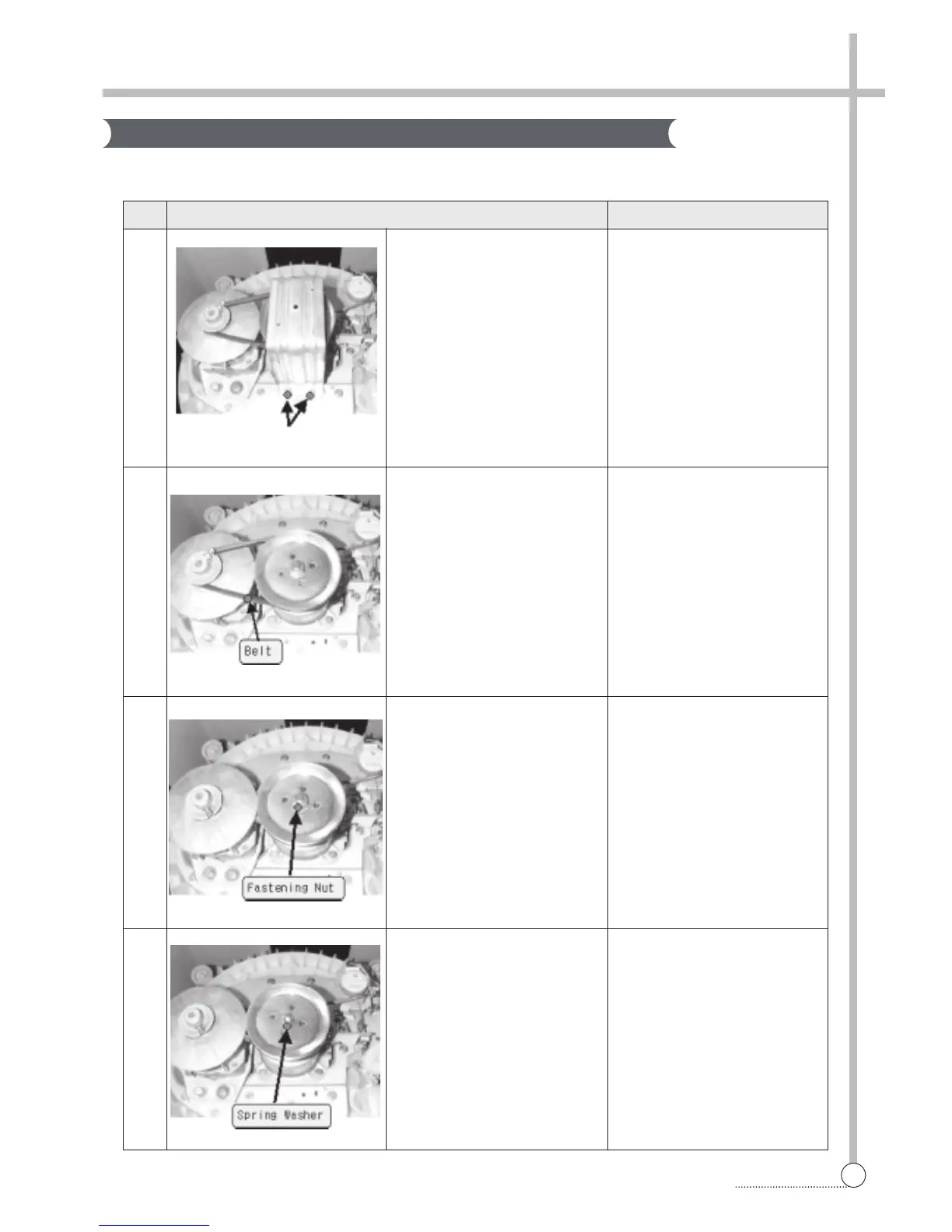

Release screws marked 4-point.
Remove the protector
Remove the v-belt.
Loosen the fastening nut.
Disassemble the spring washer.
Use wrench or driver
- ratchet handle
- extension bar
- socket : 10mm
Use fixing jig for pulley as
to see fig 1 and 17mm-socket
for nut.
Take out plain washer if it has.
The Process Of Disassemble
