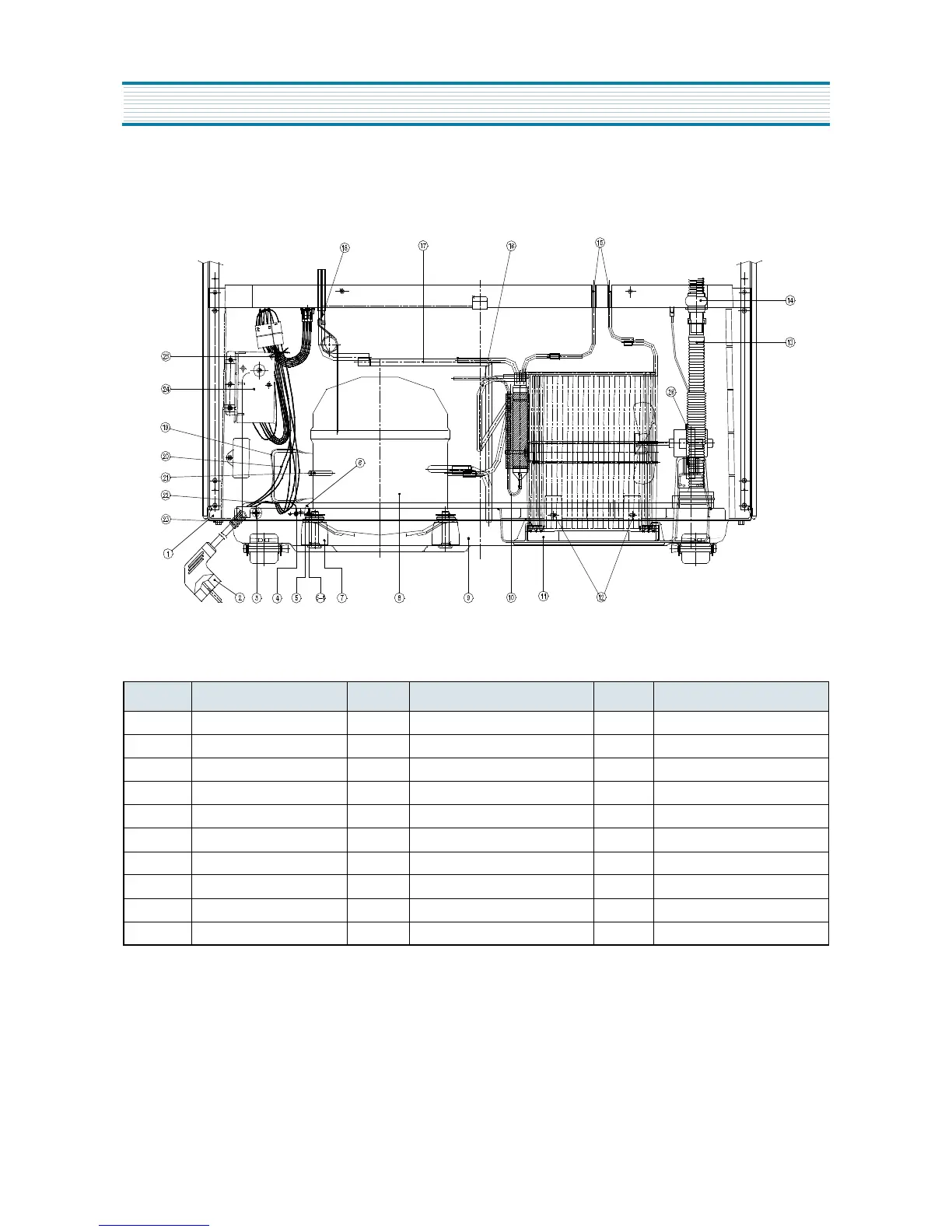

3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
1) FR-4506K
NO PART NAME NO PART NAME NO PART NAME
1 BASE CAB 10 DRYER AS 20 COVER RELAY
2 CORD POWER 11 CASE VAPORI AS 21 PIPE SERVICE
3 SCREW TAPPING 12 SCREW TAPPING 22 SWITH P-RELAY AS
4 SCREW MACHINE 13 HOSE DRN A 23 SCREW SPECIAL
5 WASHER TOOTH 14 HOSE DRN B 24 BOX POWER AS
5-1 SCREW MACHINE 15 PIPE HOT 25 WIRE BIND BAND
6 HARNESS EARTH 16 PIPE CONN A 26 ABSORBER C MOTOR
7 ABSORBER COMP 17 PIPE SUC CONN
8 COMPRESSOR 18 PIPE SUCTION AS
9 BASE COMP 19 BAND RELAY
EXPLODED VIEW AND PARTS LIST
