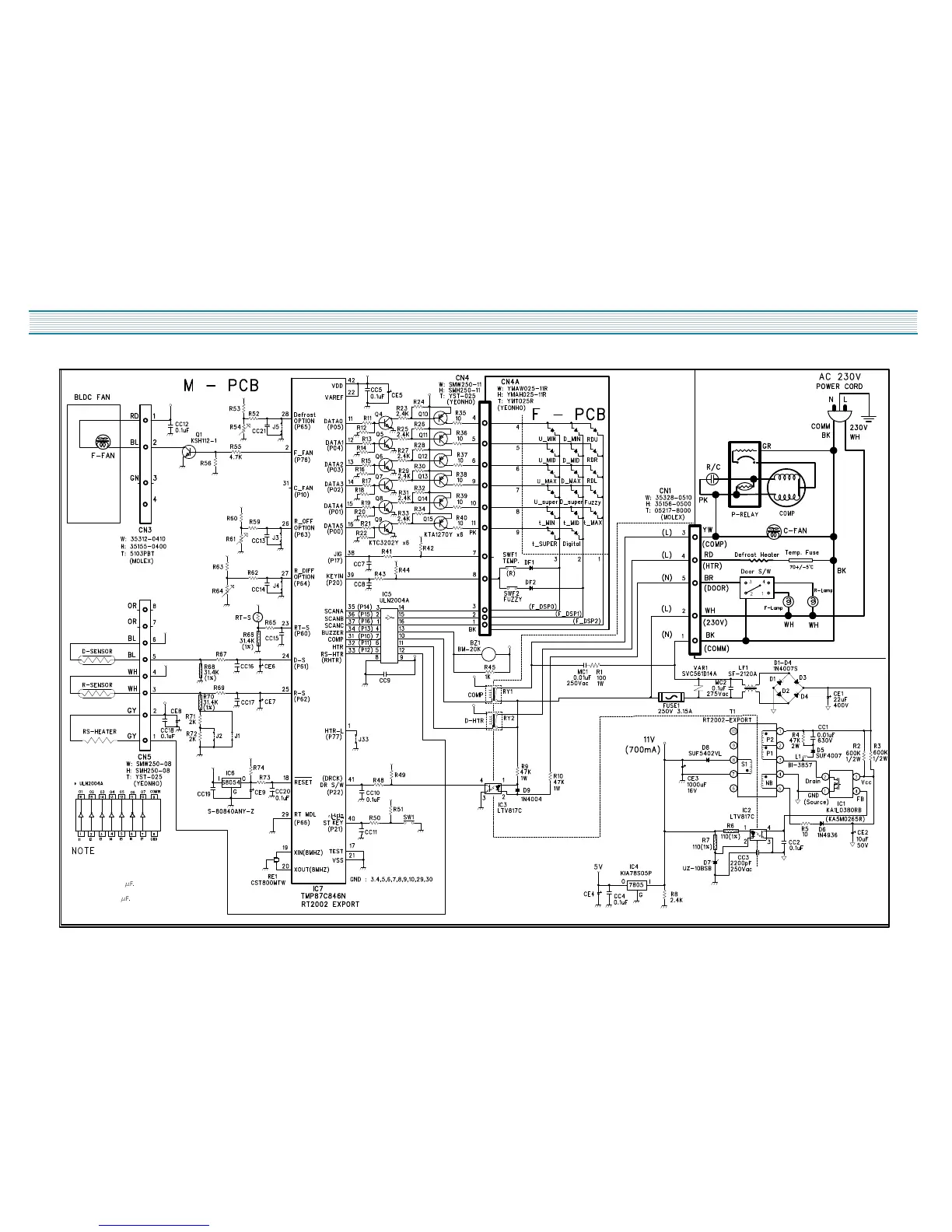

Daewoo FR - 590NT - 2. CIRCUIT WIRING DIAGRAM

1. The RESISTOR value which has not displayed time
constant is 10K 1/4W.
2. The CERAMIC CONDENSOR which been displayed
time constant is 0.01
3. The CONDENSER which has not been displayed
time constant is 10
4. The DIODE which has not been displayed its model
name is IN 4148.
DIAGRAM
2. CIRCUIT WIRING DIAGRAM
24
