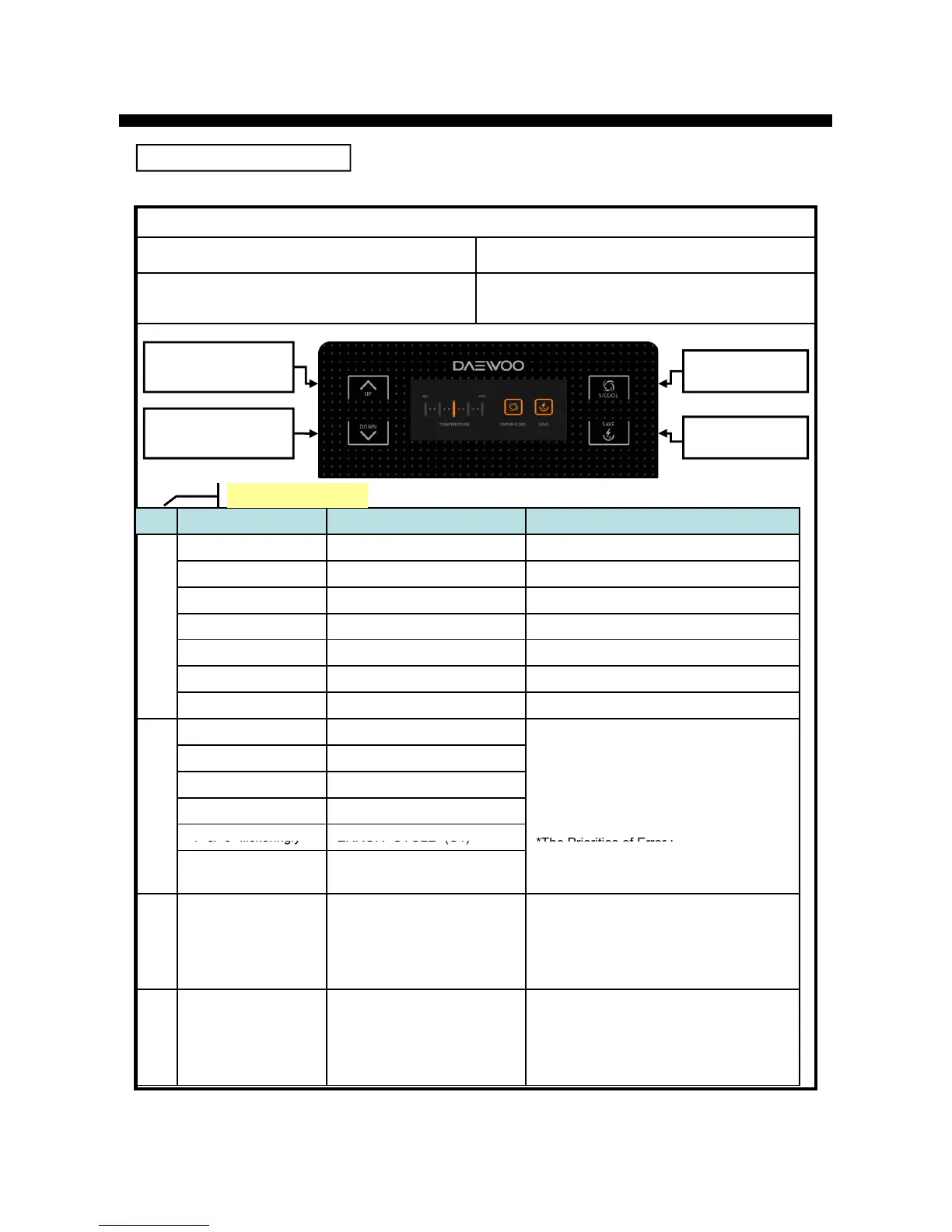

7-1. DISPLAY
7. PCB CONTROL FUNCTION
INPUT CONTROL OBJECT
● PCB Control Panel Buttons ● PCB Control Panel LED
Temperature adjustment
button for refrigerator
compartment.(+)
“Super Cool” button
LED DISPLAY FUNCTION OPERATION
REFERENCE PAGE
Temperature adjustment
button for refrigerator
compartment.(-)
“SAVE” button
17 LED “3” on TEMP STEP “3” Control by pushing “UP”,”DOWN” button
LED “4” on TEMP STEP “4” Control by pushing “UP”,”DOWN” button
LED “5” on TEMP STEP “5” Control by pushing “UP”,”DOWN” button
LED “1” on TEMP STEP “1” Control by pushing “UP”,”DOWN” button
LED “2” on TEMP STEP “2” Control by pushing “UP”,”DOWN” button
LED “S-COOL” on TEMP S-COOL Push “S-COOL” button 1 time.
LED “SAVE” on TEMP SAVE Push “SAVE” button 1 time.
23
“3” flickeringly
ERROR “R SENSOR” (R1) <How to enter Error Mode>
Push “UP” button for continuously and
“DOWN” button 5 times.
If there is no error (normal), “4” and “5”
LED flickers.
*The Priorities of Error :
“2” flickeringly ERROR “RT SENSOR” (RT)
“1” flickeringly ERROR “D SENSOR” (D1)
“2” & ”3” flickeringly ERROR “DOOR S/W” (DR)
“
1
”
&
”
3
”
flickeringly
ERROR
“
CYCLE
”
(C1)
*The Priorities of Error :
R SENSOR> RT SENSOR> DR S/W>
CYCLE> DEFROST
1 & 3 flickeringly
ERROR CYCLE (C1)
“1” & ”2” flickeringly ERROR “DEFROST” (F3)
18 “3” & “S-COOL” on,
“4” & ”5” flickeringly
Forced Defrost Test Push “UP” button for continuously and “S-
COOL” button 5 times.
<Display>
Push “UP” button for continuously and
“DOWN” button 5 times.
21 “1” & “S-COOL” on “4”
& ”5” flickeringly
Short Circuit Test Push “SAVE” button for continuously and
(Pull Down Test) “DOWN” button 10 times.
<Display>
Push “UP” button for continuously and
“DOWN” button 5 times.
19
