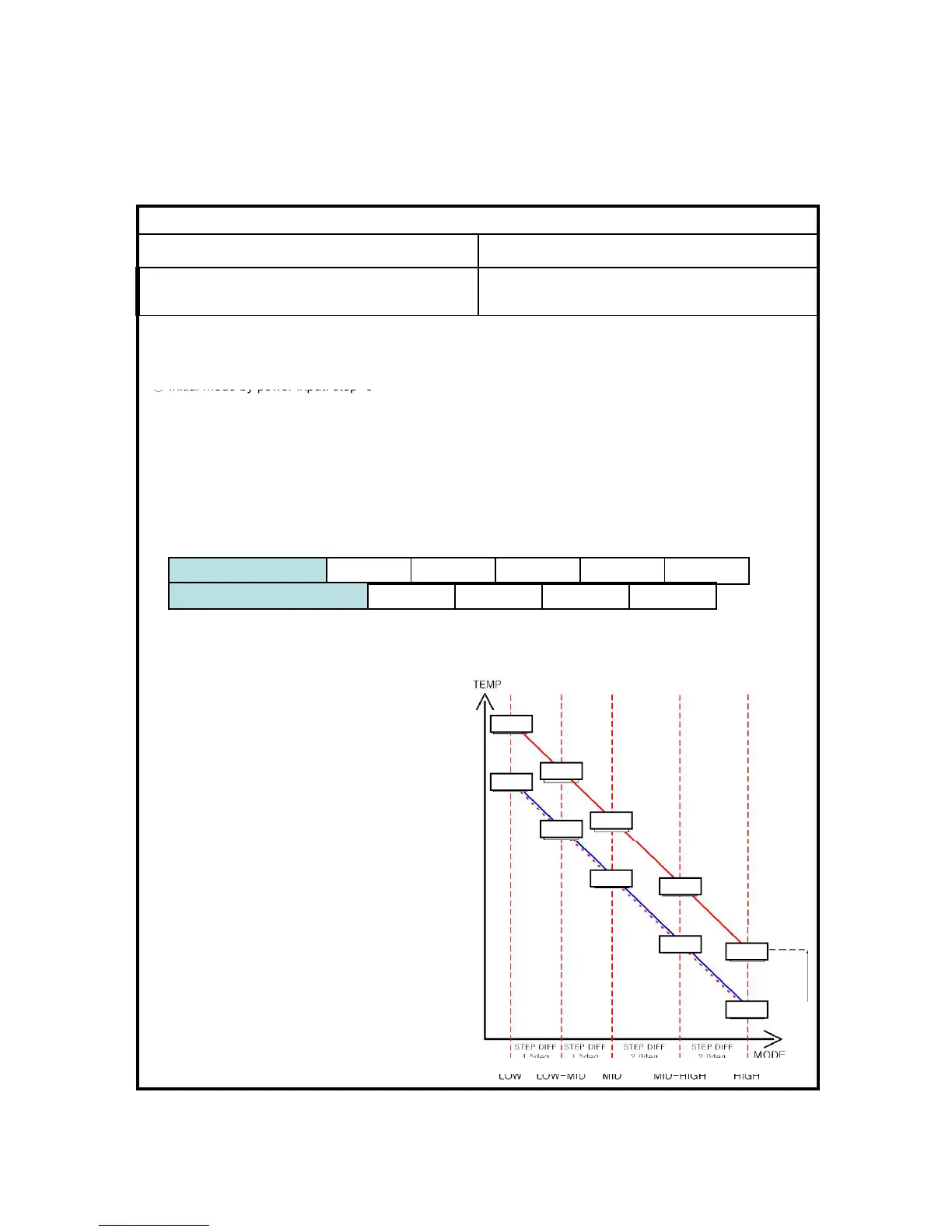

7-2. Temperature Control of Refrigerator Compartment
INPUT CONTROL OBJECT
● PCB Control Panel “TEMP” Buttons
● R-sensor
● PCB Control Panel LED
● COMPRESSOR, FAN
A. “TEMP UP, DOWN” Button
ⓐ Temperature control of Refrigerator compartment
ⓑ 5 step mode of successive temperature mode
Initial mode by power input: step
ⓓ Temperature will be set if the button doesn’t get pressed again within 5 sec.
※ Whenever pressing “UP” button, setting is repeated in the order of
“1” → “2” → “3” → “4” → “5” (LED LAMP ON)
※ Whenever pressing “DOWN” button, setting is repeated in the order of
“5” → “4” → “3” → “2” → “1” (LED LAMP ON)
B. Temperature of Refrigerator Control
ⓐ COMP and FAN will be controlled by the on/off condition of each mode.
Temperature Difference of Refrigerator each step :
ⓒ Temperature of Refrigerator
at step “3” OFF point: 1.8°C
Temperature Step “1” “2” “3” “4” “5”
Temp. Diff. of Each Step
1.0°C1.0°C1.0°C1.0°C
.
Difference: 0.7°C
C. “S-COOL” MODE
ⓐ Press S-COOL SWITCH
and make S-COOL led lamp on.
ⓒ COMP & FAN are on until R-sensor
reaches to “Over Refrigeration
3.8°C
2.8°C
4.5°C
3.5°C
2.5°C
OFF Point”, -7°C
ⓓ After the reach of -7°C , STEP “5” mode continues.
ⓑ When “S-COOL” MODE (Quick Refrigeration Mode)
lasts for about 40 minutes, it returns to general
operation mode.
D. Temperature of Freezer Control
-It will be only controlled by using
1.8°C
0.8°C
0.5°C
1.5°C
OFF
“KNOB F LOUVER” in Freezer.
STEP “1” “2” “3” “4” “5”
-0.2°C
ON
20
