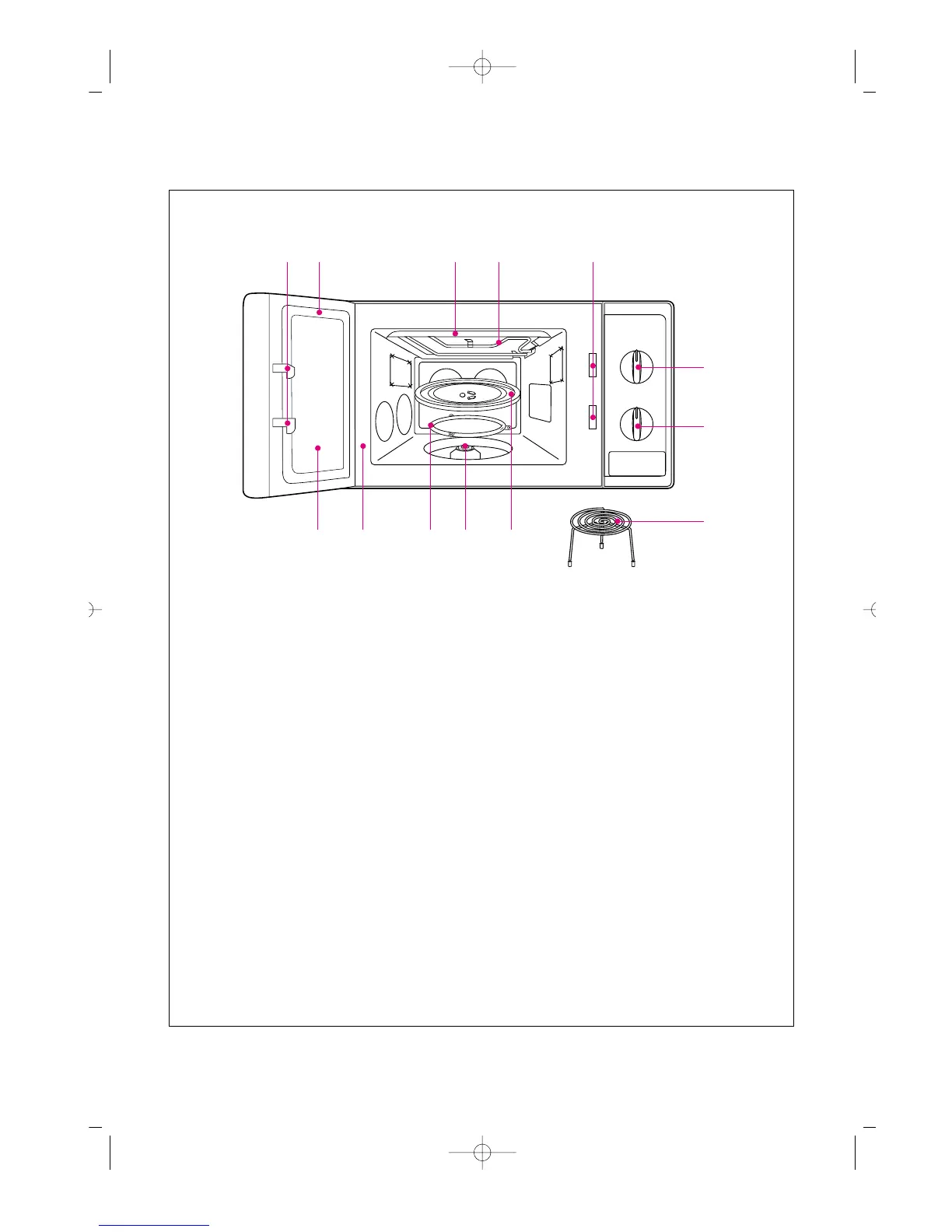

FEATURES DIAGRAM (KOG-37D7)
1. Door seal - Door seal maintains the microwave energy within the oven cavity and prevents
microwave leakage.
2. Reflector (Insulator Heater)
3. Heating Element
4. Oven cavity
5. Safety interlock system
6. Knob V.P.C - Used to select a microwave power level.
7. Knob timer - Used in setting cooking time for all functions.
8. Metal Rack
9. Coupler - This fits over the shaft in the center of the ovens cavity floor. This is to remain in the
oven for all cooking.
10. Roller guide - This must always be used for cooking together with the glass cooking tray.
11. Glass cooking tray - Made of special heat resistant glass. Food in a proper receptacle is placed
on this tray for cooking.
12. Door viewing screen - Allows viewing of food. The screen is designed so that light can pass
through, but not the microwave.
13. Door hook - When the door is closed, it will automatically shut off. If the door is opened while the
oven is operating, the magnetron will immediately stop operating.
14. Door release button - By pushing this button the latch system cuts off all circuits and stops the
oven before the door is opened.
