Door latch - When the door is closed, it will automatically shut off. If the door is opened while the oven is operating,
the magnetron will automatically shut off.
22
Door seal - The door seal surfaces prevent microwaves escaping from the oven cavity.
33
Oven cavity
44
Control panel
55
Coupler - This fits over the shaft in the center of the oven cavity floor.
This is to remain in the oven for all cooking.
66
Roller guide - This must always be used for cooking together with the glass cooking tray.
77
Glass cooking tray - Made of special heat resistant glass. The tray must always be in proper position before oper-
ating. Do not cook food directly on the tray.
88
Viewing screen - Allows viewing of food.
The screen is designed so that light can pass through, but not the microwave.
99
Waveguide cover - Protects the microwave outlet from splashes of cooking foods.
00
Safety interlock system
qq
Oven lamp - Automatically turns on during oven operating.

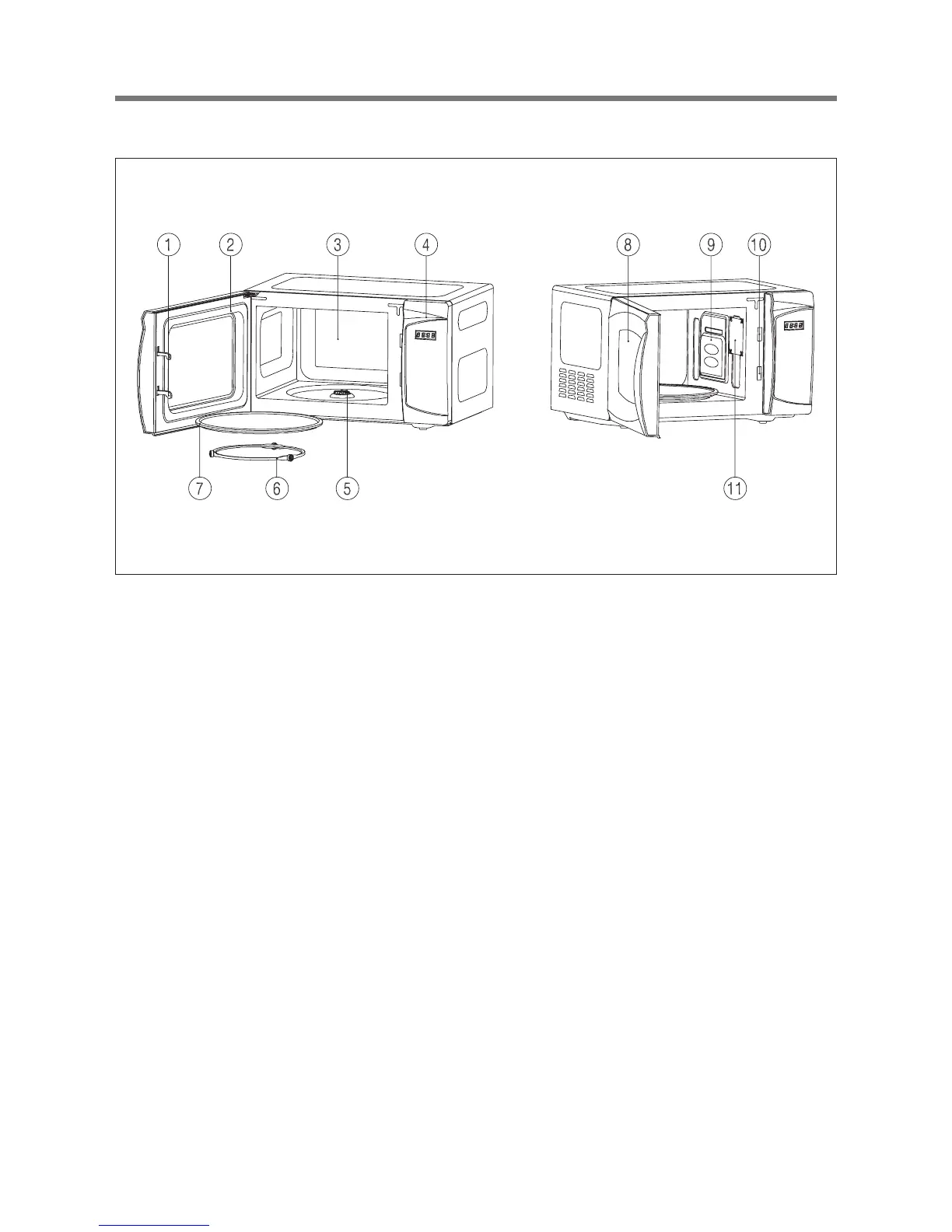

2. FEATURES DIAGRAM
