Si12-891 Removal of PCB
Removal Procedure 9

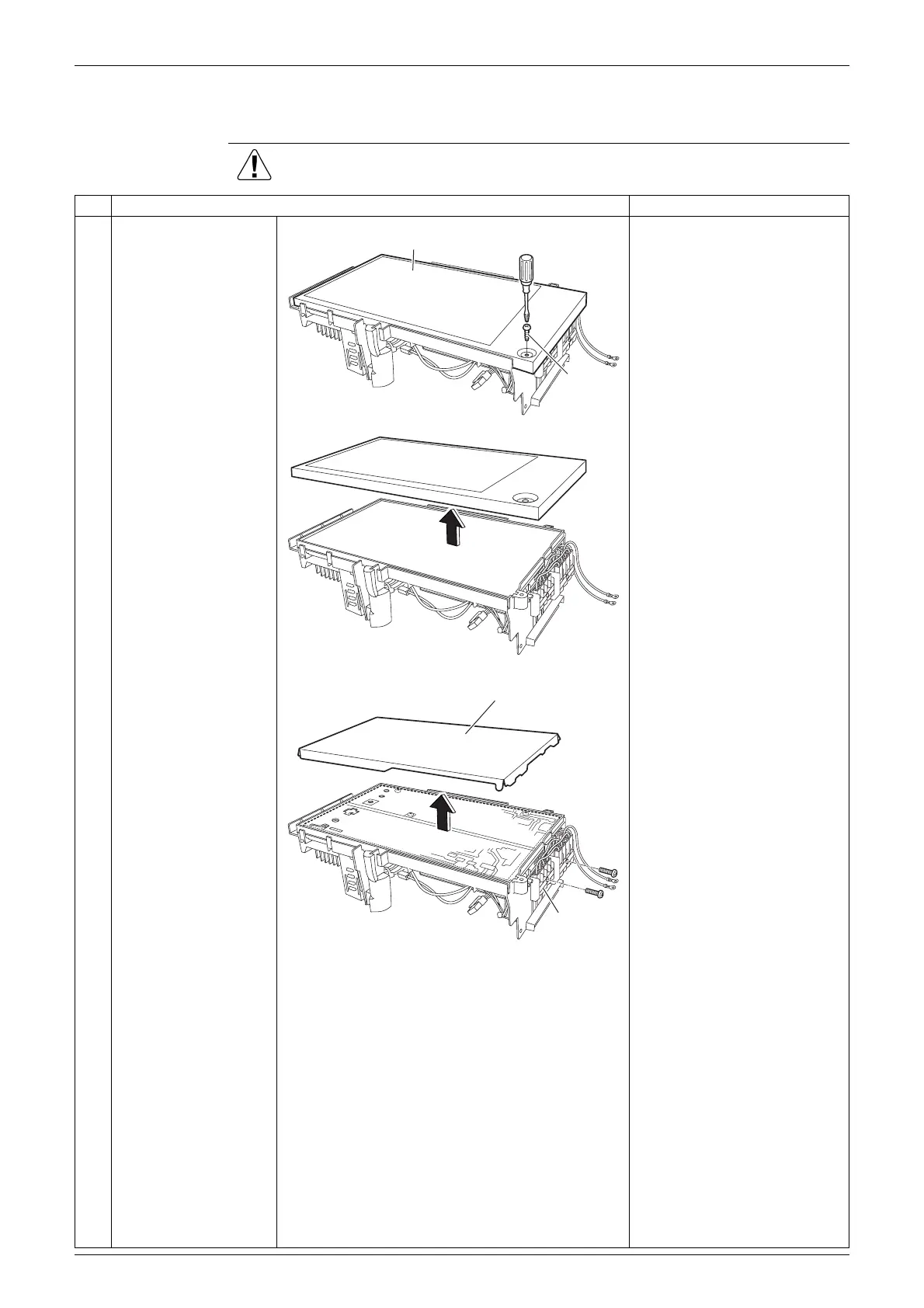

3. Removal of PCB
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the screw and
remove the electrical
box cover.
Preparation
Remove the panels
according to the “Removal of
Outer Panels”.
Remove the electrical box
according to the “Removal of
Electrical Box”.
2
Detach the insulation
sheet.
The trimmed part goes front.
3
Remove the 2 screws
and remove the
terminal boards.
The thermal fuse is united
with terminal board.
(R12538)
Electrical box cover
M4 × 12
(R12539)
(R12772)
Insulation
sheet
Terminal
board
To Next Page
