SiUS121736EA Wired Remote Controller

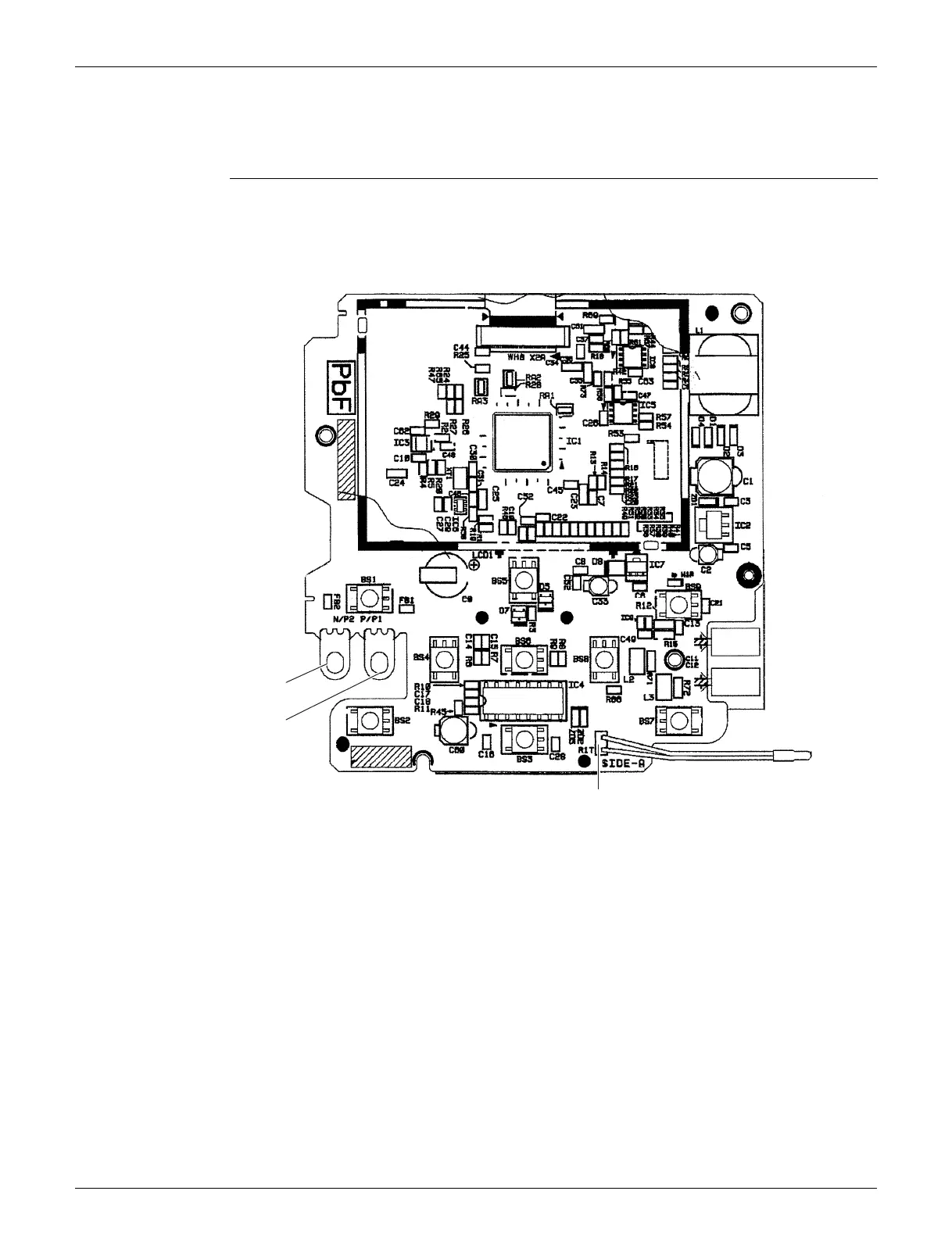

Printed Circuit Board Connector Wiring Diagram 40
3. Wired Remote Controller
3.1 BRC1E73
Wired Remote
Controller PCB
1) P1, P2 Terminal for indoor unit
2) R4T Room temperature thermistor
P2
R4T
P1
2P298037-7
