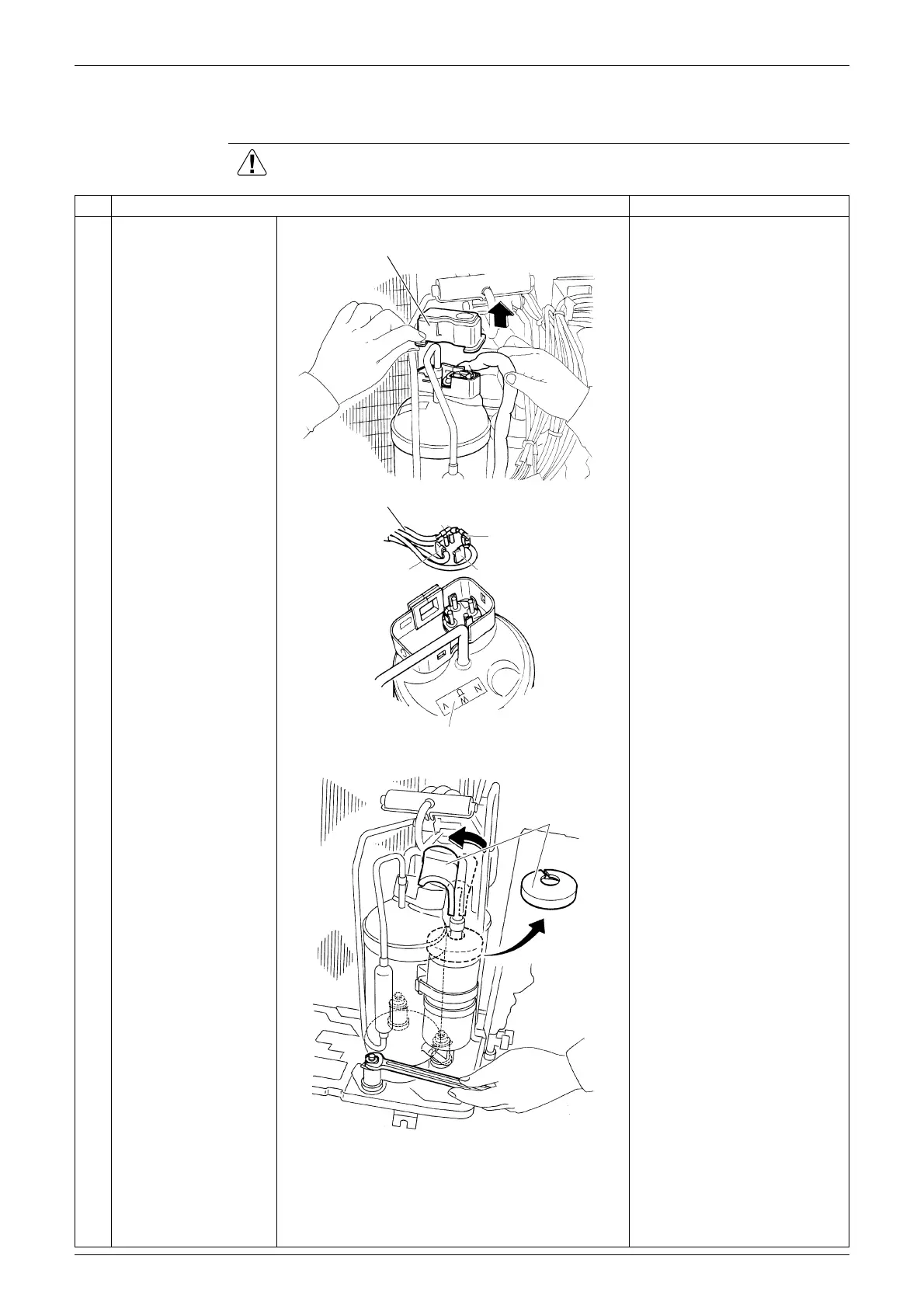

Removal of Compressor Si12-793
18 Removal Procedure
9. Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
2
Remove the terminal
cover.
Disconnect the
compressor lead wires.
3
Remove the 2 sheets of
putty.
4
Remove the 3 nuts.
Terminal cover
Compressor lead wire
V (yellow)
W (blue)
U (red)
N
(brown)
Terminal nameplate
(R16026)
(R2205)
Putty
(R10373)
