CAUTION

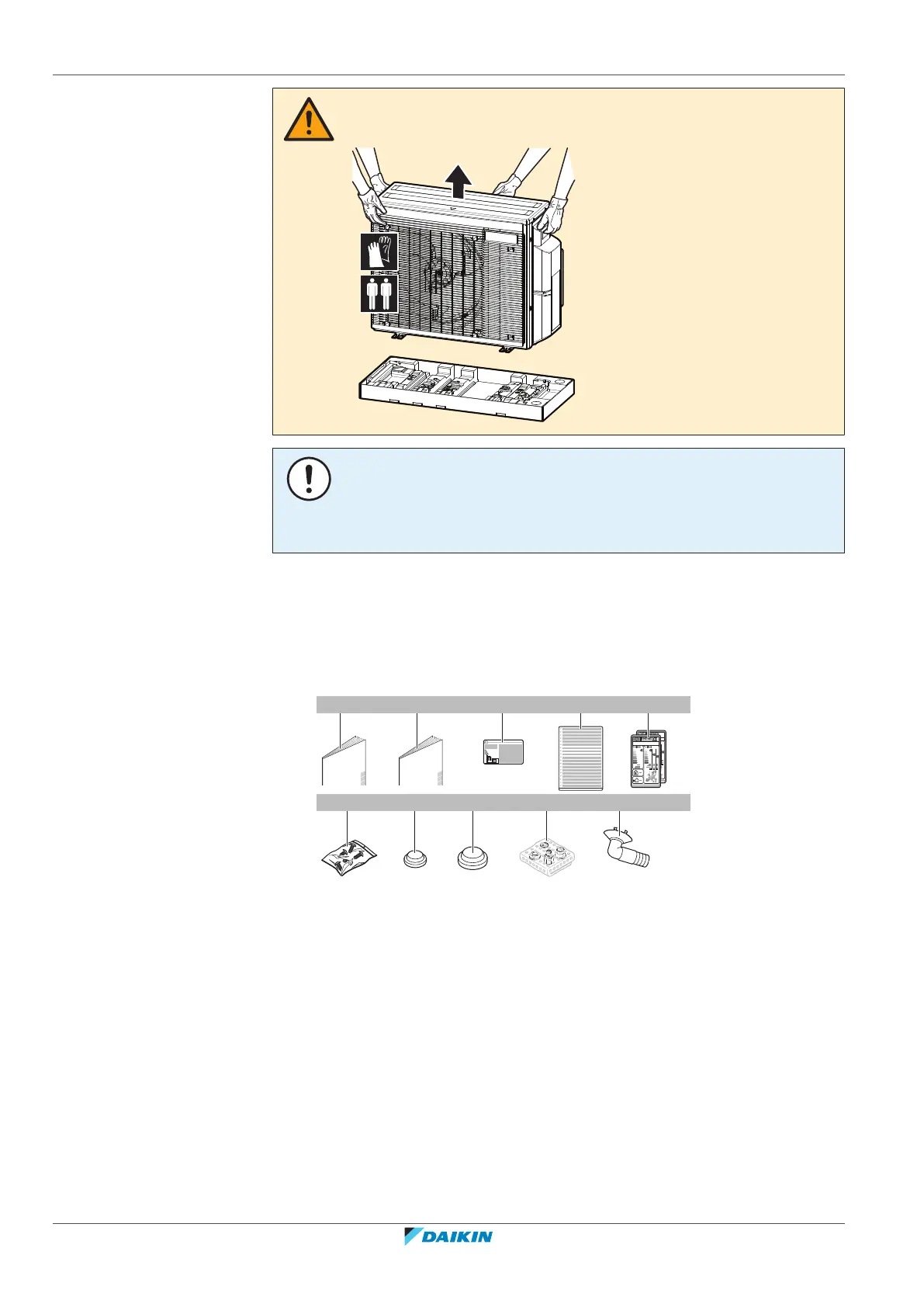

ONLY handle the outdoor unit as follows:
NOTICE
▪ Place the unit on a flat surface.
▪ Make sure the aluminium fins on the unit are straight before installation. If not,
straighten them with a fin comb (field supply).
4.1.3 To remove the accessories from the outdoor unit
1 Lift the outdoor unit.
2 Remove the accessories from the bottom of the package.
3 Make sure you have all following accessories delivered with the unit:
1× 1× 2×
1×
6×
1×
a
1×
b c d e
3×
1×
1×
i j
g h
f
a Outdoor unit installation manual
b General safety precautions
c Fluorinated greenhouse gases label
d Multilingual fluorinated greenhouse gases label
e Energy label
f Screw bag. The screws will be used for fixing the electrical wire anchor bands.
g Drain cap (small)
h Drain cap (large)
i Reducer assembly
j Drain socket
