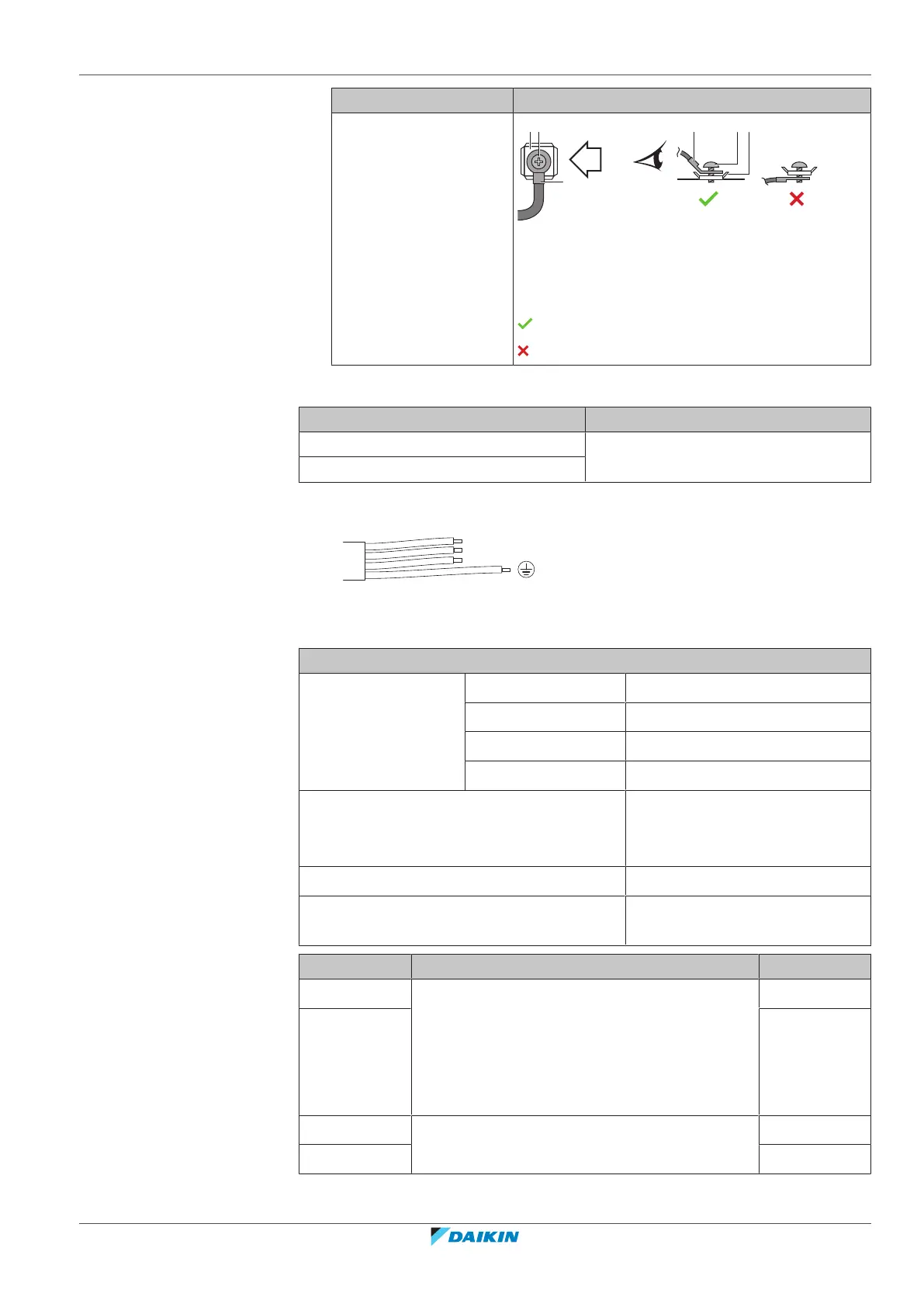

9 | Electrical installation
Installer reference guide
53
2MXM-A, 3MXM-A, 4MXM-A, 5MXM-A
R32 Split series
4P600463-5E – 2021.12
Wire type Installation method
Stranded conductor wire
with round crimp-style
terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
Allowed
NOT allowed
Tightening torques
Item Tightening torque (N•m)
M4 (X1M) 1.2
M4 (earth)
▪ The earth wire between the wire retainer and the terminal must be longer than
the other wires.
1-3
9.1.3 Specifications of standard wiring components
Component
Power supply cable Voltage 220~240V
Phase 1~
Frequency 50Hz
Wire type See table below (A)
Interconnection cable (indoor↔outdoor) 4-core cable 1.5mm
2
or 2.5mm
2
and applicable for 220~240V
H05RN-F (60245 IEC 57)
Recommended circuit breaker See table below (B)
Residual current device MUST comply with applicable
legislation
Model A B
3MXM40 3- core cable 2.5mm
2
H05RN-F (60245 IEC 57)
H07RN-F (60245 IEC 66)
3- core cable 4.0mm
2
H07RN-F (60245 IEC 66)
16A
2MXM68,
3MXM52,
3MXM68,
4MXM68
20A
4MXM80 3- core cable 4.0 mm
2
H07RN-F (60245 IEC 66)
25A
5MXM90 32A
