7 English
Selecting a location for installation of
the Indoor units
• The maximum allowable length of refrigerant piping, and the maximum allowable height difference between the outdoor and
indoor units, are listed below.
(The shorter the refrigerant piping, the better the performance. Connect so that the piping is as short as possible. Shortest allow-
able length per room is 3m.)
NOTE:
For the DHW generator for Multi and the Hybrid for Multi see the indoor installation manual to confirm the specific installation
requirements for the allowable length and the maximum allowable height difference.
Outdoor unit capacity class
3MXM40*
3MXM52*
3AMXM52*
3MXM68* 4MXM68* 4MXM80* 5MXM90*
Piping to each indoor unit 25 m max. 25 m max. 25 m max. 25 m max. 25 m max. 25 m max.
Total length of piping between all units 50 m max. 50 m max. 50 m max.60m max.70m max.75m max.

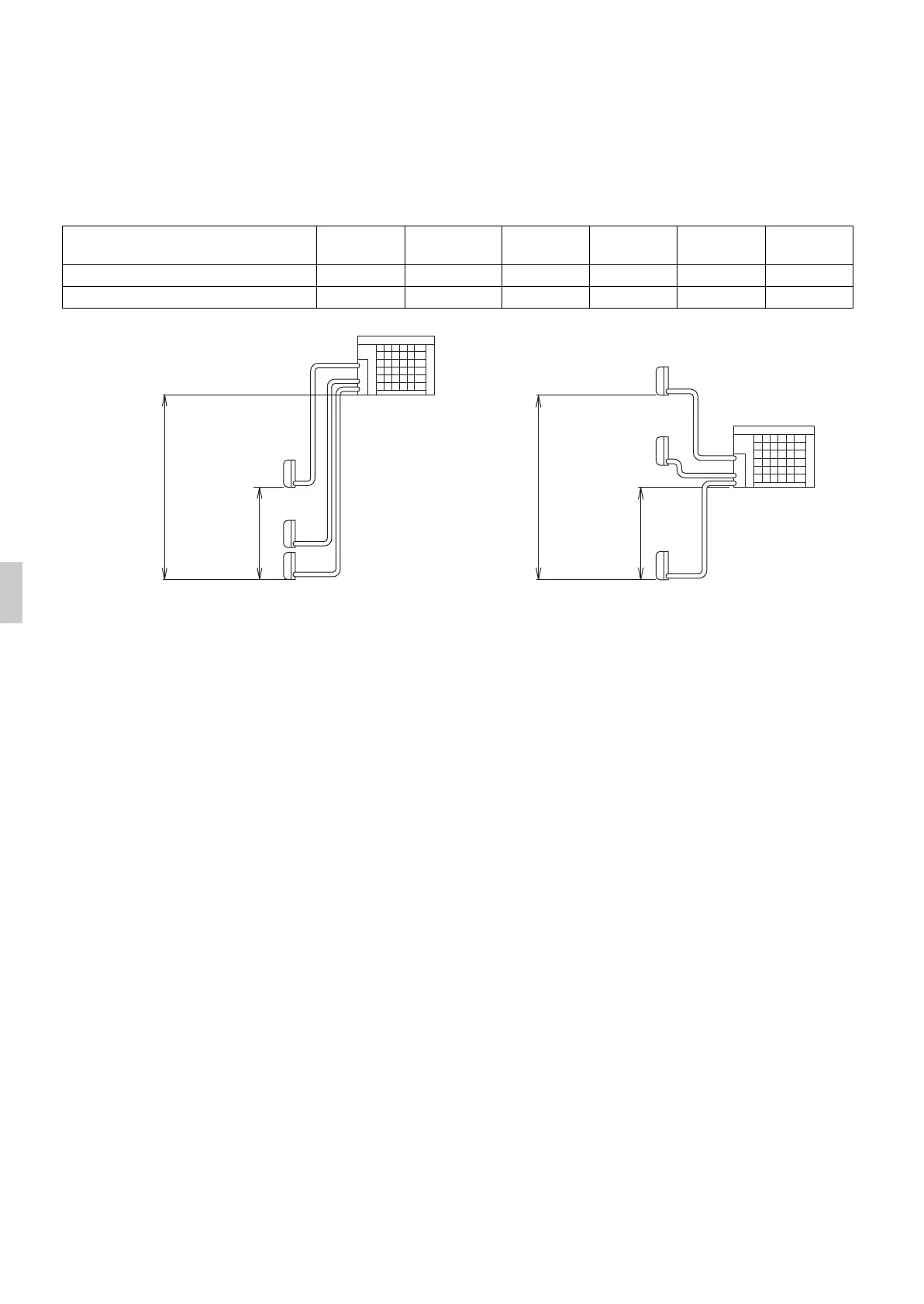

If the outdoor unit is positioned higher than the
indoor units.
If the outdoor unit is positioned otherwise.
(If lower than one or more indoor units)
Level
difference:
15m max.
Level
difference:
7.5m max.
Indoor Unit
Outdoor Unit
Level
difference:
7.5m max.
Level
difference:
15m max.
Outdoor Unit
Indoor Unit
3PEN417620-3N.book Page 7 Friday, June 21, 2019 9:50 AM
