Indoor Unit SiUS121736EA

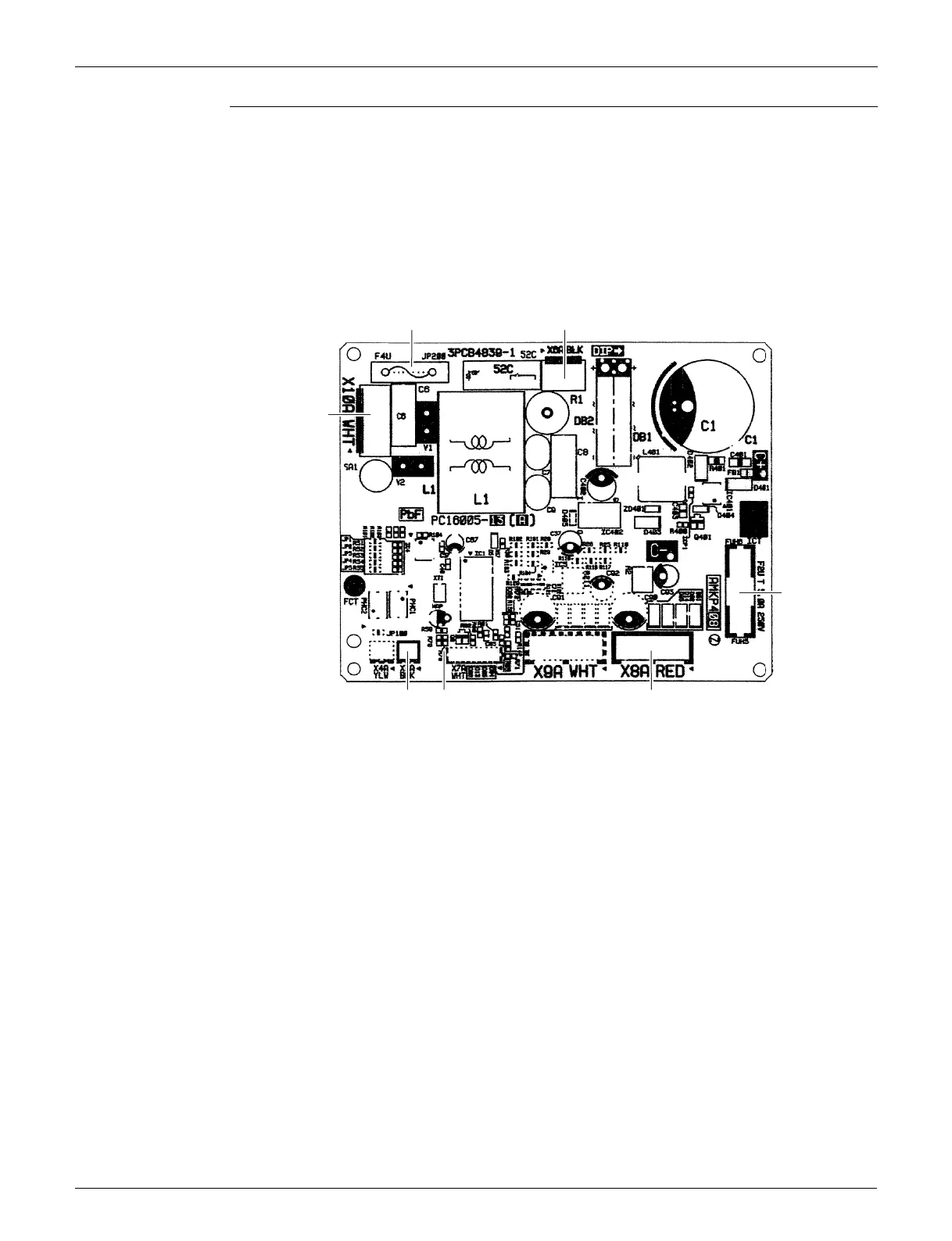

37 Printed Circuit Board Connector Wiring Diagram
Indoor Fan PCB
(A2P)
1) X3A Connector for control PCB (A1P)
2) X6A Connector for reactor
3) X8A Connector for indoor fan motor
4) X10A Connector for terminal block (for power supply)
5) F2U Fuse (5 A, 250 V)
6) F4U Fuse (6.3 A, 250 V)
7) HAP LED for service monitor (green)
2P442228-16
2P442228-17
F2U
X8AX3A
X10A
F4U
X6A
HAP
