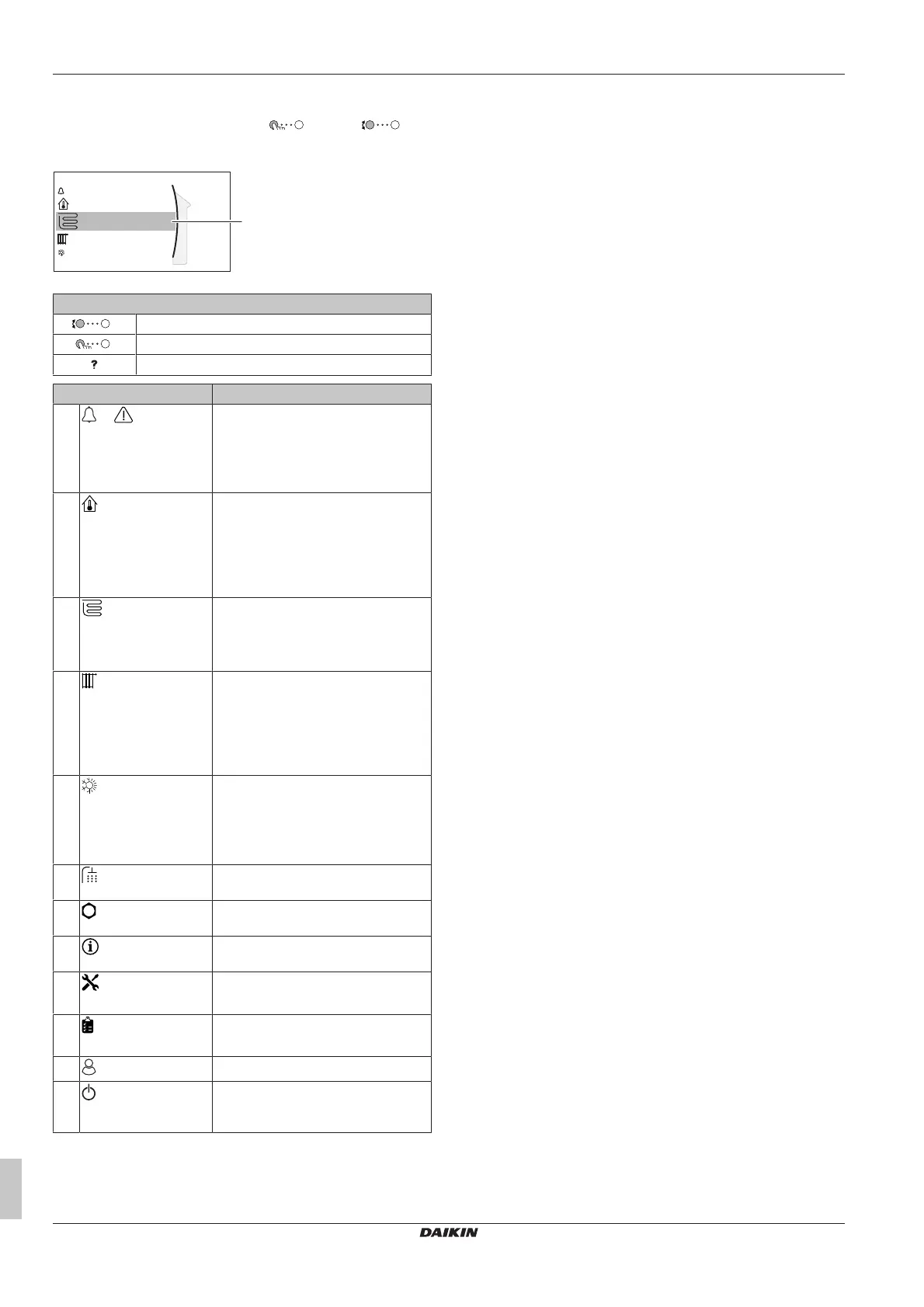

4.3.2 Main menu screen
Starting from the home screen, press ( ) or turn ( ) the
left dial to open the main menu screen. From the main menu, you
can access the different setpoint screens and submenus.
2
Main zone
Additional zone
Room
Malfunctioning
Space heating/cooling
a Selected submenu
Possible actions on this screen
Go through the list.
Enter the submenu.
Enable/disable breadcrumbs.
Submenu Description
[0]
or
Malfunctioning
Restriction: Only displayed if a
malfunction occurs.
See "7.1To display the help text in
case of a malfunction"[430] for more
information.
[1]
Room
Restriction: Only displayed if a
dedicated Human Comfort Interface
(BRC1HHDA used as room
thermostat) is controlling the indoor
unit.
Set the room temperature.
[2]
Main zone
Shows the applicable symbol for your
main zone emitter type.
Set the leaving water temperature for
the main zone.
[3]
Additional zone
Restriction: Only displayed if there
are two leaving water temperature
zones. Shows the applicable symbol
for your additional zone emitter type.
Set the leaving water temperature for
the additional zone (if present).
[4]
Space heating/
cooling
Shows the applicable symbol of your
unit.
Put the unit in heating mode or cooling
mode. You cannot change the mode
on heating only models.
[5]
Tank
Set the domestic hot water tank
temperature.
[7]
User settings
Gives access to user settings such as
holiday mode and quiet mode.
[8]
Information
Displays data and information about
the indoor unit.
[9]
Installer
settings
Restriction: Only for the installer.
Gives access to advanced settings.
[A]
Commissioning
Restriction: Only for the installer.
Perform tests and maintenance.
[B]
User profile
Change the active user profile.
[C]
Operation
Turn heating/cooling functionality and
domestic hot water preparation on or
off.
