Liquid Crystal Display
Three types of liquid crystal display (LCD) are available. The standard display is set by default. ●
Detailed and Simple displays can be selected in the main menu. ● (See page 37.)
The displayed contents of the screen vary with the operation mode of the indoor unit model. (The ●
following display will appear when the indoor unit is in Auto mode.)
Standard display
Set to
Cool
Heat
74F
70F
Auto
Cool
This function is not available

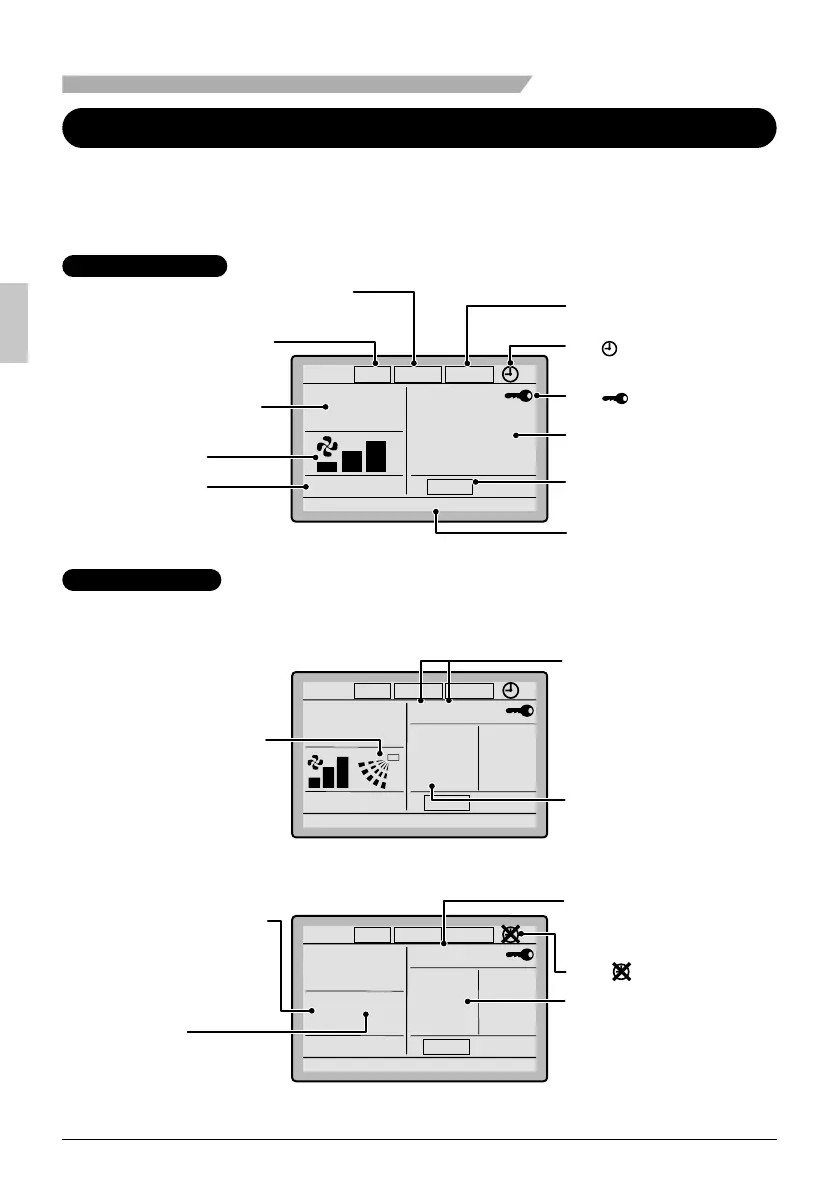

<Standard display example>
6. Ventilation
2. Fan Speed
1. Operation mode
11.Setback
7. ( ) display
3. Setpoint display
4.
Stand by for Defrost/
Hot start
5. Message
10. Changeover controlled by
the master indoor unit
9.Under centralized
control
8. ( ) display
AUTO
ERV
AIR
PURIFY
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
STANDBY
Detailed Display
The airfl ow direction, clock, and selectable item appear on the detailed 
display screen in addition to the items appearing on the standard display.
Cool
Heat
74 F
70 F
Room
Fri
11
:
03
A
Set to
74
F
Return Setting
Auto
Cool
14. Selectable Display
Item
12. Airflow Direction
(Displayed only when
the indoor unit is in
operation.)
13. Current Day/time
(12/24 hour time
display)
<Detailed display example 1>
AUTO
ERV
AIR
PURIFY
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
STANDBY
Return Setting
Auto
Cool
<Detailed display example 2>
No Airflow
Direction display
(with no airflow direction
settings)
No Fan speed display
(with no fan speed
control function)
No Selectable Display
Item display
(with no selectable
display item selected)
No Clock display
(when the clock has
not been set)
15. ( ) display
--
:
--
CENTRAL
CONTROL
MASTER
CONTROLLED
SETBACK
AUTO
ERV
AIR
PURIFY
STANDBY
Names and Functions
01_EN_3P243520-3E.indd 601_EN_3P243520-3E.indd 6 9/11/2012 4:12:37 PM9/11/2012 4:12:37 PM
