Installation and operation manual
4
BRC1H519W+K+S
Wired remote controller
4P511630-1B – 2018.03
For the user

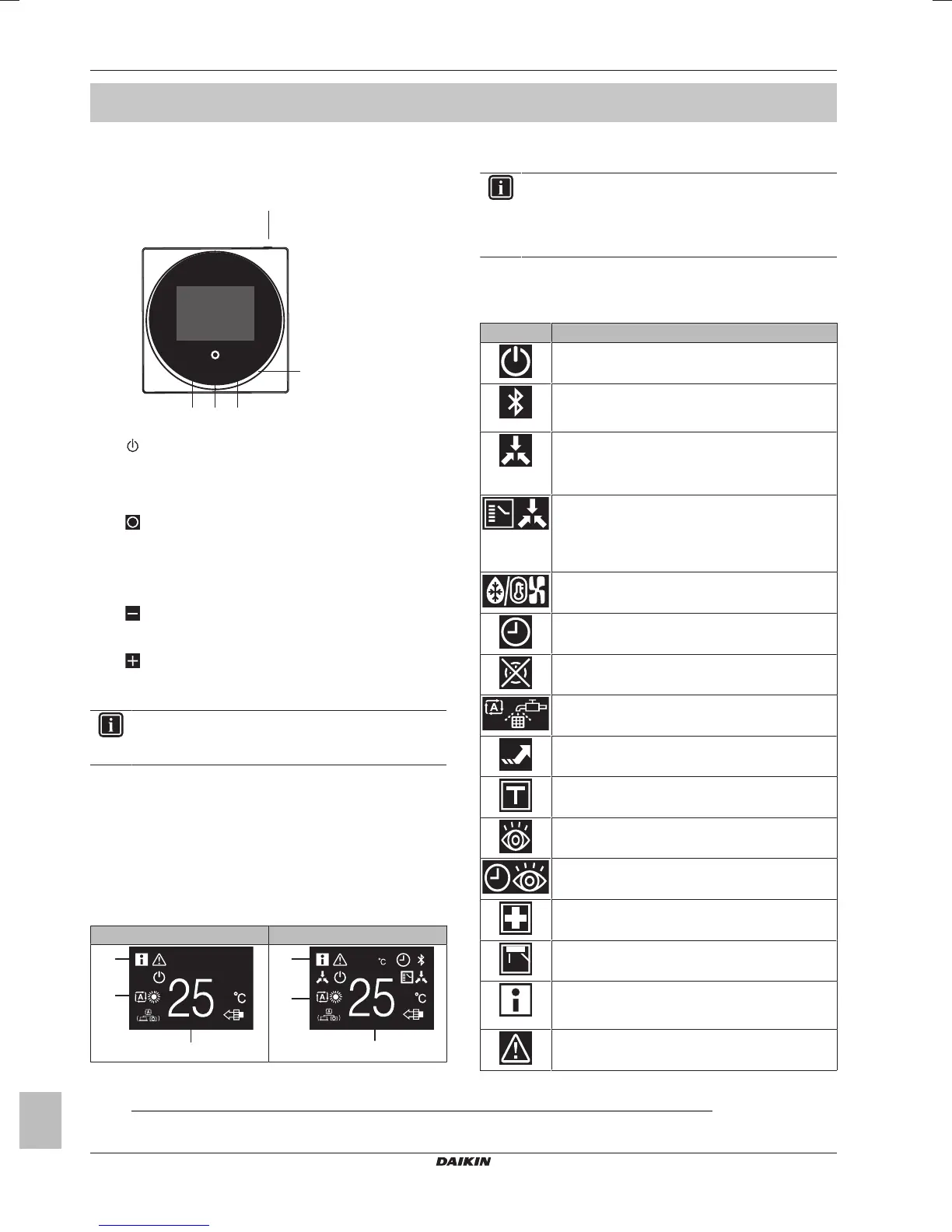

3 Buttons
+
-
c b d
e
a
a
ON/OFF
▪ When OFF, press to turn ON the system. As a result, the
status indicator (e) will turn ON too.
▪ When ON, press to turn OFF the system. As a result, the
status indicator (e) will turn OFF too.
b
ENTER/ACTIVATE /SET
▪ From the home screen, enter the main menu.
▪ From the main menu, enter one of the submenus.
▪ From their respective submenu, activate an operation/
ventilation mode.
▪ In one of the submenus, confirm a setting.
c
CYCLE/ADJUST
▪ Cycle left.
▪ Adjust a setting (default: decrease).
d
CYCLE/ADJUST
▪ Cycle right.
▪ Adjust a setting (default: increase).
INFORMATION
For a full description of the behaviour of the status
indicator, see the installer and user reference guide.
4 Home screens
Depending on installer configuration, the controller either has a
standard or a detailed home screen. In most cases, the standard
home screen gives you only the active operation mode, messages (if
any), and the setpoint temperature (in case of Cooling, Heating, or
Auto operation mode). The detailed home screen gives you all kinds
of information through status icons.
Standard Detailed
a
b
c
19
a
b
c
a Messages
b Active operation mode
c Setpoint temperature
INFORMATION
The controller is equipped with a power saving function
that causes the screen to go blank after a period of
inactivity. To make the screen light up again, press one of
the buttons.
5 Status icons
Icon Description
System operation. Indicates that the system is
operating.
Bluetooth.
1
Indicates that the controller is
communicating with a mobile device, for use with the
Daikin Control Assistant app.
Centralised control. Indicates that the system is
controlled by central control equipment (optional
accessory) and that control of the system by the
controller is limited.
Changeover under centralised control. Indicates
that the cooling/heating changeover is under
centralised control by another indoor unit, or by an
optional cool/ heat selector that is connected to the
outdoor unit.
Defrost/Hot start. Indicates that the defrost/hot start
mode is active.
Timer. Indicates that the schedule timer or OFF timer
is enabled.
Clock not set. Indicates that controller's clock is not
set.
Self-cleaning filter operation. Indicates that self-
cleaning filter operation is active.
Quick Start. Indicates that Quick Start mode is active
(Sky Air only).
Test operation. Indicates that Test Operation mode
is active (Sky Air only).
Inspection. Indicates that the indoor or outdoor unit is
being inspected.
Periodic inspection. Indicates that the indoor or
outdoor unit is being inspected.
Backup. Indicates that in the system an indoor unit is
set as backup indoor unit.
Individual airflow direction. Indicates that the
individual airflow direction setting is enabled.
Information. Indicates that the system has a
message to convey. To see the message, go to the
information screen.
Warning. Indicates that an error occurred, or that an
indoor unit component needs to be maintained.
(1)
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and use of such marks by
Daikin Europe N.V. is under license. Other trademarks and trade names are those of their respective owners.

Daikin BRC1H519W Specifications

General

Display	LCD
Color	White
Model	BRC1H519W
Brand	Daikin
Power Source	Wired
Compatibility	Daikin indoor units
Power Supply	From indoor unit
Functions	Temperature control, Fan speed, Mode, Timer
Battery Type	Not Applicable
Battery Quantity	Not Applicable
